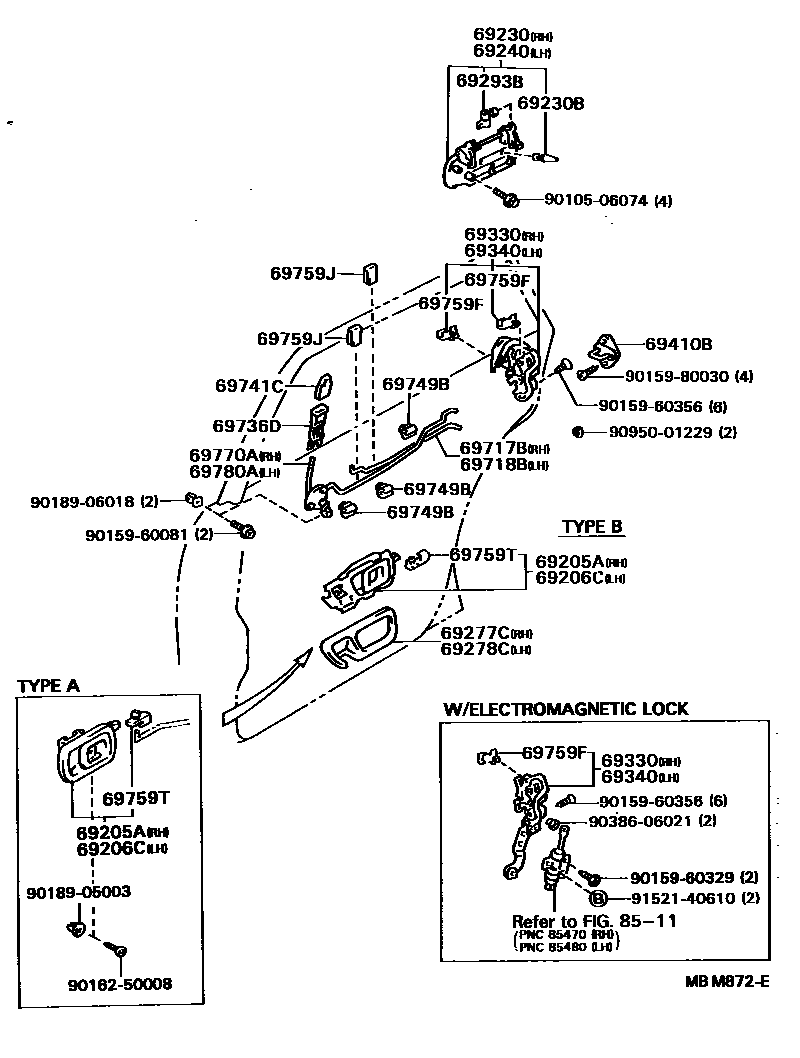

Toyota CORONA — REAR DOOR LOCK & HANDLE

0001 1 0002 1

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20040-03iAT170,CT176,ET176..DX,STD198712-199211

sub69205-20040

main69205-20040-03iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199211

GRAY,TRIM1#

sub69205-20040

main69205-20040-03iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199211

sub69205-20040

main69205-20040-04iAT175,ST171..EXG,G,GX,MX;AT170,CT170,ST170..(DX,EXS,GX,MX,X,Z)..(CBR,CI,DSL)198712-199005

sub69205-20040

main69205-20040-06iCT176198911-199211

sub69205-20040

main69205-20040-06iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,SELS,X,Z198712-199211

sub69205-20040

main69205-20040-06iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199211

SABLE,TRIM4#

sub69205-20040

main69205-20040-14iAT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199202

sub69205-20040

main69205-20040-14iAT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub69205-20040

main69205-20050-03iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

sub69205-20050

main69205-20050-03iCT176198911-199211

sub69205-20050

main69205-20050-04iAT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z198712-198911

sub69205-20050

main69205-20050-06iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

sub69205-20050

main69205-20050-06iCT176198911-199211

sub69205-20050

main69205-20050-14iAT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199202

sub69205-20050

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20040-03iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199211

GRAY,TRIM1#

sub69206-20040

main69206-20040-03iAT17#,CT17#,ET176,ST17#198712-199211

sub69206-20040

main69206-20040-03iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199211

sub69206-20040

main69206-20040-04iAT175,ST171..EXG,G,GX,MX;AT170,CT170,ST170..(DX,EXS,GX,MX,X,Z)..(CBR,CI,DSL)198712-199005

sub69206-20040

main69206-20040-06iCT176198911-199211

SABLE,TRIM4#

sub69206-20040

main69206-20040-06iCT176198911-199211

sub69206-20040

main69206-20040-06iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,SELS,X,Z198712-199211

sub69206-20040

main69206-20040-14iAT170..DX198911-199202

sub69206-20040

main69206-20040-14iAT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub69206-20040

main69206-20050-03iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

sub69206-20050

main69206-20050-03iCT176198911-199211

sub69206-20050

main69206-20050-04iAT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z198712-198911

sub69206-20050

main69206-20050-06iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

sub69206-20050

main69206-20050-06iCT176198911-199211

sub69206-20050

main69206-20050-14iAT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199202

sub69206-20050

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20140iET176;AT170,CT176..DX,STD198712-199211

main69230-20150iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199202

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iAT17#,CT17#,ET176,ST17#198712-199211

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20140iET176;AT170,CT176..DX,STD198712-199211

main69240-20150iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199202

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-20070-03iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

GRAY,TRIM1#

sub69277-20070

main69277-20070-03iCT176198911-199211

sub69277-20070

main69277-20070-04iAT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub69277-20070

main69277-20070-06iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub69277-20070

main69277-20070-06iCT176198911-199211

sub69277-20070

main69277-20070-14iAT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub69277-20070

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-20080-03iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

GRAY,TRIM1#

sub69278-20080

main69278-20080-03iCT176198911-199211

sub69278-20080

main69278-20080-04iAT17#,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub69278-20080

main69278-20080-06iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub69278-20080

main69278-20080-06iCT176198911-199211

sub69278-20080

main69278-20080-14iAT17#,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub69278-20080

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAT17#,CT17#,ET176,ST17#198712-199211

main69293-12040iAT17#,CT17#,ET176,ST17#198712-199211

69330LOCK ASSY, REAR DOOR, RH

main69330-20230iAT17#,CT170,ST170..DX,GX,STD198712-199202

main69330-20260iAT17#,CT170,ST170..GX198810-198911

main69330-20260iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main69330-20370iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198911-199202

main69330-20370iAT17#,CT170,ST170..GX199106-199202

main69330-95500iCT176,ET176198712-199211

69340LOCK ASSY, REAR DOOR, LH

main69340-20230iAT17#,CT170,ST170..DX,GX,STD198712-199202

main69340-20260iAT17#,CT170,ST170..GX198810-198911

main69340-20260iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main69340-20370iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198911-199202

main69340-20370iAT17#,CT170,ST170..GX199106-199202

main69340-95500iCT176,ET176198712-199211

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iAT17#,CT17#,ET176,ST17#198712-199211

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-20090iAT17#,CT17#,ET176,ST17#198712-199211

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-20090iAT17#,CT17#,ET176,ST17#198712-199211

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-20060iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-90K00-03iAT17#,CT17#,ET176,ST17#198712-198911

SHADOW GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-34iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198809

BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-36iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-43iAT17#,CT17#,ET176,ST17#198911-199211

GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-54iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J0iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198809-198911

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20030iAT17#,CT17#,ET176,ST17#198807-198911

LOCKING CONTROL LINK

main69749-20030iAT17#,CT17#,ET176,ST17#198712-198911

OPEN CONTROL LINK

main69749-20030iAT17#,CT17#,ET176,ST17#198911-199211

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24050iAT17#,CT17#,ET176,ST17#198712-199211

main69759-24060iAT17#,CT17#,ET176,ST17#198712-199211

69759JSILENCER, DOOR LOCK LINK

main69759-12011iAT17#,CT17#,ET176,ST17#198712-198810

OPEN CONRTROL LINK

main69759-12011iAT17#,CT17#,ET176,ST17#198810-199211

OPEN CONTROL LINK

main69759-30021iAT17#,CT17#,ET176,ST17#198712-199211

LOCKING CONTROL LINK

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iAT17#,CT17#,ET176,ST17#198712-199211

main69759-24070iAT17#,CT17#,ET176,ST17#198712-199211

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-20060iAT17#,CT17#,ET176,ST17#198712-199211

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-20060iAT17#,CT17#,ET176,ST17#198712-199211

8511

9010506074

main90105-06074

9015960081

main90159-60081

9015960329

main90159-60329

9015960356

main90159-60356

9015980030

main90159-80030

9016250008

main90162-50008

9018905003

main90189-05003

9018906018

main90189-06018

9038606021

main90386-06021

9095001229

main90950-01229

9152140610

main91521-40610

33 parts on this diagram · 2 diagrams in section
