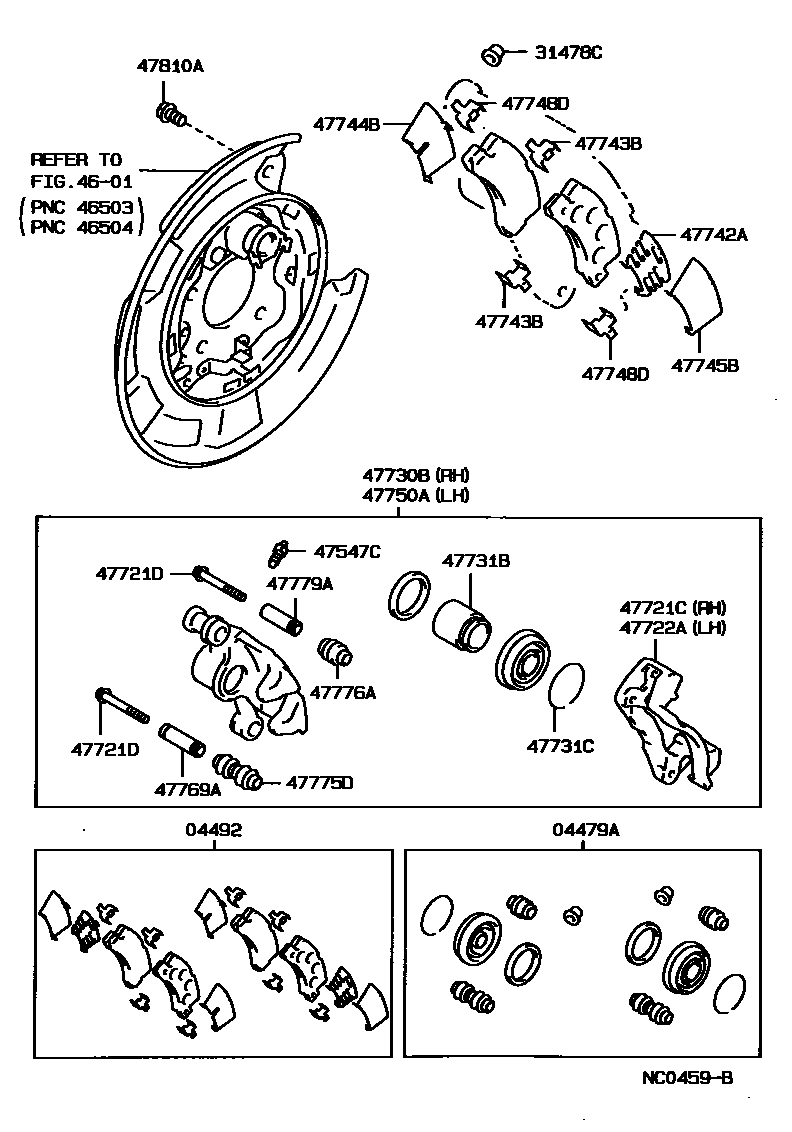

Toyota CORONA — REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20090iST171..GT,GTR198712-199202

main04479-20120iAT175198808-199202

sub04479-33040

04492PAD KIT, DISC BRAKE, REAR

main04492-20040iST171198712-198812

sub04466-33010

main04492-20050iAT175198808-199106

sub04492-20051

main04492-20060iST171198812-199106

sub04492-20150

main04492-20070iST171..GT,GTR199106-199202

sub04492-20071

main04492-32061iAT175199106-199202

sub04492-20090

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAT175,ST171..EXS,GT,GTR,GX,SELS198712-199202

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAT175,ST171198712-199202

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20130iST171198712-199202

main47721-32040iAT175198808-199106

sub47721-33070

sub47715-33020

main47721-32130iAT175199106-199202

sub47721-33070

sub47715-33020

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08133iAT175198808-199106

main90109-08098iST171198712-199202

main90119-08431iST171..GT,GTR198712-199202

main90119-08547iAT175198808-199106

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20130iST171198712-199202

main47721-32040iAT175198808-199106

sub47721-33070

sub47715-33020

main47721-32130iAT175199106-199202

sub47721-33070

sub47715-33020

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20230iST171198712-199202

main47730-20260iAT175198808-199106

sub47730-33100

main47730-32150iAT175199106-199202

sub47730-33100

47731BPISTON, REAR DISC BRAKE

main47731-20110iST171198712-199202

main47731-20130iAT175198808-199202

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43003iAT175198808-199106

main90522-45001iST171198712-199202

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32031iAT175,ST171198712-199106

main47742-32090iAT175,ST171..EXS,GT,GTR,GX,SELS199106-199202

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12060iST171198712-199202

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-12070iST171198712-198805

sub47744-12071

main47744-12071iST171198805-199202

sub47744-12080

main47744-32021iAT175198808-199202

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-32030iAT175,ST171198712-199106

main47745-32090iAT175,ST171..EXS,GT,GTR,GX,SELS199106-199202

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-12110iST171198712-199202

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20220iST171..GT,GTR198712-199202

main47750-20260iAT175198808-199106

sub47750-33100

main47750-32150iAT175199106-199202

sub47750-33100

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iST171198712-199202

main47769-32020iAT175198808-199106

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iST171198712-199202

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010iST171..GT,GTR198712-199202

sub47776-12020

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010iST171..GT,GTR198712-199202

main47779-32020iAT175198808-199106

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iST171198712-199202

main90119-10445iAT175198808-199202

22 parts on this diagram · 3 diagrams in section
