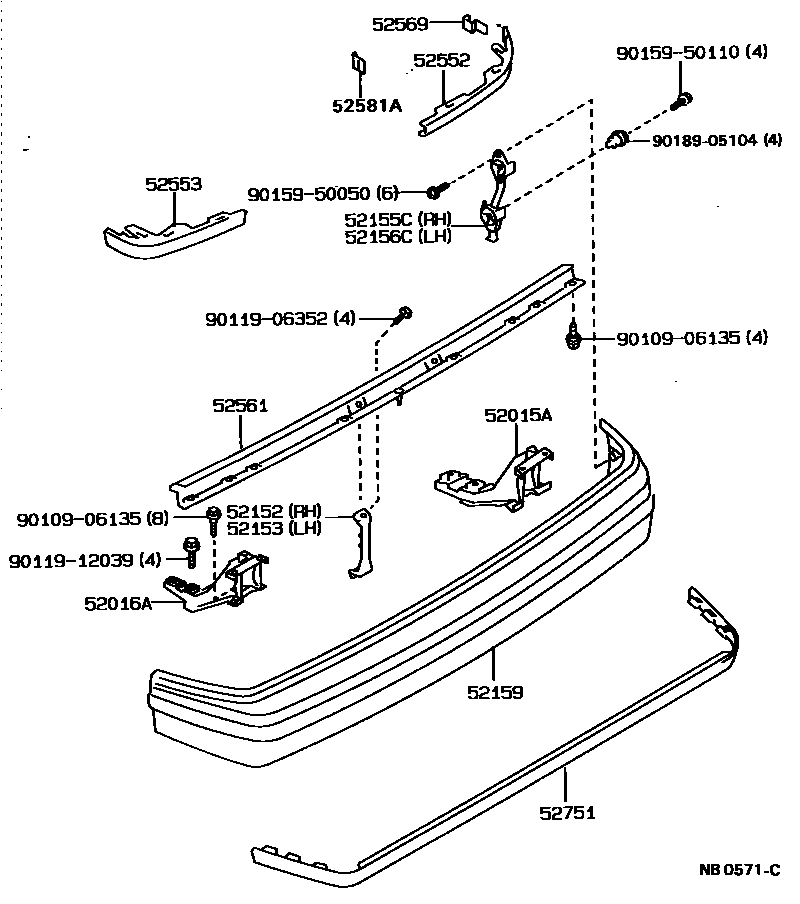

Toyota CORONA — REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-20190iAT170,CT170,ST17#198712-198911

main52015-20220iAT175198808-198911

main52015-20260iAT170,CT170,ST17#198911-199202

main52015-20260iAT175..SELS199005-199202

main52015-20270iAT175198911-199202

main52181-95503iCT176,ET176198712-199211

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-20070iAT170,CT170,ST17#198712-198911

main52016-20100iAT175198808-198911

main52016-20110iAT170,CT170,ST17#198911-199202

main52016-20110iAT175..SELS199005-199202

main52016-20120iAT175198911-199202

main52182-95501iCT176,ET176198712-199211

52152BAR, REAR BUMPER, RH

main52152-20150iAT17#,CT170,ST17#198712-199202

52153BAR, REAR BUMPER, LH

main52152-20150iAT17#,CT170,ST17#198712-199202

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20180iAT17#,CT170,ST17#198712-198911

sub52155-20260

main52155-20260iAT17#,CT170,ST17#198911-199202

main52155-95500iCT176,ET176198712-199211

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52155-20180iAT17#,CT170,ST17#198712-198911

sub52155-20260

main52155-20260iAT17#,CT170,ST17#198911-199202

main52155-95500iCT176,ET176198712-199211

52159COVER, REAR BUMPER

main52159-20420-02iST17#..LB198712-198801

sub52159-20430

main52159-20420-02iAT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198712-198810

SUPER RED 2,3E5

sub52159-20430

main52159-20420-03iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198912

GRAY M,167

sub52159-20430

main52159-20420-03iST17#..LB198712-198911

sub52159-20430

main52159-20420-04iST17#..LB198712-198912

LIGHT BLUE M,8E8

sub52159-20430

main52159-20420-04iST17#..LB198712-198801

sub52159-20430

main52159-20420-05iCT170..EXS,GX;AT175,ST171..EXG,G,GX198712-198912

MEDIUM BEIGE M,4H6

sub52159-20430

main52159-20420-05iST17#..G,X,Z198712-198911

sub52159-20430

main52159-20420-07iAT175,ST171..EXG,G,GT,GTR,GX,MX,SXR;AT170,CT170,ST170..(EXS,GX,MX,X,Z)..(CBR,CI,DSL)198810-198912

GREEN M,6J7

sub52159-20430

main52159-20420-08iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

SUPER WHITE 2,040

sub52159-20430

main52159-20420-12iAT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198712-198801

sub52159-20430

main52159-20420-12iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198912

RED MAICA,3H4

sub52159-20430

main52159-20420-13iAT175,ST171..EXG,G,GT,GTR,GX,MX,SXR;AT170,CT170,ST170..(EXS,GX,MX,X,Z)..(CBR,CI,DSL)198810-198912

DARK GRAY MICA,175

sub52159-20430

main52159-20420-14iST17#..LB198712-198912

DARK BLUE MAICA M,8E9

sub52159-20430

main52159-20420-14iAT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198712-198801

sub52159-20430

main52159-20430iAT175..GX;AT170,CT170,ST17#198712-198911

main52159-20440-02iST17#..LB198712-198801

SUPER RED 2,3E5

sub52159-20420

main52159-20440-03iST170..EXS198812-198911

sub52159-20420

main52159-20440-03iST17#..LB198712-198911

GRAY M,167

sub52159-20420

main52159-20440-04iST17#..LB198712-198801

LIGHT BLUE M,8E8

sub52159-20420

main52159-20440-05iST17#..G,X,Z198712-198911

MEDIUM BEIGE M,4H6

sub52159-20420

main52159-20440-08iST17#..LB198712-198911

SUPER WHITE 2,TRIM1#&040

sub52159-20420

main52159-20440-12iST17#..LB198712-198801

RED MAICA,3H4

sub52159-20420

main52159-20440-14iST17#..LB198712-198801

DARK BLUE MAICA M,8E9

sub52159-20420

main52159-20440-18iST17#..G,X,Z198712-198911

SUPER WHITE 2,TRIM4#&040

sub52159-20420

main52159-20440-18iST170..EXS198812-198911

sub52159-20420

main52159-20440-24iST170..X198812-198911

sub52159-20420

main52159-20620-02iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

RED MICA,3H4

sub52159-20630

main52159-20620-03iST17#..LB198911-199202

sub52159-20630

main52159-20620-03iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

DARK GRAY M,175

sub52159-20630

main52159-20620-04iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

LIGHT BLUE M M,8G2

sub52159-20630

main52159-20620-07iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

GRAYISH GREEN M,6K6

sub52159-20630

main52159-20620-07iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-198912

sub52159-20630

main52159-20620-08iST17#..LB198911-199202

sub52159-20630

main52159-20620-08iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

SUPER WHITE 2,040

sub52159-20630

main52159-20620-12iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

DARK ROSE M,3J1

sub52159-20630

main52159-20620-13iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

BLUISH GRAY M,182

sub52159-20630

main52159-20620-13iST17#..LB198911-199202

sub52159-20630

main52159-20620-14iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-198912

sub52159-20630

main52159-20620-14iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

DARK BLUE M M,8G5

sub52159-20630

main52159-20630iAT170,CT170,ST17#198911-199202

main52159-20640-02iCT170,ST17#..EXG,EXS,GTR,SXR198911-198912

sub52159-20620

main52159-20640-03iCT170,ST170..EXS,SELS;AT17#,ST171..EXG,GTR,SELS,SXR198911-199202

sub52159-20620

main52159-20640-03iST17#..LB198911-199202

DARK GRAY M,175

sub52159-20620

main52159-20640-04iCT170,ST17#..EXG,EXS,GTR,SXR198911-198912

sub52159-20620

main52159-20640-07iST17#..LB198911-198912

sub52159-20620

main52159-20640-07iST17#..LB198911-198912

GRAYISH GREEN M,6K6

sub52159-20620

main52159-20640-08iCT170,ST17#..EXG,EXS,GTR,SXR198911-199202

sub52159-20620

main52159-20640-08iST17#..LB198911-199202

SUPER WHITE 2,040

sub52159-20620

main52159-20640-12iCT170,ST17#..EXG,EXS,GTR,SXR198911-198912

sub52159-20620

main52159-20640-13iCT170,ST170..EXS,SELS;AT17#,ST171..EXG,GTR,SELS,SXR198911-199202

sub52159-20620

main52159-20640-13iST17#..LB198911-199202

BLUISH GRAY M,182

sub52159-20620

main52159-20640-14iCT170,ST17#..EXG,EXS,GTR,SXR198911-198912

sub52159-20620

main52159-20640-14iST17#..LB198911-198912

DARK BLUE M M,8G5

sub52159-20620

main52159-94700iST171..4FC..EXG199005-199007

main52159-95502iCT176,ET176198712-199211

52552FILLER, REAR BUMPER, RH

main52552-20010iAT17#,CT170,ST17#198712-199202

52553FILLER, REAR BUMPER, LH

main52553-20010iAT17#,CT170,ST17#198712-199202

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-20100iAT17#,CT170,ST17#198712-198911

main52561-20170iAT17#,CT170,ST17#198911-199202

main52561-95501iCT176,ET176198712-199211

52569PAD, REAR BUMPER FILLER

main52569-20010iAT17#,CT170,ST17#198712-199202

52581APROTECTOR, REAR BUMPER FILLER

main52581-20010iAT17#,CT170,ST17#198712-199202

52751MOULDING, REAR BUMPER

main52751-20190iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main52751-20200iAT170..DX,STD198712-198911

main52751-20230iAT17#,CT170,ST17#198911-199202

9010906135

main90109-06135

9011906352

main90119-06352

9011912039

main90119-12039

9015950050

main90159-50050

9015950110

main90159-50110

9018905104

main90189-05104

19 parts on this diagram · 3 diagrams in section
