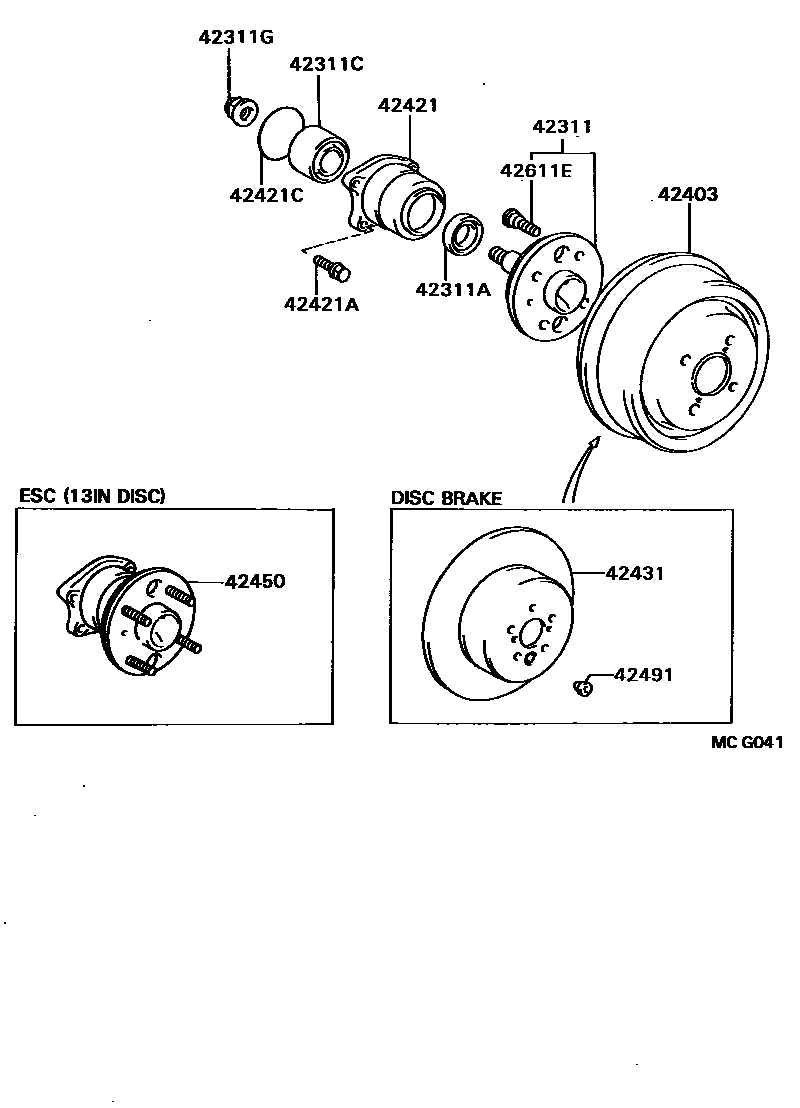

Toyota CORONA — REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311SHAFT, REAR AXLE

main42301-20070iAT175198808-199202

main42301-20080iAT170,CT170,ST170198712-199202

sub42410-20130

main42301-32020iST171198712-199202

sub42410-32050

main42301-32031iST171198712-199202

sub42410-20140

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iAT170,CT170,ST17#198712-199202

main90311-48001iCT176,ET176198712-199211

main90311-52005iAT175198808-199202

main90311-56007iAT175198808-199202

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iAT170,CT170,ST17#198712-199202

main90369-38003iAT175198808-199202

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19001iAT175198808-199101

main90179-20003iAT170,CT170,ST170198712-198809

main90179-20017iST171198807-199202

main90179-22020iAT175199101-199202

42403DRUM SUB-ASSY, REAR BRAKE

main42403-20040iCT176,ET176198712-199211

main42431-20080iAT170,CT170,ST170198712-199202

main42431-32020iST171..EXG,G,SXR198712-199202

42421CASE, REAR AXLE BEARING

main42421-20020iAT170,CT170,ST17#198712-199202

sub42409-20010

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iAT170,CT170,ST17#198712-199202

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iAT170,CT170,ST17#198712-199202

sub90301-63006

42431DISC, REAR

main42431-20090iST171..GT,GTR198712-199202

sub42431-20160

main42431-20100iAT175198808-199202

42450HUB & BEARING ASSY, REAR AXLE

main42450-20010iST170..EFI;AT170..GX..EFI;AT170..EXS,SELS;ST170..(EXS,X)..CI198808-199202

main42450-20030iST171..EXG,G,SXR199005-199202

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iAT175,ST171198712-199202

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iAT175,ST171198712-199211

12 parts on this diagram · 4 diagrams in section
