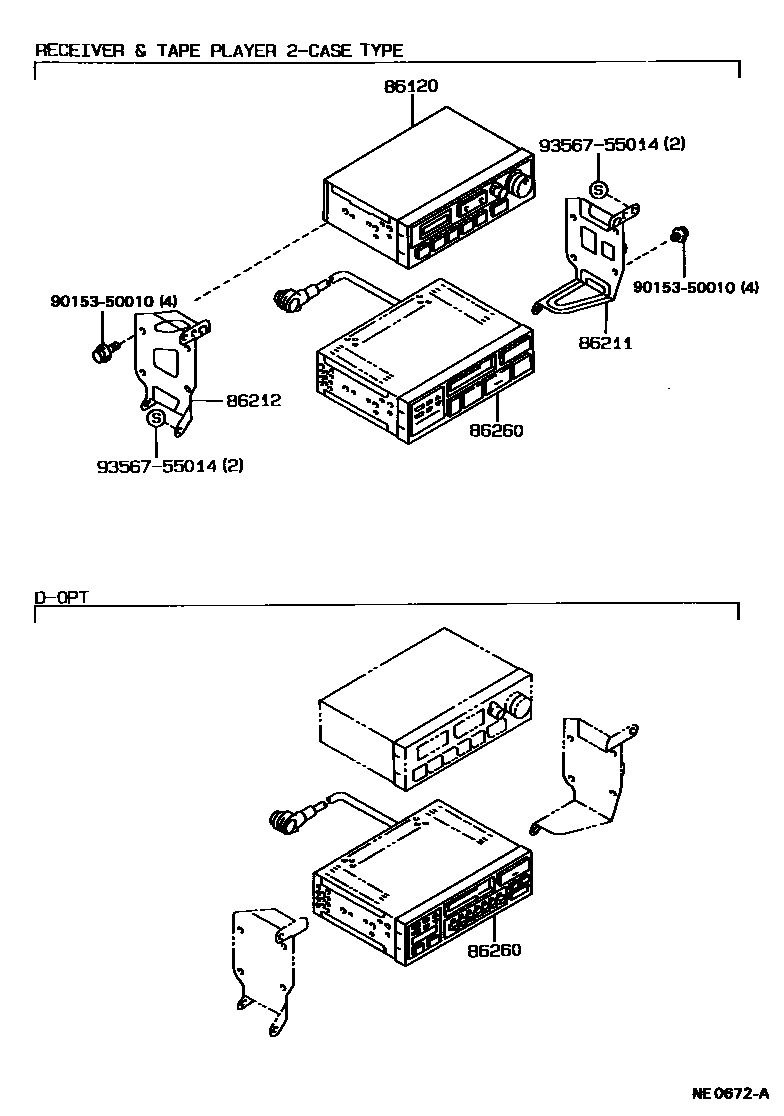

Toyota CORONA — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-16530iET176;AT170,CT176..DX198712-199211

sub86120-35080

sub86120-35110

sub86120-37010

main86120-20640iAT175,CT170,ST170..EXS,MX,X,Z;AT170,ST171..EXG,EXS,G,GT,GTR,SXR198712-198911

AM/FM MPX ETR W/CASSETTE,*AF,1-DIN

main86120-20650iAT175..GX198712-198911

main86120-20660iCT170,ST170..EXS,X198712-198911

AM/FM MPX ETR

main86120-20700iST171198712-198911

AM/FM MPX ETR W/CASSETTE,2-DIN

main86120-20710iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

AM/FM MPX ETR W/CASSETTE,*AF,2-DIN

main86120-2B010iST171..4FC..EXG199005-199007

main86120-2B010iAT17#..EXS,GX,SELS;CT170,ST170..GX,SELS,Z198911-199202

main86120-2B020iCT170,ST170..EXS,X198911-199202

main86120-2B030iST171198911-199202

main86120-2B140iAT17#,CT170,ST17#..EXG,EXS,GTR,SELS,SXR198911-199202

AM/FM MPX ETR W/CASSETTE,*AF,2-DIN

main86120-2B220iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198911-199202

AM/FM MPX ETR W/CASSETTE & CD PLAYER,2-DIN

main86120-2B240iST17#..LB198911-199202

AM/FM MPX ETR W/CASSETTE,*AF,2-DIN

86211BRACKET, RADIO, NO.1

main86211-20230iAT17#,CT17#,ET176,ST17#198712-199211

86212BRACKET, RADIO, NO.2

main86212-20220iAT17#,CT17#,ET176,ST17#198712-199211

86260TAPE PLAYER ASSY

main86260-19145iCT170..EXS,GX;ST170..GX,MX,Z;AT170,CT176,ET176198712-198911

2-SPEAKER

main86260-19145iAT17#,CT17#,ET176,ST170..DX,GX,STD198911-199211

W(DOLBY)

main86260-19155iCT170..EXS,GX;ST170..GX,MX,Z;AT170,CT176,ET176198712-198911

main86260-19155iAT17#,CT17#,ET176,ST170..DX,GX,STD198911-199211

W(DOLBY,HI POWER)

main86260-19165iAT17#,CT17#,ET176,ST170..DX,GX,STD198911-199211

W(EQUALIZER,DOLBY)

main86260-19165iCT170..EXS,GX;ST170..GX,MX,Z;AT170,CT176,ET176198712-198911

4-SPEAKER,W/*GE

main86260-19175iET176..STD198911-199211

main86260-19175iCT170..EXS,GX;ST170..GX,MX,Z;AT170,CT176,ET176198712-198911

2-SPEAKER,W/FM TUNER

main86260-20141iST170..EXS,X198712-198911

sub86260-60010

main86260-20151iST170..EXS,X198712-198911

W/*GE

9015350010

main90153-50010

9356755014

main93567-55014

6 parts on this diagram · 3 diagrams in section
