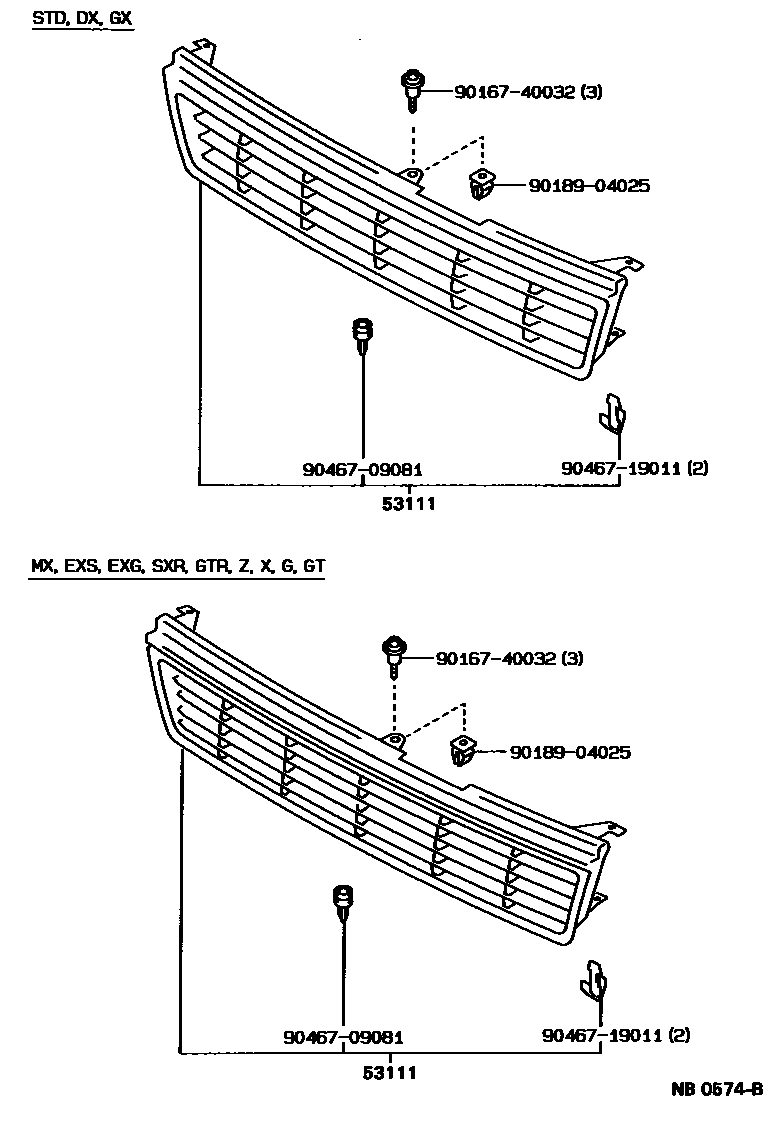

Toyota CORONA — RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53101-20280iAT17#,CT170,ST170..GX198906-198911

main53101-20280iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main53101-20290iCT176..5F198911-199211

main53101-20290iET176..GX;AT17#,CT170,ST170..DX,GX,STD198712-198911

main53101-20310iCT176,ET176..DX,STD198712-199211

sub53101-20290

main53101-20400iAT17#,CT170,ST17#198911-199202

9016740032

main90167-40032

9018904025

main90189-04025

9046709081

main90467-09081

9046719011

main90467-19011

5 parts on this diagram · 2 diagrams in section
