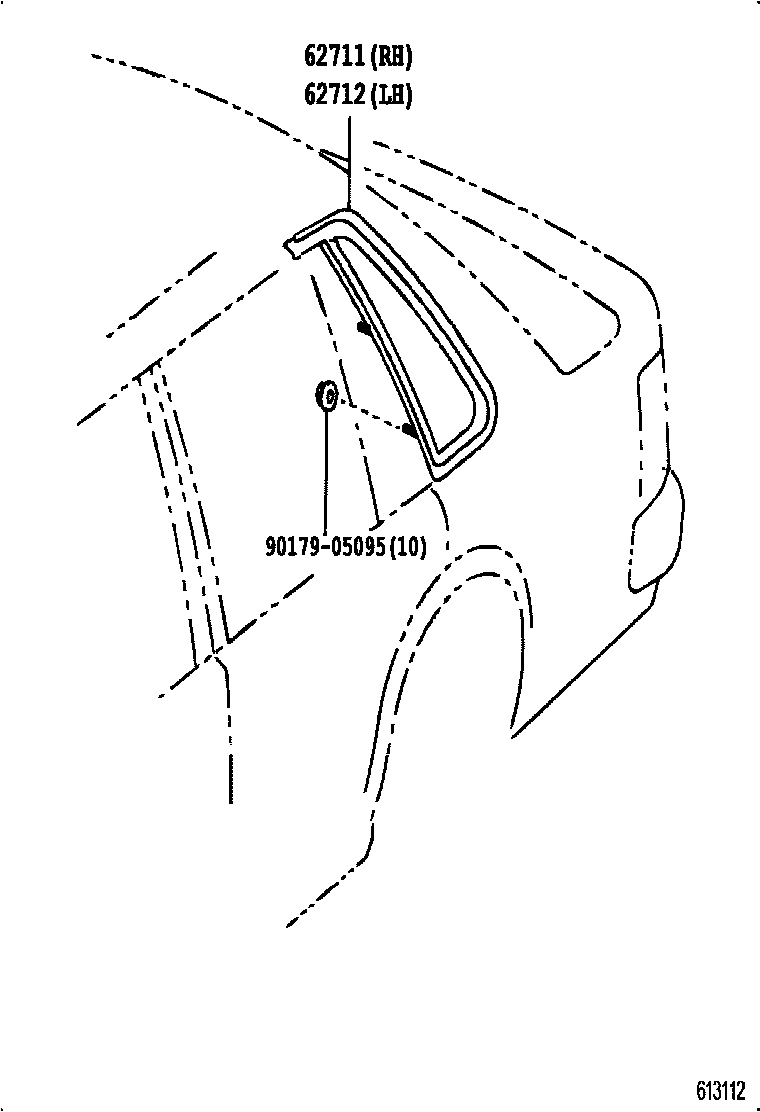

Toyota CORONA — QUARTER WINDOW

0001 1 0002 1

62711GLASS, QUARTER WINDOW, RH

main62710-20110iST17#..G,X,Z198712-199202

main62710-20130iST17#..G,X,Z198712-199202

main62710-20140iST171..GT198712-199202

main62710-20160iST17#..G,X,Z198905-199202

main62710-20170iST17#..G,X,Z198905-199202

main62710-20180iST171..GT198905-199202

main62711-95501iCT176,ET176198712-199211

main62711-95503iCT176,ET176..MTM..DX198712-199211

62712GLASS, QUARTER WINDOW, LH

main62712-95501iCT176,ET176198712-199211

sub62712-95502

main62712-95503iCT176,ET176..MTM..DX198712-199211

main62720-20110iST17#..G,X,Z198712-199202

main62720-20130iST17#..G,X,Z198712-199202

main62720-20140iST171..GT198712-199202

main62720-20160iST17#..G,X,Z198905-199202

main62720-20170iST17#..G,X,Z198905-199202

main62720-20180iST17#..G,X,Z198905-199202

9017905095

main90179-05095

3 parts on this diagram · 2 diagrams in section
