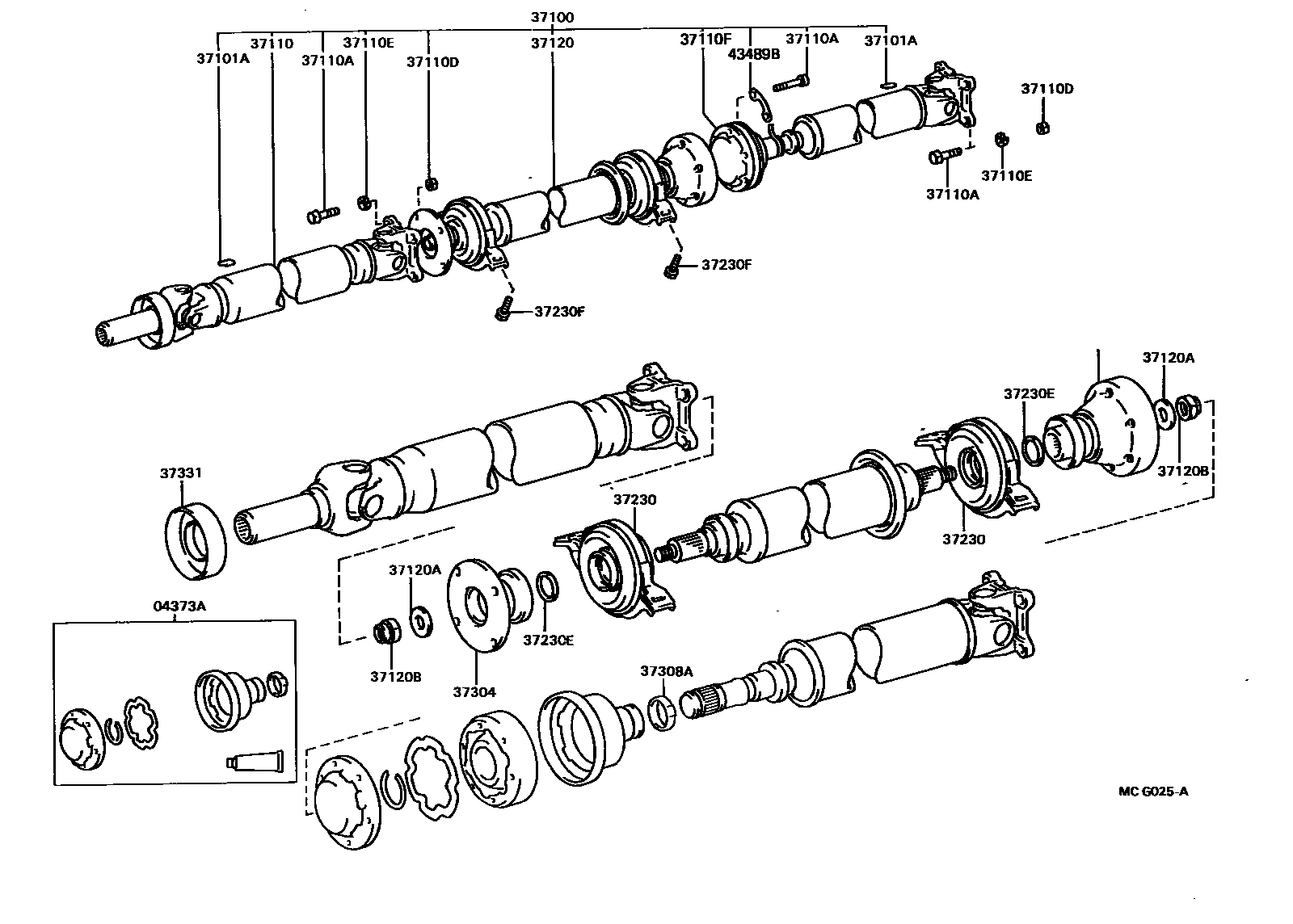

Toyota CORONA — PROPELLER SHAFT & UNIVERSAL JOINT

04373ABOOT KIT, UNIVERSAL

main04373-12010iAT175198808-199202

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-20300iAT175198808-199202

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iAT175198808-199202

main90937-01147iAT175198808-199202

main90937-01148iAT175198808-199202

main90937-01149iAT175198808-199202

main90937-01150iAT175198808-199202

main90937-01151iAT175198808-199202

main90937-01152iAT175198808-199202

37110SHAFT ASSY, PROPELLER

main37110-20370iAT175198808-199202

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085iAT175198808-199202

main90110-08016iAT175198808-199202

sub90110-08036

37110DNUT (FOR PROPELLER SHAFT)

main90179-10059iAT175198808-199202

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iAT175198808-199202

sub90560-10H00

37110FSHAFT ASSY, PROPELLER, REAR

main37110-20390iAT175198808-199202

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-20230iAT175198808-199202

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iAT175198808-199202

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iAT175198808-199202

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-20101iAT175198901-199012

sub37230-20102

main37230-20102iAT175199012-199202

main37230-20110iAT175198808-198901

sub37230-20101

37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)

main90201-25005iAT175198808-199202

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10441iAT175198808-199202

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-20010iAT175198808-199202

37308ACLAMP (FOR UNIVERSAL JOINT COVER)

main90949-01431iAT175198808-199202

37331COVER, SLIDING SHAFT DUST

main37331-30010iAT175198808-199202

43489BWASHER, CONSTANT VELOCITY UNIVERSAL JOINT

main43489-12010iAT175198808-199202

sub43489-20030

18 parts on this diagram · 1 diagram in section
