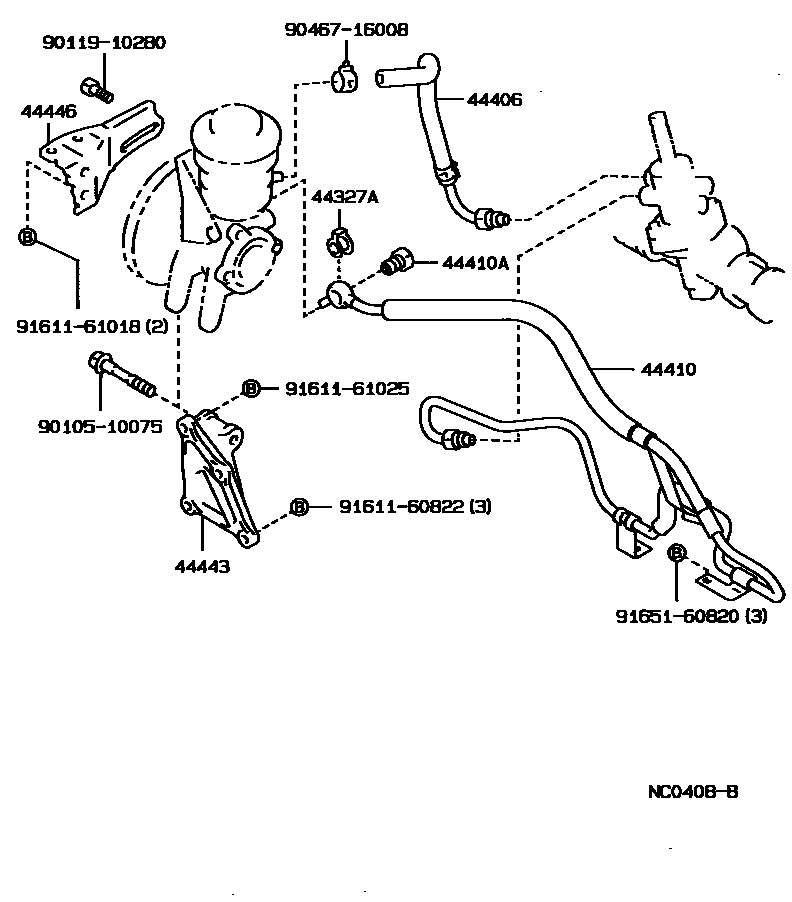

Toyota CORONA — POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCT176,ET176..3FC,4F,5F;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198712-199211

44406TUBE SUB-ASSY, RETURN

main44406-20090iAT170..EXS,GX,MX,SELS198712-199202

main44406-20140iST17#198712-199202

main44406-20150iST171..EXG,G,SXR199005-199202

main44406-20150iST170..EFI;ST170..(EXS,X)..CI198712-199104

main44406-20150iST170..EFI;ST170..(EXS,X)..CI198712-199005

main44406-20220iAT175198808-199202

44410TUBE ASSY, PRESSURE FEED

main44410-20380iAT170..EXS,GX,MX,SELS198712-199012

sub44410-20530

main44410-20381iAT170..EXS,GX,SELS199012-199202

sub44410-20531

main44410-20400iCT17#198712-198911

sub44410-20650

main44410-20430iST17#198712-199202

sub44410-20520

main44410-20450iET176198712-198803

main44410-20451iET176198803-199211

main44410-20480iAT175198808-198911

sub44410-20640

main44410-20640iAT175198911-199010

main44410-20641iAT175199012-199202

main44410-20650iCT17#198911-199211

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iCT170..4FC199007-199211

main90401-16008iCT176,ET176;AT17#,CT170..EXS,GX,MX,SELS198712-199007

44443BRACKET, PUMP

main44443-12050iAT17#..EXS,GX,MX,SELS198712-199202

main44443-13010iET176198712-199211

main44443-20050iST17#..EFI198712-199202

main44443-20060iST170198712-198911

sub44443-20050

44446STRUT, ADJUSTING

main44446-12040iAT17#..EXS,GX,MX,SELS198712-199202

main44446-12050iET176198712-199211

9010510075

main90105-10075

9011910280

main90119-10280

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160820

main91651-60820

13 parts on this diagram · 5 diagrams in section
