Toyota CORONA — PARTIAL ENGINE ASSEMBLY

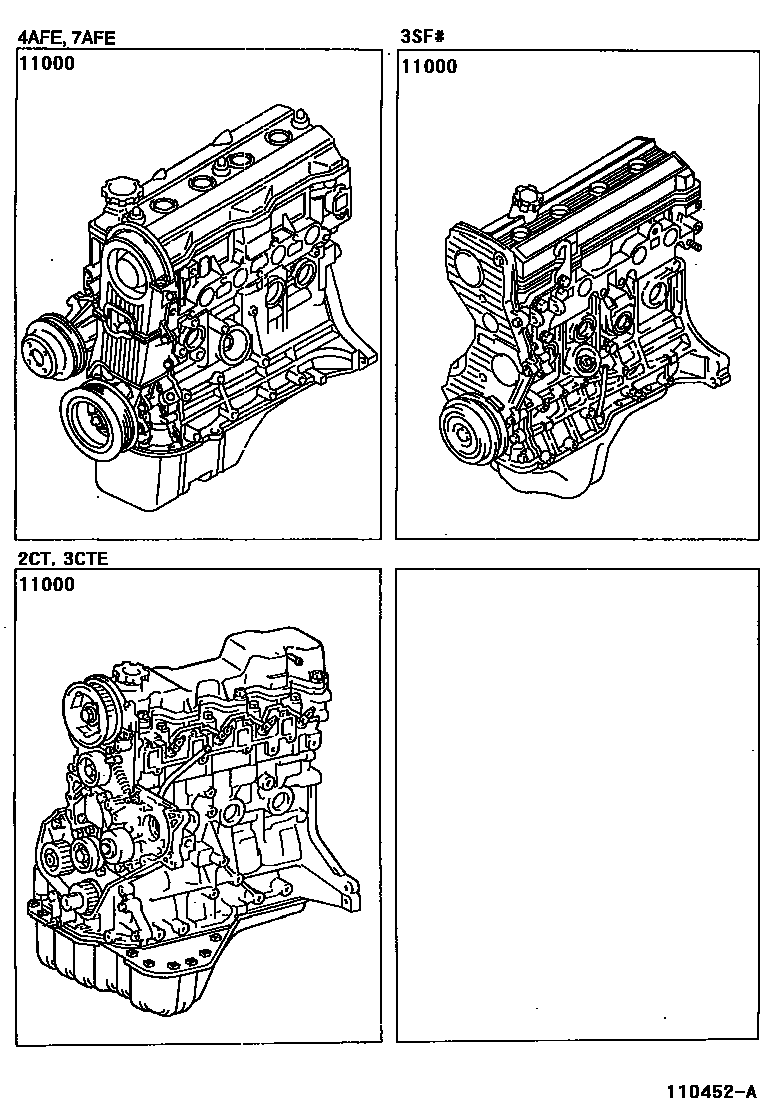

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-1A490i199601
main19000-1A500i199601
main19000-6A010i199601-199712
sub19000-6A011
sub90105-16064
sub90560-16025
main19000-6A020i199601-199712
sub19000-6A021
sub90105-16064
sub90560-16025
main19000-6A170i199712-199808
sub90105-16064
sub90560-16025
main19000-6A171i199808
main19000-6A180i199712-199808
sub90105-16064
sub90560-16025
main19000-6A181i199808
main19000-74890i199601-199712
main19000-7A010i199601-199712
main19000-7A190i199612-199805
main19000-7A191i199805-199806
main19000-7A250i199712
main19000-7A480i199808
main19000-7A520i199806-199808

1 parts on this diagram · 1 diagram in section
