Toyota CORONA — PARTIAL ENGINE ASSEMBLY

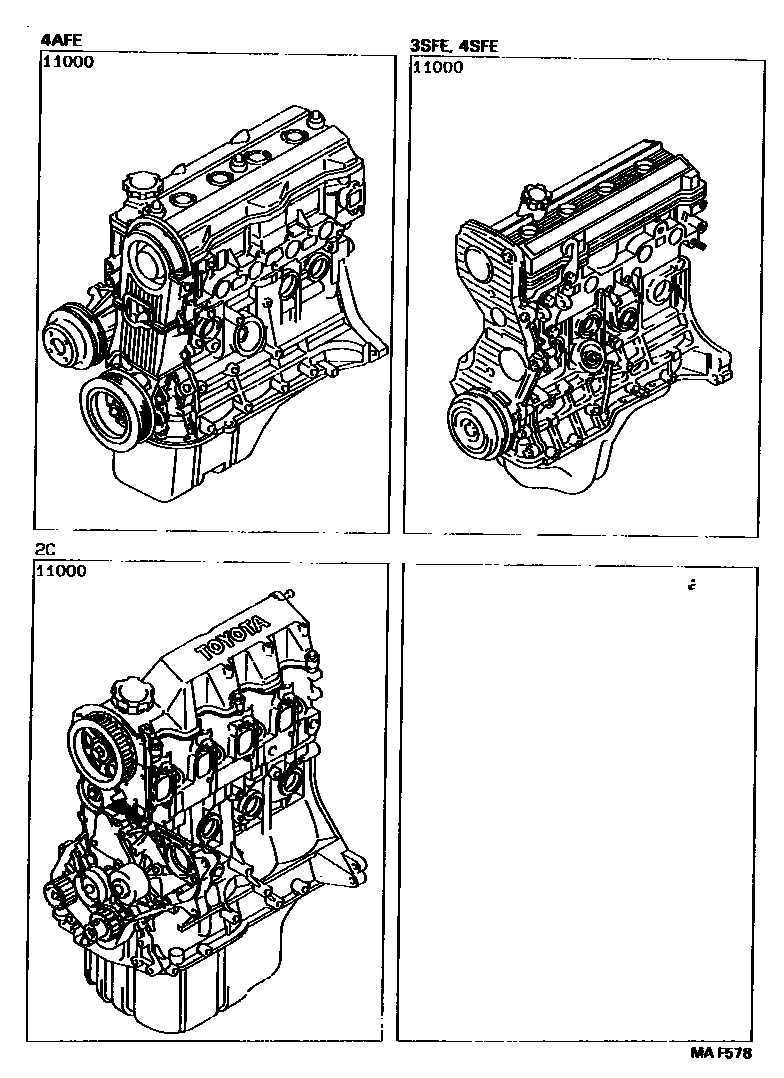

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-1A090i199402-199601
main19000-1A140i199202-199402
main19000-64670i199202-199305
sub19000-64671
sub90105-16064
sub90560-16025
main19000-64720i199208-199504
main19000-64721i199504-199601
sub19000-64722
sub90105-16064
sub90560-16025
main19000-64750i199211-199302
main19000-64770i199302-199305
main19000-64771i199504-199601
sub19000-64772
sub90105-16064
sub90560-16025
main19000-74370i199202-199402
main19000-74380i199202-199402
main19000-74480i199202-199402
main19000-74730i199402-199601
main19000-74740i199402-199601
main19000-74750i199402-199601

1 parts on this diagram · 1 diagram in section
