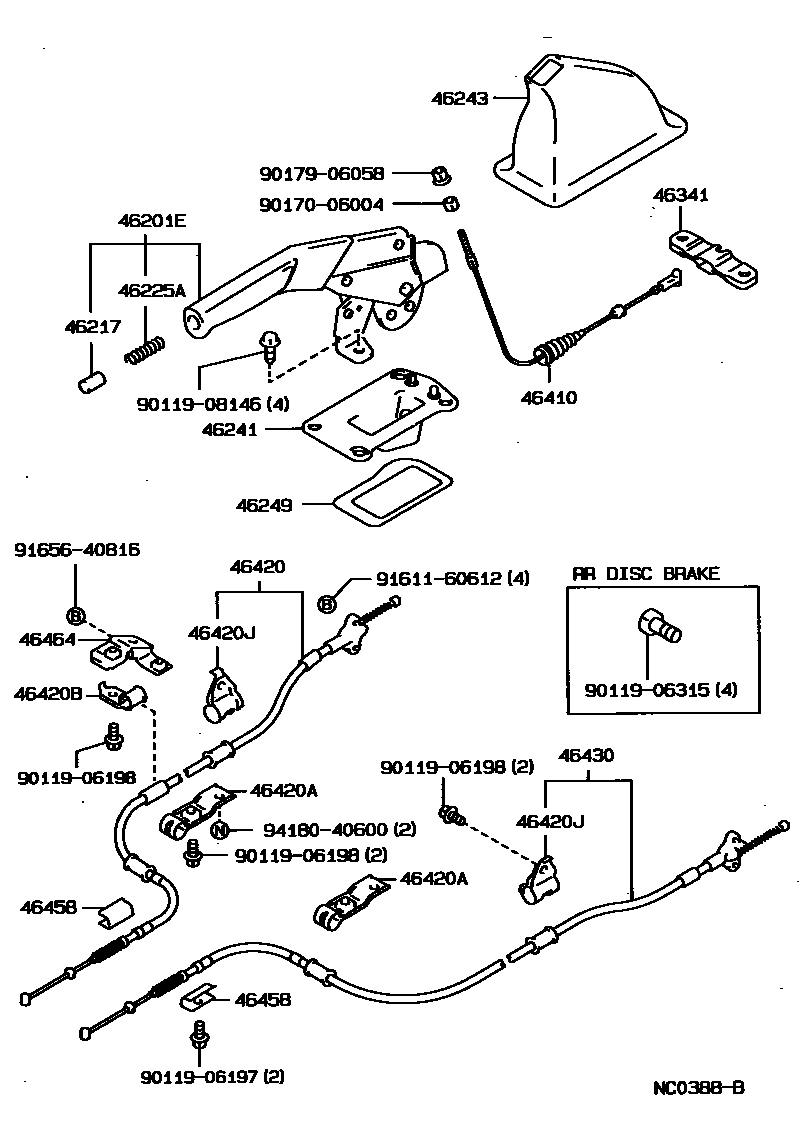

Toyota CORONA — PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20121-03iAT170,CT176,ET176..DX,STD198801-199211

GRAY,TRIM1#

sub46201-20121

main46201-20121-04iAT170..DX198801-198911

BLUE,TRIM8#

sub46201-20121

main46201-20121-06iAT170,CT176,ET176..DX198801-199211

SABLE,TRIM4#

sub46201-20121

main46201-20121-34iAT170..DX198911-199202

DARK BLUE,TRIM8#

sub46201-20121

main46201-20190-03iAT170,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198801

GRAY,TRIM1#

sub46201-20191

main46201-20190-04iAT170,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z198712-198801

BLUE,TRIM8#

sub46201-20191

main46201-20190-06iAT170,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,X,Z198712-198801

SABLE,TRIM4#

sub46201-20191

main46201-20191-03iAT170,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198801-199211

GRAY,TRIM1#

sub46201-20191

main46201-20191-04iAT170,CT170,ST17#..EXG,EXS,G,GX,MX,X,Z198801-198911

BLUE,TRIM8#

sub46201-20191

main46201-20191-06iAT170,CT170,ET176,ST17#..EXG,EXS,G,GX,MX,SELS,X,Z198801-199211

SABLE,TRIM4#

sub46201-20191

main46201-20191-14iAT170,CT170,ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub46201-20191

main46201-20210-03iAT175198808-199202

GRAY,TRIM1#

sub46201-20210

main46201-20210-04iAT175198808-198911

BLUE,TRIM8#

sub46201-20210

main46201-20210-06iAT175198808-199202

SABLE,TRIM4#

sub46201-20210

main46201-20210-14iAT175198911-199202

DARK BLUE,TRIM8#

sub46201-20210

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020iET176,ST171..GT,GTR,STD,SXR199009-199211

sub46217-16030

main46217-12020-03iAT175198801-199202

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198801-199211

SABLE,TRIM4#

sub46217-12020

sub46217-16030

main46217-12020-24iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-J0iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198801-198911

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-J1iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z199110-199202

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-20020-43iAT170,CT17#,ET176,ST17#198712-198801

SHADOW GRAY,TRIM1#

sub46217-20020

main46217-20020-46iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198801

SABLE,TRIM4#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAT17#,CT17#,ET176,ST17#198712-199211

46241BOOT, PARKING BRAKE LEVER

main46241-20050iAT170,CT17#,ET176,ST17#198712-199211

main46241-20090iAT175198808-199202

46243COVER, PARKING BRAKE LEVER

main46243-20030-03iAT170,CT176,ET176..DX,STD198712-199211

GRAY,TRIM1#

sub46243-20030

main46243-20030-04iAT170..DX198712-198911

BLUE,TRIM8#

sub46243-20030

main46243-20030-06iAT170,CT176,ET176..DX198712-199211

SABLE,TRIM4#

sub46243-20030

main46243-20030-14iAT170..DX198911-199202

DARK BLUE,TRIM8#

sub46243-20030

46249SHIELD, PARKING BRAKE HOLE

main46249-20020iAT170,CT17#,ET176,ST17#198712-199211

main46249-20030iAT175198808-199202

46341EQUALIZER, PARKING BRAKE

main46341-16020iAT175198808-199202

main46341-20040iAT170,CT17#,ET176,ST17#198712-199211

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20300iAT170,CT17#,ET176,ST17#198712-199110

main46410-20320iAT175198808-199202

main46410-20400iAT170,CT17#,ET176,ST17#199110-199211

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20170iAT175198808-199202

main46420-20240iCT176,ET176198712-199211

main46420-29035iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199202

main46420-29045iST171..EXG,G,SXR198712-199006

main46420-29045iST171..GT,GTR198712-199202

main46420-94700iST171..4FC..EXG199005-199007

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01016iCT176,ET176198712-199211

main90949-01331iAT170,CT170,ST17#198712-198906

sub90949-01605

main90949-01368iAT175198808-199106

main90949-01369iAT175198808-199106

main90949-01475iAT170,CT170,ST17#198712-198909

main90949-01554iAT175199106-199202

main90949-01555iAT175199106-199202

main90949-01605iAT170,CT170,ST17#198909-199202

main90949-01605iAT170,CT170,ST17#198906-198909

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01015iCT176,ET176198712-199106

main90949-01370iAT175198808-199106

main90949-01371iAT175198808-199106

main90949-01556iAT175199106-199202

main90949-01557iAT175199106-199202

main90949-01606iAT170,CT170,ST17#198712-199202

main90949-01746iCT176,ET176199106-199211

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01604iAT170,CT170,ST17#198712-199202

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20260iAT175198808-199202

main46430-20330iCT176,ET176198712-199211

main46430-29045iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199202

main46430-29055iST171..EXG,G,SXR198712-199006

main46430-29055iST171..GT,GTR198712-199202

main46430-94700iST171..4FC..EXG199005-199007

46458RETAINER, CABLE

main46458-28010iAT17#,CT17#,ET176,ST17#199109-199211

main46458-50010iAT17#,CT17#,ET176,ST17#198712-199109

46464PLATE, CABLE CLAMP SUPPORT

main46464-32020iAT170,CT170,ST17#198712-199202

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9161160612

main91611-60612

9165640816

main91656-40816

9418040600

main94180-40600

24 parts on this diagram · 4 diagrams in section
