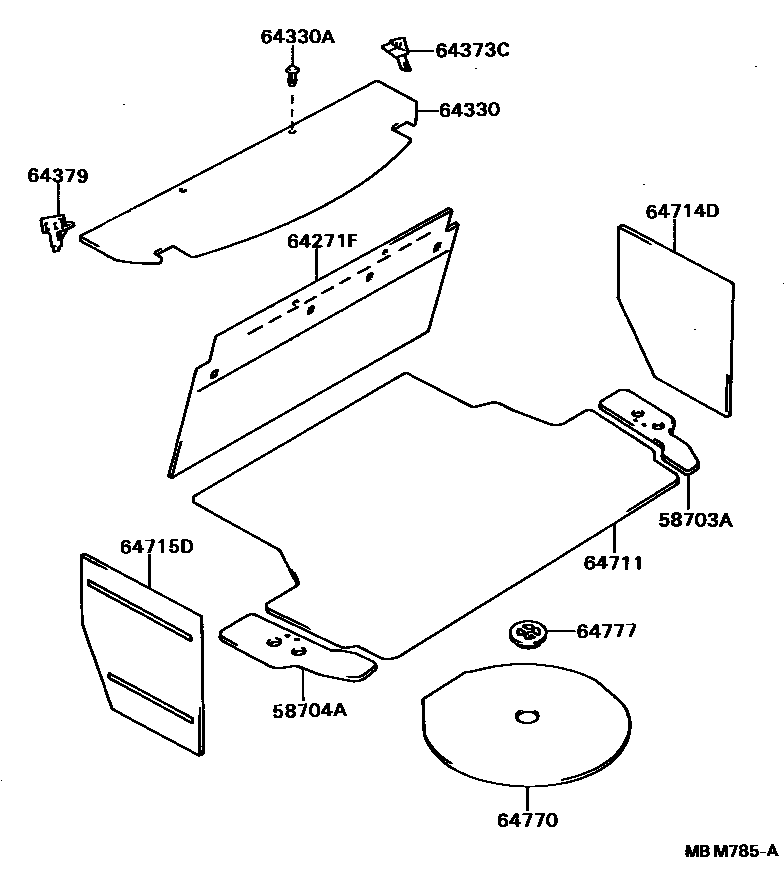

Toyota CORONA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20100iAT170,CT170,ST17#..SED198712-199202

main58703-20120iAT175198808-199202

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20100iAT170,CT170,ST17#..SED198712-199202

main58704-20120iAT175198808-199202

64271FTRIM, ROOM PARTITION

main64271-20160-B0iAT17#,CT170,ST170..DX,GX,SELS198712-199202

GRAY,TRIM1#

main64271-20160-E0iAT17#,CT170,ST170..DX,EXS,GX,MX198712-199202

SABLE,TRIM4#

main64271-20160-J0iAT17#,CT170,ST170..DX,EXS,GX,MX198712-198911

BLUE,TRIM8#

main64271-20160-J1iAT17#,CT170,ST170..DX,GX,SELS198911-199202

DARK BLUE,TRIM8#

main64271-20170-03iST171..EXG198712-198911

GRAY,TRIM4#

main64271-20170-03iAT17#,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

GRAY,TRIM1#

main64271-20170-04iST171..EXG198712-198911

BLUE,TRIM8#

main64271-20170-06iAT17#,CT170,ST17#..EXG,EXS198911-199202

SABLE,TRIM4#

main64271-20170-06iST171..SED198712-198911

SABLE,TRIM1#

main64271-20170-14iAT17#,CT170,ST17#..EXG,EXS198911-199202

DARK BLUE,TRIM8#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20830-03iAT17#,CT170,ST170..DX,GX,SELS,STD198712-199202

GRAY,TRIM1#

sub64330-20830

main64330-20830-04iAT17#,CT170,ST170..DX,GX198712-198911

BLUE,TRIM8#

sub64330-20830

main64330-20830-06iAT17#,CT170,ST170..DX,GX,SELS198712-199202

SABLE,TRIM4#

sub64330-20830

main64330-20830-14iAT17#,CT170,ST170..DX,GX,SELS198911-199202

DARK BLUE,TRIM8#

sub64330-20830

main64330-20840-03iAT17#..EXS,MX;CT170,ST170..MX198712-198911

GRAY,TRIM1#

sub64330-20840

main64330-20840-04iAT17#..EXS,MX;CT170,ST170..MX198712-198911

BLUE,TRIM8#

sub64330-20840

main64330-20840-06iST171..4FC..EXG199005-199007

SUPER ROMY,SABLE,TRIM4#

sub64330-20840

main64330-20840-06iAT17#..EXS,MX;CT170,ST170..MX198712-198911

SABLE,TRIM4#

sub64330-20840

main64330-20850-03iAT170..MX198712-199202

sub64330-20850

main64330-20850-03iAT170..EXS;AT175,ST170..MX198712-198911

GRAY,TRIM1#

sub64330-20850

main64330-20850-04iAT170..MX198712-198911

sub64330-20850

main64330-20850-04iCT170,ST17#..EXG,EXS198712-198911

BLUE,TRIM8#

sub64330-20850

main64330-20850-06iAT170..MX198712-199202

sub64330-20850

main64330-20850-06iAT170..EXS;AT175,ST170..MX198712-198911

SABLE,TRIM4#

sub64330-20850

main64330-20850-14iAT175..SELS198911-199202

sub64330-20850

main64330-20860-03iAT17#,CT170,ST170..DX,SELS199006-199202

sub64330-20860

main64330-20860-06iAT17#,CT170,ST170..DX,GX,SELS199006-199202

sub64330-20860

main64330-20860-14iAT17#,CT170,ST170..DX,GX,SELS199006-199202

sub64330-20860

main64330-2B040-03iAT175..SELS199006-199202

main64330-2B040-06iAT175..SELS199008-199202

main64330-2B040-14iAT175..SELS199006-199202

main64330-2B090-03iAT17#..EXS198911-199202

GRAY,TRIM1#

sub64330-2B090

main64330-2B090-04iAT17#..EXS198911-199202

DARK BLUE,TRIM8#

sub64330-2B090

main64330-2B090-06iAT17#..EXS198911-199202

SABLE,TRIM4#

sub64330-2B090

main64330-2B130-03iCT170,ST17#..EXG,EXS,GTR,SXR198911-199202

main64330-2B130-03iCT170,ST17#..EXG,EXS,GTR,SXR198911-199202

GRAY,TRIM1#

main64330-2B130-04iCT170,ST17#..EXG,EXS198911-199202

main64330-2B130-04iCT170,ST17#..EXG,EXS198911-199202

DARK BLUE,TRIM8#

main64330-2B130-06iAT175..EXS198911-199202

main64330-2B130-06iAT175..EXS198911-199202

SABLE,TRIM4#

main64330-2B250-03iAT17#..EXS199101-199202

main64330-2B250-04iAT17#..EXS199101-199202

main64330-2B250-06iAT17#..EXS199101-199202

main64330-2B390-03iAT17#,CT170,ST170..DX,GX,SELS199101-199202

sub64330-2B390

main64330-2B390-06iAT17#,CT170,ST170..DX,GX,SELS199101-199202

sub64330-2B390

main64330-2B390-14iAT17#,CT170,ST170..DX,GX,SELS199101-199202

sub64330-2B390

main64330-2B400-03iAT17#,CT170,ST170..DX,GX,SELS199101-199202

sub64330-2B400

main64330-2B400-04iAT17#,CT170,ST170..DX,GX,SELS199101-199202

sub64330-2B400

main64330-2B400-06iAT17#,CT170,ST170..DX,GX,SELS199101-199202

sub64330-2B400

main64330-2B410-03iCT170,ST17#..EXG,EXS,GTR,SXR199101-199202

sub64330-2B410

main64330-2B410-03iAT170..EXS199101-199202

sub64330-2B410

main64330-2B410-04iCT170,ST17#..EXG,EXS199101-199202

sub64330-2B410

main64330-2B410-04iCT170,ST17#..EXG,EXS199101-199202

sub64330-2B410

main64330-2B410-06iAT175..EXS199101-199202

sub64330-2B410

main64330-2B410-06iCT170,ST17#..EXG,EXS199101-199202

sub64330-2B410

main64330-2B530-03iAT170,CT170,ST170..SELS199101-199202

sub64330-2B530

main64330-2B530-04iAT170,CT170,ST170..SELS199101-199202

sub64330-2B530

main64330-2B530-06iAT170,CT170,ST170..SELS199101-199202

sub64330-2B530

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-03iAT17#,CT170,ST17#..SED198712-199009

GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-24iAT170,CT170,ST17#..DX,EXG,EXS,GX,MX198712-198807

DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

main90467-08046-26iAT17#,CT170,ST17#..DX,EXG,EXS,GX,MX,SELS198712-199202

SABLE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-34iAT17#,CT170,ST17#..DX,EXG,EXS,GX,SELS198911-199202

DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

main90467-08046-B1iAT17#,CT170,ST17#..SED199009-199202

SHADOW GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-J0iAT17#,CT170,ST17#..DX,EXG,EXS,GX,MX198903-198911

LIGHT BLUE,TRIM8#

sub90467-08046

sub90467-08037

64373CSTOPPER, PACKAGE TRAY TRIM, RH

main64373-20040iAT17#,CT170,ST17#..SED198712-198911

sub64373-20070

main64373-20070iST171..4FC..EXG199005-199007

SUPER ROOMY

main64373-20070iAT17#,CT170,ST170..DX,GX,SELS198911-199202

64379STOPPER, PACKAGE TRAY TRIM, LH

main64379-20020iAT17#,CT170,ST17#..SED198712-198911

sub64379-20040

main64379-20040iST171..4FC..EXG199005-199007

SUPER ROOMY

main64379-20040iAT17#,CT170,ST170..DX,GX,SELS198911-199202

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20430-03iAT170..DX198712-198911

GRAY,TRIM1#

main64711-20430-03iAT170..STD198712-198911

GRAY,TRIM1#,4#,8#

main64711-20440-03iAT170..DX..EFI;AT170,CT170,ST170..GX,MX,SELS198712-199202

GRAY,TRIM1#,4#,8#

main64711-20450-03iAT170,CT170,ST170..EXS198712-198911

GRAY,TRIM1#,4#,8#

main64711-20460-03iST171..GTR198712-199202

GRAY,TRIM1#

main64711-20460-03iST171..EXG198712-199202

GRAY,TRIM1#,4#,8#

main64711-20540-03iST171..SXR198712-199202

GRAY,TRIM1#

main64711-20570-03iAT175..GX,SELS198808-199202

GRAY,TRIM1#,4#,8#

main64711-20590-03iAT175..MX198808-198911

GRAY,TRIM1#,4#,8#

main64711-20740-03iAT175..EXS198911-199202

GRAY,TRIM1#,4#,8#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-20260-03iAT170..DX198712-199202

GRAY,TRIM1#

main64714-20260-03iAT170..STD198712-199202

GRAY,TRIM1#,4#,8#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-20250-03iAT170..STD198712-199202

GRAY,TRIM1#,4#,8#

main64715-20250-03iAT170..DX198712-199202

GRAY,TRIM1#

64770COVER ASSY, SPARE WHEEL

main64770-32050iAT175198808-199202

main64771-32040iAT170,CT170,ST17#..SED198712-199202

64777CLAMP, SPARE WHEEL COVER

main64777-32030iAT17#,CT170,ST17#..SED198712-199202

12 parts on this diagram · 2 diagrams in section
