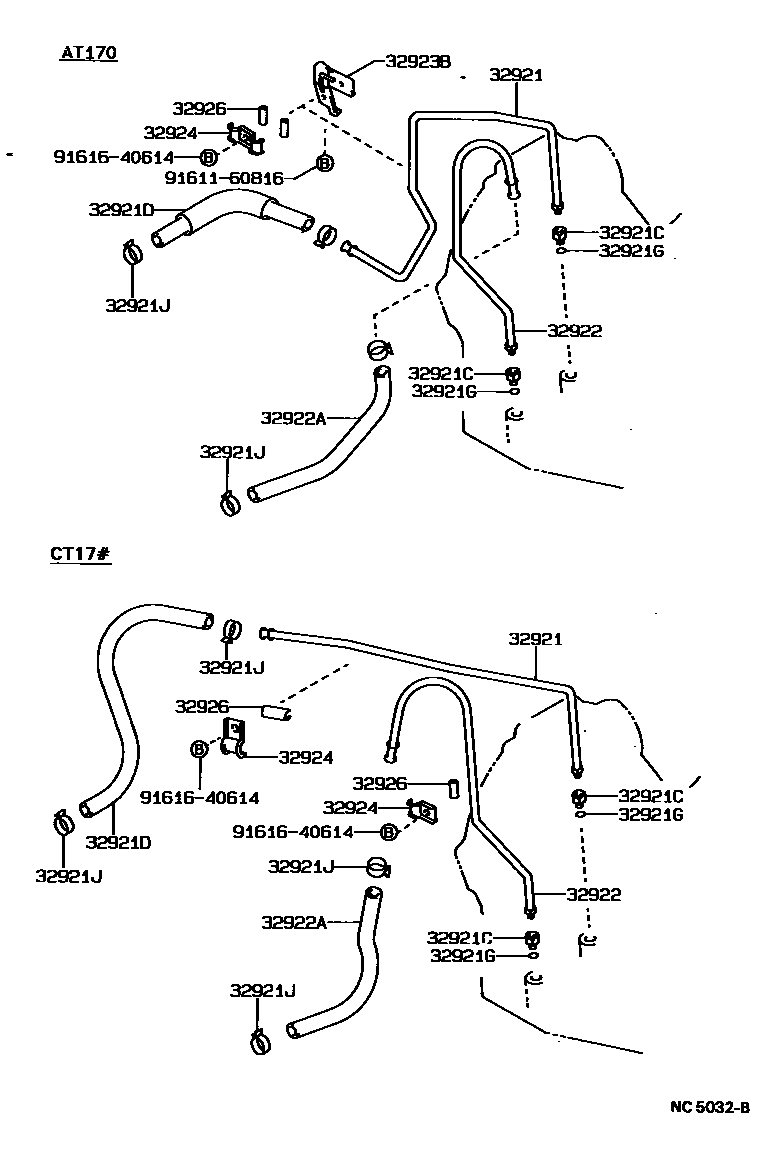

Toyota CORONA — OIL COOLER & TUBE (ATM)

0001 1A240L,A241L 0002 1A241H 0003 1A241H 0004 1A132L 0005 1A140L,A140E

32921TUBE, OIL COOLER INLET, NO.1

main32921-12261iAT175..4FC198911-199202

sub32921-12260

main32921-12350iAT170..4FC198712-198910

main32921-12351iAT170..4FC198910-199202

main32921-12370iET176..3FC198712-198910

main32921-12371iET176..3FC198910-199211

main32921-20220iCT17#..4FC198712-199002

main32921-20221iCT17#..4FC199002-199211

main32921-20290iST17#..4FC198712-199002

main32921-20291iST17#..4FC199002-199202

sub32921-20290

main32921-20300iAT175..4FC198808-198910

main32921-20301iAT175..4FC198910-198911

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010iST17#..4FC198712-199202

OUTLET

main90404-14007iAT175,ET176,ST17#..ATM198712-199211

INLET

main90404-14007iAT170,CT17#..4FC198712-199211

main90404-14018iST171..4FC199106-199108

INLET

sub90404-14007

main90407-14003iET176..3FC198712-199211

OUTLET

main90407-16015iAT175..4FC198808-199202

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-12130iET176..3FC198712-198910

sub32941-12131

main32941-12131iET176..3FC198910-199211

main32941-12141iAT175..4FC198911-199202

main32941-20150iAT170..4FC198712-198910

sub32941-20151

main32941-20151iAT170..4FC198910-199202

main32941-20190iAT175..4FC198808-198910

sub32941-20191

main32941-20191iAT175..4FC198910-198911

main90445-15020iST17#..4FC198911-199002

main90445-15042iST17#..4FC199002-199202

main90445-15058iCT170..4FC..(EXS,GX,MX)198712-199211

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAT175..4FC198712-199211

ID=10.516

main90301-15004iAT175..4FC198808-199202

ID=15.41

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iAT17#,CT17#,ET176,ST17#..ATM198712-199211

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12200iET176..3FC198712-198910

main32922-12201iET176..3FC198910-199211

main32922-12230iAT175..4FC198808-198910

main32922-12231iAT175..4FC198910-199202

main32922-20210iCT17#..4FC198712-199002

main32922-20211iCT17#..4FC199002-199211

main32922-20270iAT170..4FC198712-198910

main32922-20271iAT170..4FC198910-199202

main32922-20320iST17#..4FC198911-199002

main32922-20321iST17#..4FC199002-199202

main32922-32040iST17#..4FC198712-198902

sub32922-32041

main32922-32041iST17#..4FC198902-198911

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15020iST170..4FC..CI198712-199002

main90445-15027iAT170..4FC198805-198910

sub90445-15052

main90445-15030iAT170..4FC198712-198910

sub90445-15051

main90445-15034iET176..3FC198712-198910

sub90445-15050

main90445-15042iCT17#..4FC199002-199211

main90445-15050iET176..3FC198910-199211

main90445-15051iST17#..4FC198910-199202

sub90445-15054

main90445-15052iAT170..4FC198910-199202

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20111iST17#..4FC198911-199202

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-12110iET176..3FC198712-199211

main32923-12150iAT17#..4FC198712-199202

main32923-20090iST17#..4FC198712-198911

main32923-20100iAT175..4FC198808-198911

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-20110iST17#..4FC198909-198910

sub32923-20111

main32923-20111iST17#..4FC198910-198911

main32923-32021iST17#..4FC198712-198909

main32924-20070iST17#..4FC198911-199202

main90462-10082iAT175,CT170,ET176..ATM198712-199211

main90462-12085iAT170..4FC198712-199202

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iAT175..4FC198811-199202

main32926-30011iAT175..4FC198712-199211

9161160816

main91611-60816

9161640614

main91616-40614

13 parts on this diagram · 5 diagrams in section
