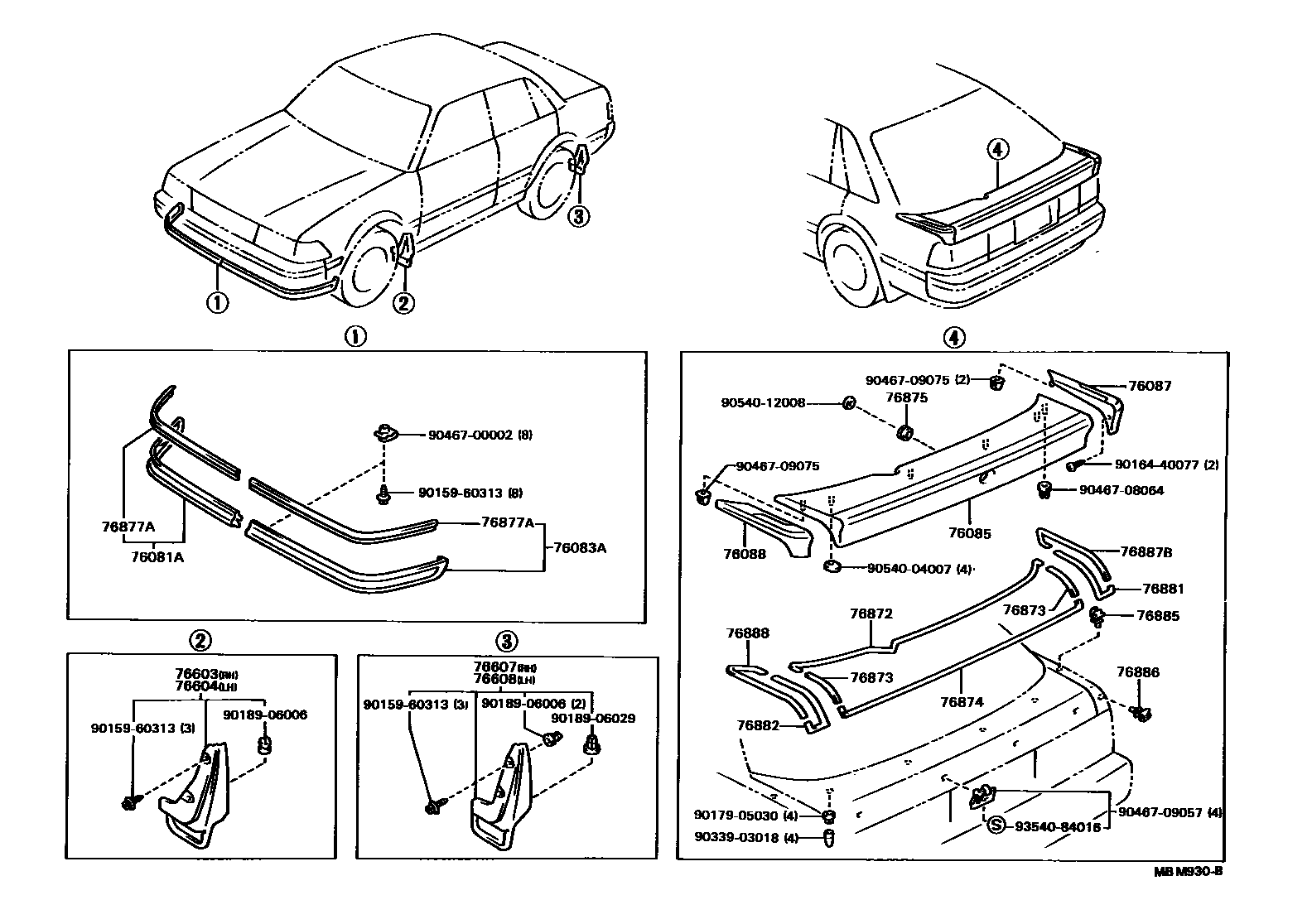

Toyota CORONA — MUDGUARD & SPOILER

0001 1 0002 1 0003 1

76081ASPOILER SUB-ASSY, FRONT RH

main76081-20030iST17#..G,GT,GTR,SXR,X,Z198712-199202

76083ASPOILER SUB-ASSY, FRONT LH

main76083-20010iST17#..G,GT,GTR,SXR,X,Z198712-199202

76085SPOILER SUB-ASSY, REAR

main76871-20904iST17#..LB198712-198911

main76871-20905iST17#..LB198911-199202

76087SPOILER SUB-ASSY, REAR NO.1

main76891-20905iST17#..LB198712-199202

76088SPOILER SUB-ASSY, REAR NO.2

main76892-20906iST17#..LB198712-199202

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29105iET176..GX198712-199211

main76603-29115-02iST17#..EXG,G,GT,GTR,SXR,X,Z198712-198810

SUPER RED 2,3E5

main76603-29115-03iST170..X198812-198903

main76603-29115-04iST17#..EXG,G,GT,GTR,SXR,X,Z198712-198911

LIGHT BLUE M,8E8

main76603-29115-05iST17#..EXG,G,X,Z198712-198911

MEDIUM BEIGE M,4H6

main76603-29115-07iST17#..EXG,G,GT,GTR,SXR,X,Z198810-198911

GREEN M,6J7

main76603-29115-08iAT17#,CT170,ST170..SELS199005-199202

main76603-29115-08iST170..EXS198812-199211

main76603-29115-08iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198712-199202

SUPER WHITE 2,040

main76603-29115-12iAT17#,CT170,ST17#..EXG,EXS,GTR,SXR198712-199202

RED MAICA,3H4

main76603-29115-12iST170..EXS198812-199211

main76603-29115-12iAT17#,CT170,ST170..SELS199005-199202

main76603-29115-13iAT17#,CT170,ST170..SELS199005-199202

main76603-29115-13iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

BLUEISH GRAY M,182

main76603-29115-17iAT17#,CT170,ST170..SELS199005-199202

main76603-29115-17iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

GRAYISH GREEN M,6K6

main76603-29115-22iAT17#,CT170,ST170..SELS199005-199202

main76603-29115-22iAT17#,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

DARK ROSE M,3J1

main76603-29205iST171..4FC..EXG199005-199007

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29105iAT175..EXS198712-199211

main76604-29115-02iST17#..EXG,G,GT,GTR,SXR,X,Z198712-198810

SUPER RED 2,3E5

main76604-29115-03iST170..X198812-198903

main76604-29115-04iST17#..EXG,G,GT,GTR,SXR,X,Z198712-198911

LIGHT BLUE M,8E8

main76604-29115-05iST17#..EXG,G,X,Z198712-198911

MEDIUM BEIGE M,4H6

main76604-29115-07iST17#..EXG,G,GT,GTR,SXR,X,Z198810-198911

GREEN M,6J7

main76604-29115-08iST170..EXS198812-199211

main76604-29115-08iAT17#,CT170,ST170..SELS199005-199202

main76604-29115-08iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198712-199202

SUPER WHITE 2,040

main76604-29115-12iST17#..EXG,G,GT,GTR,SXR,X,Z198712-199202

RED MAICA,3H4

main76604-29115-12iST170..EXS198812-199211

main76604-29115-12iAT17#,CT170,ST170..SELS199005-199202

main76604-29115-13iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

BLUEISH GRAY M,182

main76604-29115-13iAT17#,CT170,ST170..SELS199005-199202

main76604-29115-17iAT17#,CT170,ST170..SELS199005-199202

main76604-29115-17iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

GRAYISH GREEN M,6K6

main76604-29115-22iAT17#,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

DARK ROSE M,3J1

main76604-29115-22iAT17#,CT170,ST170..SELS199005-199202

main76604-29205iST171..4FC..EXG199005-199007

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-29125iAT175..GX,SELS198712-199211

main76607-29135-02iST17#..EXG,G,GT,GTR,SXR,X,Z198712-198810

SUPER RED 2,3E5

main76607-29135-03iST170..X198812-198903

main76607-29135-04iST17#..EXG,G,GT,GTR,SXR,X,Z198712-198911

LIGHT BLUE M,8E8

main76607-29135-05iST17#..EXG,G,X,Z198712-198911

MEDIUM BEIGE M,4H6

main76607-29135-07iST17#..EXG,G,GT,GTR,SXR,X,Z198810-198911

GREEN M,6J7

main76607-29135-08iST170..EXS198812-199211

main76607-29135-08iAT17#,CT170,ST170..SELS199005-199202

main76607-29135-08iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198712-199202

SUPER WHITE 2,040

main76607-29135-12iST17#..EXG,G,GT,GTR,SXR,X,Z198712-199202

RED MAICA,3H4

main76607-29135-12iST170..EXS198812-199211

main76607-29135-12iAT17#,CT170,ST170..SELS199005-199202

main76607-29135-13iAT17#,CT170,ST170..SELS199005-199202

main76607-29135-13iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

BLUEISH GRAY M,182

main76607-29135-17iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

GRAYISH GREEN M,6K6

main76607-29135-17iAT17#,CT170,ST170..SELS199005-199202

main76607-29135-22iAT17#,CT170,ST170..SELS199005-199202

main76607-29135-22iAT17#,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

DARK ROSE M,3J1

main76607-29265iST171..4FC..EXG199005-199007

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-29125iAT175..GX,SELS198712-199211

main76608-29135-02iST17#..EXG,G,GT,GTR,SXR,X,Z198712-198810

SUPER RED 2,3E5

main76608-29135-03iST170..X198812-198903

main76608-29135-04iST17#..EXG,G,GT,GTR,SXR,X,Z198712-198911

LIGHT BLUE M,8E8

main76608-29135-05iST17#..EXG,G,X,Z198712-198911

MEDIUM BEIGE M,4H6

main76608-29135-07iST17#..EXG,G,GT,GTR,SXR,X,Z198810-198911

GREEN M,6J7

main76608-29135-08iAT17#,CT170,ST170..SELS199005-199202

main76608-29135-08iST170..EXS198812-199211

main76608-29135-08iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198712-199202

SUPER WHITE 2,040

main76608-29135-12iAT17#,CT170,ST17#..EXG,EXS,GTR,SXR198712-199202

RED MAICA,3H4

main76608-29135-12iST170..EXS198812-199211

main76608-29135-12iAT17#,CT170,ST170..SELS199005-199202

main76608-29135-13iAT17#,CT170,ST170..SELS199005-199202

main76608-29135-13iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

BLUEISH GRAY M,182

main76608-29135-17iAT17#,CT170,ST170..SELS199005-199202

main76608-29135-17iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

GRAYISH GREEN M,6K6

main76608-29135-22iAT17#,CT170,ST170..SELS199005-199202

main76608-29135-22iAT17#,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

DARK ROSE M,3J1

main76608-29275iST171..4FC..EXG199005-199007

76872PROTECTOR, REAR SPOILER, NO.1

main76872-20030iST17#..LB198712-198802

sub76872-20050

sub76849-20030

sub76895-20010

main76872-20050iST17#..LB198802-199202

76873PROTECTOR, REAR SPOILER, NO.2

main76873-20030iST17#..LB198712-198802

sub76873-20050

sub76876-20030

main76873-20050iST17#..LB198802-199202

main76876-20030iST17#..LB198802-199202

sub76873-20050

76874PROTECTOR, REAR SPOILER, NO.3

main76874-20040iST17#..LB198712-198802

sub76874-20050

sub76883-20040

sub76884-20040

main76874-20050iST17#..LB198802-199202

76875PROTECTOR, REAR SPOILER, NO.4

main76875-20010iST17#..LB198712-199202

76877APROTECTOR, FRONT SPOILER

main76877-20020iST17#..G,GT,GTR,SXR,X,Z198712-199202

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-20020iST17#..LB198712-199202

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-20020iST17#..LB198712-199202

76885RETAINER, REAR SPOILER, NO.5

main76885-20080iST17#..LB198712-199202

76886RETAINER, REAR SPOILER, NO.6

main76886-20060iST17#..LB198712-199202

76887BPROTECTOR, REAR SPOILER SIDE, NO.2

main76887-20020iST17#..LB198712-199202

76888PROTECTOR, REAR SPOILER SIDE, NO.3

main76888-20020iST17#..LB198712-199202

9015960313

main90159-60313

9016440077

main90164-40077

9017905030

main90179-05030

9018906006

main90189-06006

9018906029

main90189-06029

9033903018

main90339-03018

9046700002

main90467-00002

9046708064

main90467-08064

9046709057

main90467-09057

9046709075

main90467-09075

9054004007

main90540-04007

9054012008

main90540-12008

9354084016

main93540-84016

33 parts on this diagram · 3 diagrams in section
