Toyota CORONA — MIRROR

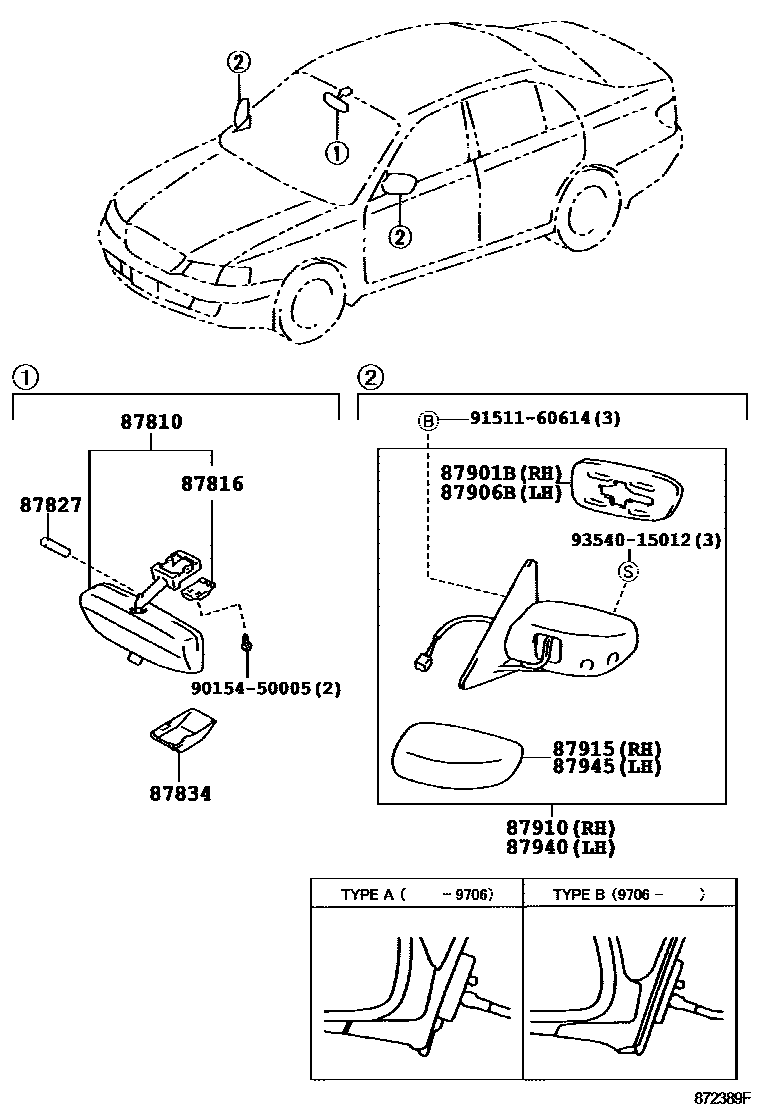

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-B3i199712

DK.CHARCOAL,TRIM17

main87810-14170-E0i199601-199712

ANTELOPE,TRIM4#

main87810-14170-P0i199712

SHADOW GRAY,TRIM11

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199601

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010i199601

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-B2i199601-199707

LT.GRAY,TRIM1#

main87834-20080-B5i199712

MD.CHARCOAL,TRIM17

main87834-20080-B6i199712

LIGHT GRAY,TRIM11

main87834-20080-E1i199601-199712

ANTELOPE,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2B260i199601-199706

main87931-2D160i199712

main87931-2D180i199712

main87931-47020i200105

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-21130i199712

main87961-2B850i199601-199706

main87961-2D160i199706-199712

main87961-47020i200105

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2B250i199601-199706

main87910-2B260-A0i199601-199706

main87910-2B260-A1i199610-199707

main87910-2B260-B0i199601-199706

main87910-2B260-D0i199601-199706

main87910-2B260-E0i199601-199706

main87910-2B260-G0i199601-199706

main87910-2B260-G1i199601-199706

main87910-2B260-J0i199601-199706

main87910-2D140i199712-200112

main87910-2D150i199706-199712

main87910-2D160-A0i199706-199712

main87910-2D160-A1i199706-199712

main87910-2D160-B0i199706-199712

main87910-2D160-D0i199706-199712

main87910-2D160-E0i199706-199712

main87910-2D160-G0i199706-199712

main87910-2D160-G1i199706-199712

main87910-2D160-J0i199706-199712

main87910-2D170-A0i199712-200112

SUPER WHITE 2,040

main87910-2D170-B0i199712-200112

CRYSTAL SILVER PEARL,1C1 ,2EG

main87910-2D170-E0i199712-200112

FLAXEN MM,4M7

main87910-2D170-G0i199712-200101

GRAYISH GREEN M.M.,6N0

main87910-2D170-G1i199712-200101

DK.GREEN M.M.,6P2

main87910-2D170-J0i199712-200101

DK.BLUE M.M.,8L3

main87910-2D170-J2i200012-200112

DK.BLUE M.M.,8P4

main87910-2D180-A0i199712-200112

main87910-2D180-B0i199712-200112

main87910-2D180-E0i199712-200112

main87910-2D180-G0i199712-200101

main87910-2D180-G1i199712-200101

main87910-2D180-J0i199712-200101

main87910-2D180-J2i200012-200112

main87910-2D240-A0i199912-200105

main87910-2D240-A1i200105-200112

main87910-2D240-B0i199912-200105

main87910-2D240-F0i200105-200112

87915COVER, OUTER MIRROR, RH

main87915-20010i199601-199706

main87915-20020-A0i199601-199706

main87915-20020-A1i199610-199707

main87915-20020-B0i199601-199706

main87915-20020-D0i199601-199706

main87915-20020-E0i199601-199706

main87915-20020-G0i199601-199706

main87915-20020-G1i199601-199706

main87915-20020-J0i199601-199706

main87915-20030i199706-199712

main87915-20040-A0i199706

main87915-20040-A1i199707-199712

main87915-20040-A2i200105

main87915-20040-B0i199706-199712

main87915-20040-B2i199712

main87915-20040-D0i199706-199712

main87915-20040-E0i199706-199712

main87915-20040-E1i199712

main87915-20040-F1i200105

main87915-20040-G0i199706-200101

main87915-20040-G1i199706-200101

main87915-20040-J0i199706-200101

main87915-20040-J3i200101

main87915-21010i199712

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2B810i199601-199706

main87940-2B850-A0i199601-199706

main87940-2B850-A1i199612-199706

main87940-2B850-B0i199601-199706

main87940-2B850-D0i199601-199706

main87940-2B850-E0i199601-199706

main87940-2B850-G0i199601-199706

main87940-2B850-G1i199601-199706

main87940-2B850-J0i199601-199706

main87940-2D140i199712-200112

main87940-2D150i199706-199712

main87940-2D160-A0i199706-199712

main87940-2D160-A1i199706-199712

main87940-2D160-B0i199706-199712

main87940-2D160-D0i199706-199712

main87940-2D160-E0i199706-199712

main87940-2D160-G0i199706-199712

main87940-2D160-G1i199706-199712

main87940-2D160-J0i199706-199712

main87940-2D170-A0i199712-200112

SUPER WHITE 2,040

main87940-2D170-B0i199712-200112

CRYSTAL SILVER PEARL,1C1 ,2EG

main87940-2D170-E0i199712-200112

FLAXEN MM,4M7

main87940-2D170-G0i199712-200101

GRAYISH GREEN M.M.,6N0

main87940-2D170-G1i199712-200101

DK.GREEN M.M.,6P2

main87940-2D170-J0i199712-200101

DK.BLUE M.M.,8L3

main87940-2D170-J2i200012-200112

DK.BLUE M.M.,8P4

main87940-2D180-A0i199712-200112

main87940-2D180-B0i199712-200112

main87940-2D180-E0i199712-200112

main87940-2D180-G0i199712-200101

main87940-2D180-G1i199712-200101

main87940-2D180-J0i199712-200101

main87940-2D180-J2i200012-200112

main87940-2D280-A0i199912-200112

main87940-2D280-A1i199912-200112

main87940-2D280-B0i199912-200112

main87940-2D280-F0i200105-200112

87945COVER, OUTER MIRROR, LH

main87945-20010i199601-199706

main87945-20020-A0i199601-199706

main87945-20020-A1i199610-199707

main87945-20020-B0i199601-199706

main87945-20020-D0i199601-199706

main87945-20020-E0i199601-199706

main87945-20020-G0i199601-199706

main87945-20020-G1i199601-199706

main87945-20020-J0i199601-199706

main87945-20030i199706-199712

main87945-20040-A0i199706

main87945-20040-A1i199707-199712

main87945-20040-A2i200105

main87945-20040-B0i199706-199712

main87945-20040-B2i199712

main87945-20040-D0i199706-199712

main87945-20040-E0i199706-199712

main87945-20040-E1i199712

main87945-20040-F1i200105

main87945-20040-G0i199706-200101

main87945-20040-G1i199706-200101

main87945-20040-J0i199706-200101

main87945-20040-J3i200101

main87945-21010i199712

9015450005

main90154-50005

9151160614

main91511-60614

9354015012

main93540-15012

13 parts on this diagram · 1 diagram in section

MIRROR for Toyota CORONA

This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota CORONA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
