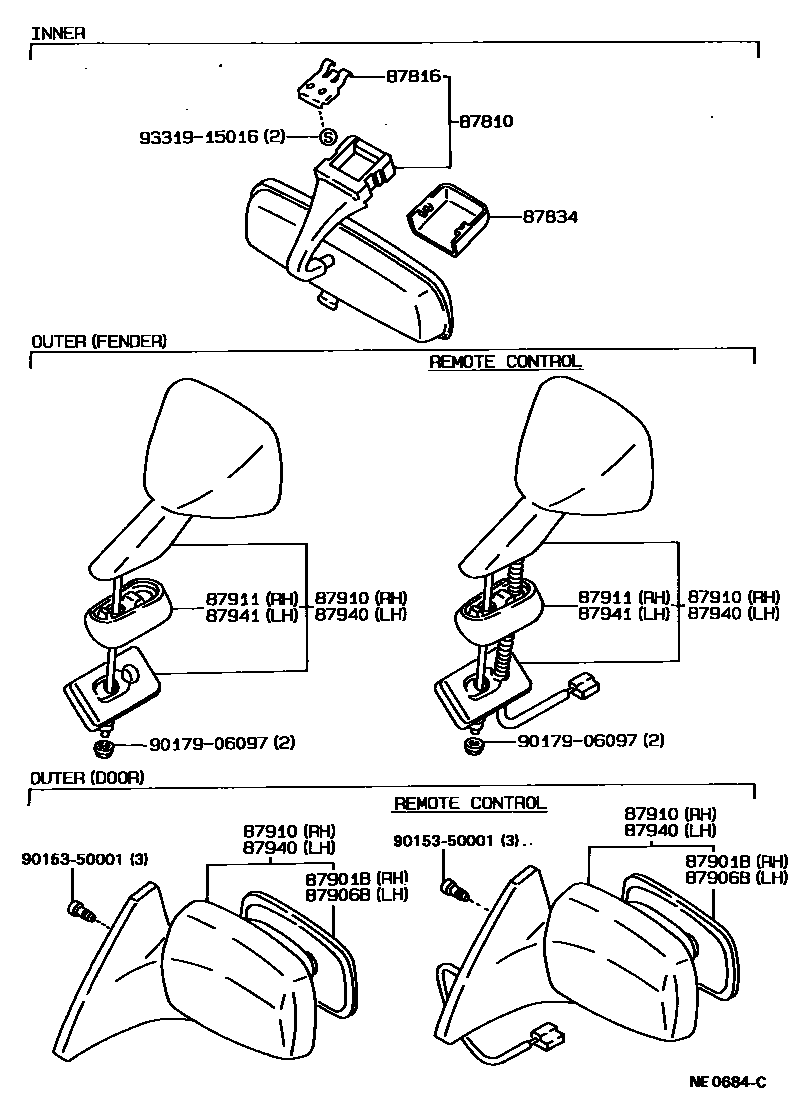

Toyota CORONA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-20220-03iAT17#,CT17#,ET176,ST17#198712-199211

GRAY,TRIM1#

sub87810-20220

main87810-20220-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub87810-20220

main87810-20220-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub87810-20220

main87810-20220-24iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub87810-20220

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAT17#,CT17#,ET176,ST17#198712-199211

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-26iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub87834-20080

main87834-20080-34iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

DEEP BLUE,TRIM8#

sub87834-20080

main87834-20080-53iAT17#,CT17#,ET176,ST17#198712-199208

SHADOW GRAY,TRIM1#

sub87834-20080

main87834-20080-54iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

LIGHT BLUE,TRIM8#

sub87834-20080

main87834-20080-S3iCT176,ET176199208-199211

LIGHT GRAY,TRIM1#

sub87834-20080

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A210iAT17#,CT170,ST17#198712-199211

main87931-2B420iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X199005-199202

*88

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1A290iAT17#,CT17#,ET176,ST17#198712-199211

main87961-2B420iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X199005-199202

*88

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-20680iET176;AT170,CT176..DX,STD198712-199211

main87910-20850iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SELS,SXR,X,Z198712-199202

main87910-20850iAT17#,CT170,ET176,ST170..GX198712-199211

main87910-20870iAT170..DX,STD198712-199211

main87910-20870iAT175..GX198808-198809

main87910-20880iAT17#,CT170,ST170..GX198712-199202

main87910-20880iAT170..DX..CBR198810

main87910-20880iET176..GX198809-199211

main87910-20890-01iAT170,ST170..GX..(CBR,CI)198906-199211

main87910-20890-01iAT175..GX198812

main87910-20890-01iST171..SXR198712-198810

BLACK,167 ,8E9

main87910-20890-01iST170..Z198911-199202

BLACK,175 ,8G5

main87910-20890-01iAT17#,CT170,ST17#..GX,MX,SXR,Z198810-198911

BLACK,167 ,175 ,8E9

main87910-20890-01iAT17#,CT170,ST17#..SELS,SXR198911-199202

BLACK,175 ,8G2 ,8G5

main87910-20890-02iAT170,ST17#..MX,SXR,Z198712-198810

SUPER RED,3E5

main87910-20890-03iAT17#,CT170,ST17#..SELS,SXR,Z198911-199202

BLUISH GRAY METALLIC,182

main87910-20890-04iAT17#,CT170,ST17#..GX,MX,SXR,Z198712-198911

LIGHT BLUE-METARIC,8E8

main87910-20890-05iAT17#,CT170,ST170..GX,MX,Z198712-198911

MEDIUM BEIGE-METARIC,4H6

main87910-20890-07iAT175,CT170..GX198810-199211

main87910-20890-07iAT17#,CT170,ST17#..GX,MX,SXR,Z198810-198911

GREEN METALLIC,6J7

main87910-20890-08iAT170..DX..CBR198810-199211

main87910-20890-08iAT170,ST17#..MX,SXR,Z198712-199202

SUPER WHITE,040

main87910-20890-12iAT17#,CT170,ST17#..SELS,SXR198712-199202

RED MAICA,3H4

main87910-20890-12iAT175,CT170..GX198810-199211

main87910-20890-17iAT17#,CT170,ST17#..SELS,SXR,Z198911-199202

GRAYISH GREEN M,6K6

main87910-20890-22iAT17#,CT170,ST17#..SELS,SXR198911-199202

DARK ROSE METALLIC,3J1

main87910-2B010-01iAT17#,CT170,ST17#..EXG,EXS,GTR198911-199202

BLACK,175 ,8G5

main87910-2B010-01iAT175..MX198810-199005

main87910-2B010-01iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-198810

BLACK,167 ,8E9

main87910-2B010-01iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198810-198911

BLACK,167 ,175 ,8E9

main87910-2B010-01iST17#..G,GT,X198911-199202

BLACK,175 ,8G2 ,8G5

main87910-2B010-01iAT17#,CT170,ST170..SELS199005-199202

main87910-2B010-01iAT175..MX198808-198810

main87910-2B010-02iAT175..MX198808-198810

main87910-2B010-02iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-198810

SUPER RED,3E5

main87910-2B010-03iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X198911-199202

BLUISH GRAY METALLIC,182

main87910-2B010-03iAT17#,CT170,ST170..SELS199005-199202

main87910-2B010-03iAT17#,CT170,ST170..SELS199005-199211

main87910-2B010-04iAT175..MX198808-198911

main87910-2B010-04iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-198911

LIGHT BLUE-METARIC,8E8

main87910-2B010-05iAT175..MX198808-198911

main87910-2B010-05iAT170,CT170,ST17#..EXG,EXS,G,X198712-198911

MEDIUM BEIGE-METARIC,4H6

main87910-2B010-07iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198810-198911

GREEN METALLIC,6J7

main87910-2B010-07iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198810-198911

main87910-2B010-08iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

SUPER WHITE,040

main87910-2B010-08iAT175..MX198808-199202

main87910-2B010-08iAT17#,CT170,ST170..SELS199005-199211

main87910-2B010-12iAT17#,CT170,ST170..SELS199005-199211

main87910-2B010-12iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

RED MAICA,3H4

main87910-2B010-12iAT175..MX198808-199202

main87910-2B010-14iST170..EXS198812-198903

main87910-2B010-14iAT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198812-198911

DARK BLUE MICA M,8E9

main87910-2B010-14iST170..EXS198812-198903

main87910-2B010-17iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X198911-199202

GRAYISH GREEN M,6K6

main87910-2B010-17iAT17#,CT170,ST170..SELS199005-199202

main87910-2B010-17iAT17#,CT170,ST170..SELS199005-199211

main87910-2B010-22iAT17#,CT170,ST170..SELS199005-199202

main87910-2B010-22iAT17#,CT170,ST17#..EXG,EXS,GTR198911-199202

DARK ROSE METALLIC,3J1

main87910-2B460-01iAT17#,CT170,ST17#..EXG,EXS,GTR199005-199202

main87910-2B460-01iAT17#,CT170,ST17#..EXG,EXS,GTR199005-199202

main87910-2B460-02iAT17#,CT170,ST17#..EXG,EXS,GTR199005-199202

main87910-2B460-03iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X199005-199202

main87910-2B460-07iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X199005-199202

main87910-2B460-08iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X199005-199202

main87910-2B460-12iAT17#,CT170,ST17#..EXG,EXS,GTR199005-199202

main87910-94700iST171..4FC..EXG199005-199007

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-20190iAT17#,CT17#,ET176,ST17#198712-199211

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-20740iET176;AT170,CT176..DX,STD198712-199211

main87940-2B020iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SELS,SXR,X,Z198712-199202

main87940-2B020iAT17#,CT170,ET176,ST170..GX198712-199211

main87940-2B040iAT170..DX,STD198712-199211

main87940-2B040iAT175..GX198808-198809

main87940-2B050iAT170..DX..CBR198810

main87940-2B050iAT170,CT170,ST170..GX198712-199202

main87940-2B050iET176..GX198809-199211

main87940-2B060-01iAT175,CT170..GX198906-199211

main87940-2B060-01iAT17#,CT170,ST17#..GX,MX,SXR,Z198712-198810

BLACK,167 ,8E9

main87940-2B060-01iAT175..GX198810

main87940-2B060-01iAT17#,CT170,ST17#..GX,MX,SXR,Z198810-198911

BLACK,167 ,175 ,8E9

main87940-2B060-01iST170..Z198911-199202

BLACK,175 ,8G5

main87940-2B060-01iST170..Z198911-199202

BLACK,175 ,8G2 ,8G5

main87940-2B060-02iAT170,ST17#..MX,SXR,Z198712-198810

SUPER RED,3E5

main87940-2B060-03iAT17#,CT170,ST17#..SELS,SXR,Z198911-199202

BLUISH GRAY METALLIC,182

main87940-2B060-04iAT17#,CT170,ST17#..GX,MX,SXR,Z198712-198911

LIGHT BLUE-METARIC,8E8

main87940-2B060-05iAT17#,CT170,ST170..GX,MX,Z198712-198911

MEDIUM BEIGE-METARIC,4H6

main87940-2B060-07iAT175..GX198810

main87940-2B060-07iAT175,CT170..GX198906-199211

main87940-2B060-07iAT17#,CT170,ST17#..GX,MX,SXR,Z198810-198911

GREEN METALLIC,6J7

main87940-2B060-08iAT170,ST170..GX..(CBR,CI)198810-199211

main87940-2B060-08iAT17#,CT170,ST17#..SELS,SXR,Z198712-199202

SUPER WHITE,040

main87940-2B060-12iAT175,CT170..GX198810-199211

main87940-2B060-12iAT170,ST17#..MX,SXR,Z198712-199202

RED MAICA,3H4

main87940-2B060-17iAT17#,CT170,ST17#..SELS,SXR,Z198911-199202

GRAYISH GREEN M,6K6

main87940-2B060-22iAT17#,CT170,ST17#..SELS,SXR198911-199202

DARK ROSE METALLIC,3J1

main87940-2B070-01iST17#..G,GT,X198911-199202

BLACK,175 ,8G5

main87940-2B070-01iAT17#,CT170,ST17#..EXG,EXS,GTR198911-199202

BLACK,175 ,8G2 ,8G5

main87940-2B070-01iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-198810

BLACK,167 ,8E9

main87940-2B070-01iAT175..MX198808-198810

main87940-2B070-01iAT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198810-198911

BLACK,167 ,6J7 ,8E9

main87940-2B070-01iAT17#,CT170,ST170..SELS199005-199202

main87940-2B070-02iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-198810

SUPER RED,3E5

main87940-2B070-02iAT175..MX198808-198810

main87940-2B070-03iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X198911-199202

BLUISH GRAY METALLIC,182

main87940-2B070-03iAT17#,CT170,ST170..SELS199005-199211

main87940-2B070-03iAT17#,CT170,ST170..SELS199005-199202

main87940-2B070-04iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-198911

LIGHT BLUE-METARIC,8E8

main87940-2B070-04iAT175..MX198808-198911

main87940-2B070-05iAT175..MX198808-198911

main87940-2B070-05iAT170,CT170,ST17#..EXG,EXS,G,X198712-198911

MEDIUM BEIGE-METARIC,4H6

main87940-2B070-07iAT175..MX198810-198911

main87940-2B070-07iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198810-198911

GREEN METALLIC,6J7

main87940-2B070-08iAT17#,CT170,ST170..SELS198808-199202

main87940-2B070-08iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

SUPER WHITE,040

main87940-2B070-08iAT17#,CT170,ST170..SELS199005-199211

main87940-2B070-12iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

RED MAICA,3H4

main87940-2B070-12iAT175..MX198808-199202

main87940-2B070-12iAT17#,CT170,ST170..SELS199005-199211

main87940-2B070-14iAT175..MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,X198812-198911

DARK BLUE MICA M,8E9

main87940-2B070-14iST170..EXS198812-198903

main87940-2B070-14iST170..EXS198812-198903

main87940-2B070-17iAT17#,CT170,ST170..SELS199005-199211

main87940-2B070-17iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X198911-199202

GRAYISH GREEN M,6K6

main87940-2B070-17iAT17#,CT170,ST170..SELS199005-199202

main87940-2B070-22iAT17#,CT170,ST17#..EXG,EXS,GTR198911-199202

DARK ROSE METALLIC,3J1

main87940-2B070-22iAT17#,CT170,ST170..SELS199005-199202

main87940-2B470-01iST17#..G,GT,X199005-199202

main87940-2B470-01iAT17#,CT170,ST17#..EXG,EXS,GTR199005-199202

main87940-2B470-02iAT17#,CT170,ST17#..EXG,EXS,GTR199005-199202

main87940-2B470-03iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X199005-199202

main87940-2B470-07iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X199005-199202

main87940-2B470-08iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,X199005-199202

main87940-2B470-12iAT17#,CT170,ST17#..EXG,EXS,GTR199005-199202

main87940-94700iST171..4FC..EXG199005-199007

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-20210iAT17#,CT17#,ET176,ST17#198712-199211

9015350001

main90153-50001

9017906097

main90179-06097

9331915016

main93319-15016

12 parts on this diagram · 1 diagram in section
