Toyota CORONA — METER

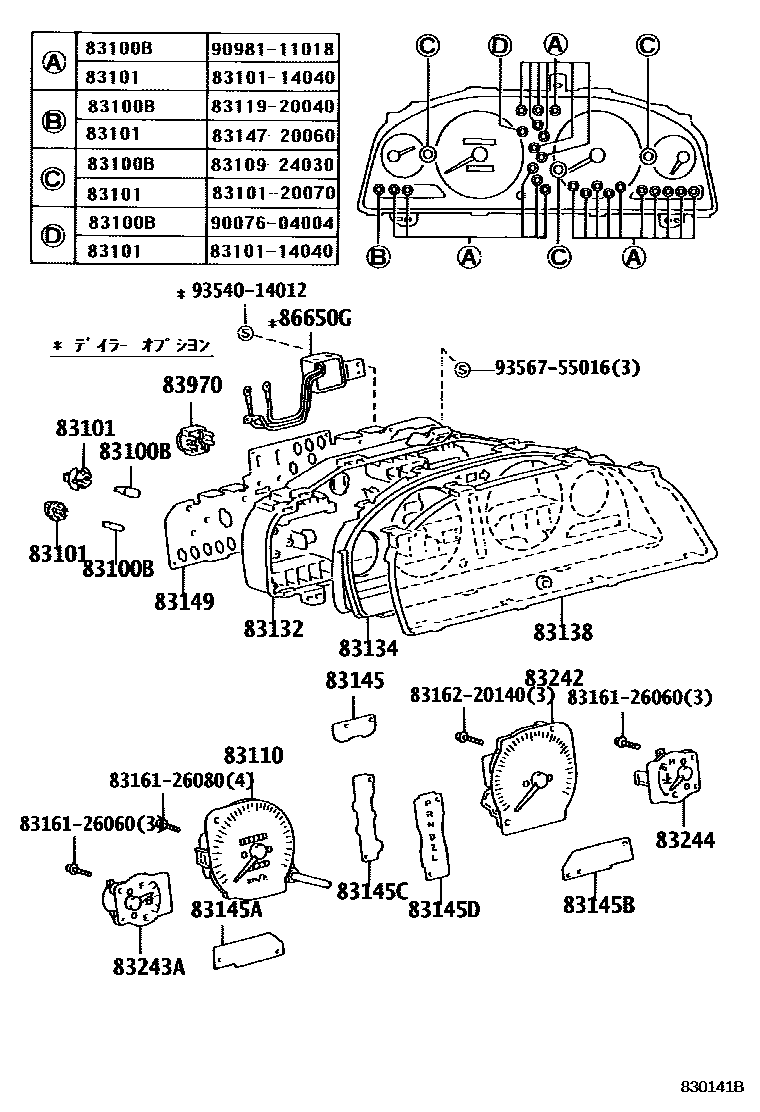

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main83109-24030×3i199601-199712

main83119-20040i199601-199712

main83120-60020×12i199712

main84999-30040×6i199712

main90010-06002i199712

main90010-06003×3i199712

main90010-06006×3i199712

main90076-04004i199601-199712

main90981-11018×21i199601-199712

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×20i199601-199712

main83101-20070×3i199601-199712

12V 3.4W W/GREEN CAP

main83147-20060i199601-199712

12V 3.0W

83110SPEEDOMETER ASSY

main83220-20030i199601-199712

main83220-20160i199712

main83220-20180i199712

main83220-20190i199712

main83220-20200i199712

main83220-20210i199712

main83220-20220i199712

83132CASE, COMBINATION METER

main83841-20130i199601-199712

main83841-20560i199712

main83843-20590i199712

83134COVER, COMBINATION METER, NO.1

main83821-20130i199601-199712

main83821-20140i199601-199712

main83821-20590i199712

main83821-44010i199712

main83821-44040i199712

83138GLASS, SPEEDOMETER

main83852-20130i199712

main83852-20590i199712

83145LENS, METER, NO.1

main83831-20130i199712

83145ALENS, METER, NO.2

main83831-20180i199601-199712

main83831-20610i199712

main83832-20130i199601-199712

83145BLENS, METER, NO.3

main83831-20140i199601-199712

main83831-20150i199601-200112

main83831-20170i199601-200112

main83831-20660i199712-200112

main83832-20180i199601-200112

main83833-20130i199601-200112

83145CLENS, METER, NO.4

main83831-44010i199712

main83832-20140i199601-199712

83145DLENS, METER, NO.5

main83887-20140i199601-199712

main83887-44010i199712

83149PLATE, METER CIRCUIT

main83861-20130i199601-199712

main83861-20140i199601-199712

main83861-20170i199601-199712

main83861-20560i199712

main83861-20570i199712

main83861-20600i199712

main83861-20610i199712

main83861-20620i199712

main83861-20660i199712

83242TACHOMETER ASSY, ENGINE

main83881-20130i199601-199712

main83881-20150i199601-199712

main83881-20180i199601-199712

main83881-20560i199712

main83881-20580i199712

main83881-20610i199712

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-20130i199601-199712

main83882-20560i199712

main83882-20580i199712

main83882-20590i199712-200010

main83882-20591i200010

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-20130i199601-199712

main83883-20560i199712

main83883-20590i199712-200010

main83883-20591i200010

83970BUZZER ASSY, REVERSE WARNING

main83970-12020i199601-199712

86650GBUZZER ASSY

main86650-12030i199601

8316126060CASE, COMBINATION METER MIRROR, NO.1

main83161-26060

8316126080CASE, COMBINATION METER MIRROR, NO.1

main83161-26080

8316220140CASE, COMBINATION METER MIRROR, NO.2

main83162-20140

9354014012

main93540-14012

9356755016

main93567-55016

22 parts on this diagram · 4 diagrams in section

METER for Toyota CORONA

This section contains 43 genuine Toyota parts for the METER system of the Toyota CORONA. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, KNOB, TRIP COUNTER, CASE, COMBINATION METER.
