Toyota CORONA — METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1W(DIGITAL SPEEDOMETER) 0004 1 0005 1 0006 1

83100BBULB, COMBINATION METER, NO.1

main83109-20010iST17#..EXG,EXS,G,GT,GTR,SXR,X198802-199202

main83109-20030iST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

main90981-11018iAT17#,CT17#,ET176,ST17#198712-199211

main99132-12034iAT17#,CT17#,ET176,ST17#198712-199211

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iAT17#,CT17#,ET176,ST17#198712-199211

12V 1.4W BULB

main83101-20040iAT17#,CT17#,ET176,ST17#198712-199211

12V 3.4W BULB

83110SPEEDOMETER ASSY

main83110-20610iAT17#,CT17#,ET176,ST170..DX,GX,STD198712-198911

main83110-20611iAT17#,CT17#,ET176,ST170..DX,GX,STD198911-199211

main83110-2B710iAT170,ST170..GX198810-198906

main83110-2B710iCT170..4FC..(EXS,MX);AT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main83110-2B710iCT170..4FC..GX;AT17#,ST170..GX198906-198911

main83110-2B710iAT170..DX..CBR198810-199211

main83110-2B711iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198911-199202

main83110-2B711iAT17#,CT170,ST170..GX199106-199202

main83110-2B810iCT170..5F..(EXS,MX)198712-198911

main83110-2B810iCT170..5F..GX198810-198911

main83110-2B811iCT170..5F..SELS198911-199005

83128KNOB, TRIP COUNTER

main83128-20710iAT17#,CT17#,ET176,ST170..DX,GX,STD198712-199211

83132CASE, COMBINATION METER

main83132-2B400iAT17#,CT17#,ET176,ST170..DX,GX,STD198712-198911

main83132-2B420iAT17#,CT170,ST170..GX198906-198908

sub83132-2B421

main83132-2B420iAT175,CT170..GX198810-199211

sub83132-2B421

main83132-2B420iAT170,CT170,ST170..GX198810-198906

sub83132-2B421

main83132-2B420iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198908

sub83132-2B421

main83132-2B421iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SELS,SXR,X,Z198908-199202

main83132-2B421iAT17#,CT170,ST170..GX199106-199202

main83132-2B421iAT17#,CT170,ST170..GX198908-198911

main83132-2B520iAT17#,CT17#,ET176,ST170..DX,GX,STD198911-199211

main83132-2H130iST17#..EXG,EXS,G,GT,GTR,SXR,X198712-198911

sub83132-2H190

main83132-2H450iST17#..EXG,EXS,G,GT,GTR,SXR,X198911-199202

83134COVER, COMBINATION METER, NO.1

main83134-2B360iAT17#,CT17#,ET176,ST170..DX,GX,STD198712-199211

main83134-2B380iAT170,CT170..GX..(DSL,EFI)198810-199211

main83134-2B380iAT170,CT170,ST170..GX198810-199202

main83134-2B380iAT17#,CT170,ST170..GX198906-198911

main83134-2B380iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SELS,SXR,X,Z198712-199202

83145LENS, METER, NO.1

main83145-2B440iST171198712-199202

main83145-2B460iST170..GX198712-199211

main83145-2B460iST170..GX198810-198911

main83145-2B480iAT17#,CT17#,ET176,ST17#198712-199211

main83145-2B500iAT175..5F..GX;AT170,ET176,ST170..DX,GX,STD198712-198911

main83145-2B520iAT175..5F..GX;AT170,ET176,ST170..DX,GX,STD198712-198911

main83145-2B800iCT17#..DX,GX198712-199211

main83145-2B820iCT17#..DX,GX198712-198911

main83145-2B840iAT175,CT170..GX198906-199211

main83145-2B840iAT170,ST170..GX198810-198906

main83145-2B840iAT175..5F..GX;AT170,ST170..GX198906-198911

main83145-2B840iAT175..5F..MX;AT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main83145-2B860iAT175..5F..GX198810-198906

main83145-2B860iAT170..DX198810-198905

main83145-2B860iAT170,ST170..GX..(CBR,CI)198906-199211

main83145-2B860iAT175..5F..MX;AT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main83145-2B860iAT175..5F..GX;AT170,ST170..GX198906-198911

main83145-2B880iAT175,CT170..GX198906-199211

main83145-2B880iAT17#,CT170,ST17#..4FC198712-199202

main83145-2B880iAT175..4FC..GX198901-198906

main83145-2B900iCT170..GX198810-198911

main83145-2B900iCT170..EXS,MX198712-198911

main83145-2D040iAT175..4FC..GX198808-198911

main83145-2D060iAT175,CT170..GX198906-199211

main83145-2D060iAT175..4FC..MX198808-198911

main83145-2D060iAT175..4FC..GX198901-198911

main83145-2D080iAT175..4FC..GX198808-198911

main83145-2D100iAT175,CT170..GX198906-199211

main83145-2D100iAT175..4FC..GX198901-198911

main83145-2D100iAT175..4FC..MX198808-198911

main83145-2D120iAT17#,ET176,ST170..DX,GX,STD198911-199211

main83145-2D140iCT17#..DX,GX198911-199211

main83145-2D160iAT175..4FC..GX198911-199202

main83145-2D180iAT17#,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198911-199202

main83145-2D180iAT17#,ST170..GX199106-199202

main83145-2D200iAT170,ST170..EXS,SELS,X,Z;AT175,ST171..5F..(EXG,EXS,G,GT,GTR,SELS,SXR)198911-199202

main83145-2D200iAT175..5F..GX;AT170,ST170..GX199106-199202

main83145-2D220iST171..4FC198911-199202

main83145-2D240iCT170..EXS,SELS198911-199202

main83145-2D240iCT170..GX199106-199202

main83145-2D260iAT175..4FC..(EXS,SELS)198911-199202

main83145-2D260iAT175..4FC..GX199106-199202

main83145-2D340iAT175..5F..GX;AT170,ET176,ST170..DX,GX,STD198911-199211

main83145-2D420iCT170..GX199106-199202

main83145-2D420iCT170..EXS,SELS198911-199202

main83146-2B080iCT170..EXS,MX198712-198911

main83146-2B080iCT170..GX198810-198911

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-2B240iAT17#,CT17#,ET176,ST170..DX,GX198712-198911

main83243-2B260iAT170,ET176..STD198712-198911

main83243-2B280iAT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main83243-2B280iAT17#,ST170..GX198906-198911

main83243-2B280iAT175..GX198810-198906

main83243-2B300iST171198712-198911

main83243-2B320iCT170..EXS,MX198712-198911

main83243-2B320iCT170..GX198810-198911

main83243-2B440iAT17#,CT17#,ET176,ST170..DX,GX198911-199211

main83243-2B460iET176..STD198911-199211

main83243-2B480iAT17#,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z198911-199202

main83243-2B480iAT17#,ST170..GX199106-199202

main83243-2B520iST171198911-199202

main83243-2B540iCT170..EXS,SELS198911-199202

main83243-2B540iCT170..GX199106-199202

83247PLATE, METER CIRCUIT

main83247-2B130iST17#..4FC..(EXG,EXS,G,GT,GTR,SXR,X)198712-199202

main83247-2B150iST17#..5F..(EXG,EXS,G,GT,GTR,SXR,X)198712-199202

sub83247-2B130

main83247-2B170iST170..4FC..(EXS,X)198712-198802

main83247-2B420iAT175..5F..GX;AT170,ET176,ST170..DX,GX,STD198712-198911

main83247-2B440iCT17#..DX,GX198712-198911

main83247-2B500iAT17#,ST170..MTM..GX198906-198911

main83247-2B500iST170..5F..(MX,Z);AT17#..5F..(EXS,MX)198712-198911

main83247-2B500iAT175,CT170..GX198906-199211

main83247-2B500iAT170..DX..CBR198810

main83247-2B500iAT170,ST170..MTM..GX198810-198906

main83247-2B520iST170..4FC..(MX,Z);AT170..4FC..(EXS,MX)198712-198911

main83247-2B520iAT170,ST170..4FC..GX198810-198911

main83247-2B540iST17#..5F..(EXG,EXS,G,GT,GTR,SXR,X)198712-198911

main83247-2B560iST171..4FC198712-198911

main83247-2B580iST171..5F198712-198911

main83247-2B600iST171..4FC198712-198911

main83247-2B620iCT170..5F..EXS198712-198911

main83247-2B640iCT170..4FC..EXS198712-198911

main83247-2B660iAT175..4FC..GX198901-198911

main83247-2B660iAT175..4FC..MX;ST170..4FC..(EXS,X)198712-198911

main83247-2D060iAT175..4FC..GX198808-198911

main83247-2D080iCT170..5F..MX198809-198911

main83247-2D080iCT170..5F..GX198810-198911

main83247-2D100iCT170..4FC..MX198809-198911

main83247-2D100iCT170..4FC..GX198810-198911

main83247-2D140iAT175..5F..GX;AT170,ET176,ST170..DX,GX,STD198911-199211

main83247-2D180iCT17#..DX,GX198911-199211

main83247-2D200iAT175..4FC..GX198911-199202

main83247-2D280iST170..5F..(SELS,Z);AT17#..5F..(EXS,SELS)198911-199202

main83247-2D280iAT17#,ST170..MTM..GX199106-199202

main83247-2D300iAT170,ST170..4FC..GX199106-199202

main83247-2D300iST170..4FC..(SELS,Z);AT170..4FC..(EXS,SELS)198911-199202

main83247-2D360iST17#..5F..(EXG,EXS,G,GT,GTR,SXR,X)198911-199202

main83247-2D380iAT175..4FC..GX199106-199202

main83247-2D380iST170..4FC..(EXS,X);AT175..4FC..(EXS,SELS)198911-199202

main83247-2D400iST171..4FC198911-199202

main83247-2D420iST171..5F198911-199202

main83247-2D440iST171..4FC198911-199202

main83247-2D460iCT170..5F..EXS198911-199202

main83247-2D480iCT170..4FC..EXS198911-199202

main83247-2D720iCT170..5F..GX199106-199202

main83247-2D720iCT170..5F..SELS198911-199202

main83247-2D740iCT170..4FC..SELS198911-199202

main83247-2D740iCT170..4FC..GX199106-199202

83248CHIME, SPEED WARNING

main86640-20140iST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

main86640-20150iST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199211

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120260CASE, COMBINATION METER MIRROR, NO.1

main83161-20260

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

9356755016

main93567-55016

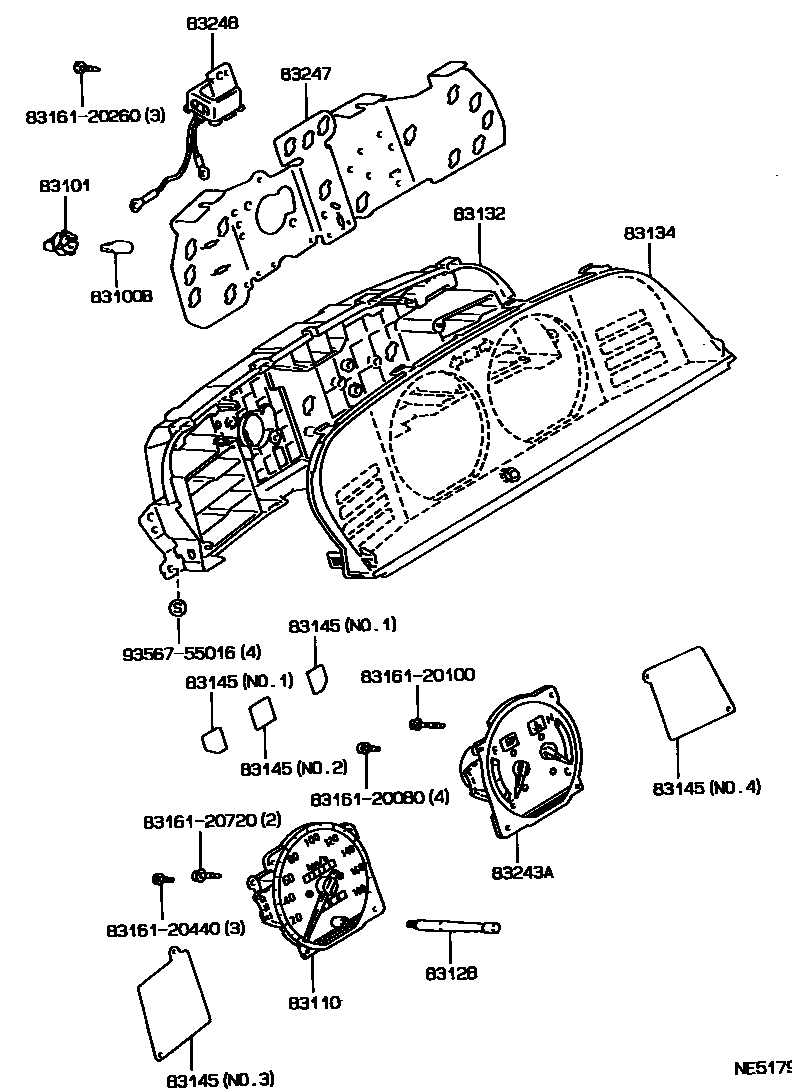

16 parts on this diagram · 6 diagrams in section
