Toyota CORONA — METER

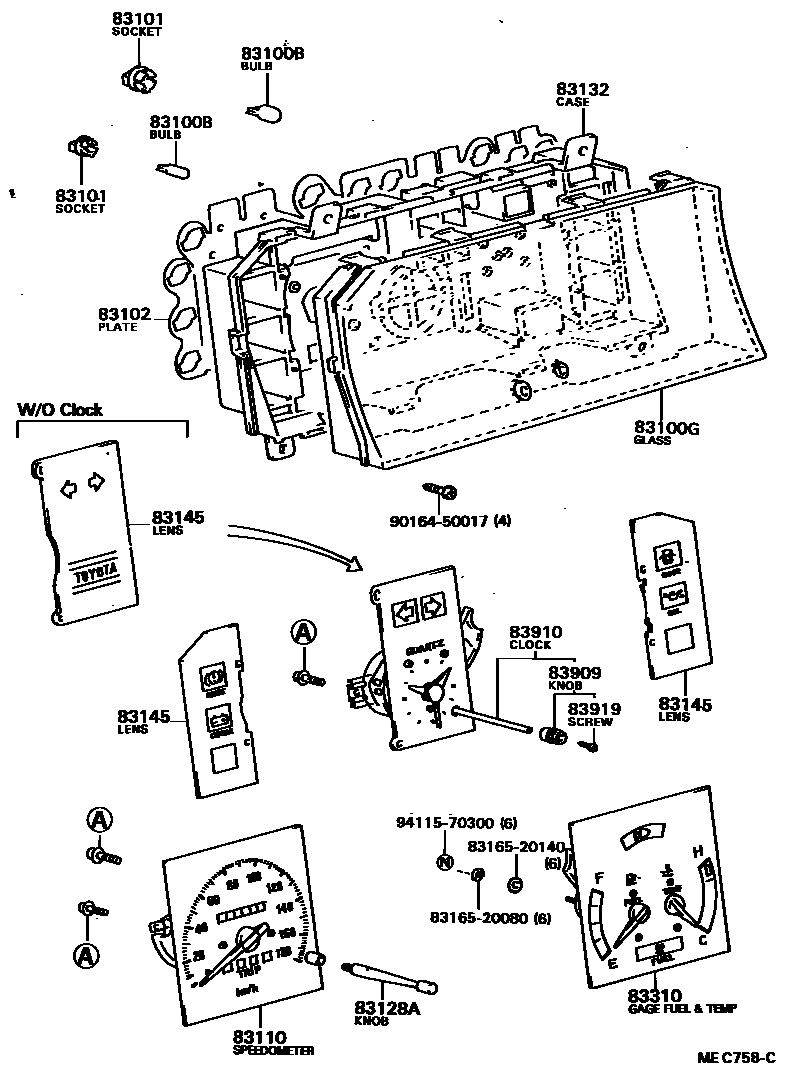

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main90981-11018×9i198301-198711

main99132-12034×13i198301-198711

83100GGLASS, COMBINATION METER

main83133-20210i198310-198711

W/*DS

main83138-20100i198301-198310

EXTRA

main83138-20120i198310-198711

main83138-20220i198301-198711

main83138-20240i198301-198711

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×13i198301-198310

BULB=12V 3.4W

main83101-14040×10i198310-198711

BULB=12V 1.4W

main83101-20040×13i198310-198711

BULB=12V 3.4W

main83101-20080×2i198310-198711

BULB=12V 1.4W W/BLUE CAP

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-20280i198301-198310

main83247-20300i198310-198508

main83247-20320i198301-198310

EXTRA

main83247-20360i198310-198508

main83247-20380i198310-198508

main83247-20440i198310-198508

main83247-20460i198310-198508

main83247-20480i198310-198508

main83247-20660i198508-198711

main83247-20680i198508-198711

main83247-20700i198508-198711

main83247-20720i198512-198711

W/TACHOMETER

main83247-20740i198508-198711

main83247-20760i198508-198711

main83247-20770i198310-198711

W/*DS,LH

main83247-20790i198310-198711

W/*DS,RH

83110SPEEDOMETER ASSY

main83110-2B010i198301-198310

main83110-2B011i198508-198711

main83110-2B020i198301-198310

main83110-2B030i198301-198508

main83110-2B031i198508-198711

main83110-2B080i198301-198310

EXTRA

83128AKNOB, METER

main83128-16060i198301-198711

main83128-20020i198301-198711

main83128-20040i198301-198310

EXTRA

83132CASE, COMBINATION METER

main83132-20080i198310-198508

main83132-20100i198301-198310

main83132-20140i198301-198310

EXTRA

main83132-20200i198310-198508

main83132-20220i198310-198508

main83132-20240i198310-198508

main83132-20440i198512-198711

W/TACHOMETER

main83132-20460i198508-198711

main83132-20540i198508-198711

main83132-20560i198508-198711

main83132-20580i198508-198711

main83132-2B890i198310-198404

W/*DS

main83132-2B891i198404-198711

W/*DS

83145LENS, METER, NO.1

main83145-20220i198301-198310

main83145-20280i198301-198711

RH

main83145-20300i198301-198711

LH

main83145-20380i198504-198508

main83145-20400i198310-198711

CTR

main83145-20420i198310-198711

LH

main83145-20460i198310-198711

RH

main83145-20520i198310-198508

main83145-20540i198310-198508

main83145-20860i198512-198711

W/TACHOMETER

main83145-20880i198508-198711

main83145-20900i198512-198711

W/TACHOMETER

83310GAGE ASSY, FUEL RECEIVER

main83243-20140i198301-198508

main83243-20160i198301-198508

main83243-20180i198301-198310

EXTRA

main83243-20220i198310-198508

main83243-20420i198508-198711

main83243-20440i198508-198711

main83243-20480i198512-198711

W/TACHOMETER

83909KNOB, CLOCK

main83909-14012i198301-198310

main83909-22180i198504-198508

DIGITAL CLOCK

83910CLOCK ASSY

main83910-20360i198301-198310

main83910-20370i198512-198711

DIGITAL

main83910-20440i198301-198310

EXTRA

main83910-20460i198310-198711

main83910-20470i198310-198711

83919SCREW, CLOCK

main83919-12230i198301-198310

EXTRA

main83919-14012i198301-198310

8316520080MIRROR, COMBINATION METER, NO.2

main83165-20080

8316520140MIRROR, COMBINATION METER, NO.2

main83165-20140

9016450017

main90164-50017

9411570300

main94115-70300

16 parts on this diagram · 6 diagrams in section

METER for Toyota CORONA

This section contains 46 genuine Toyota parts for the METER system of the Toyota CORONA. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2.
