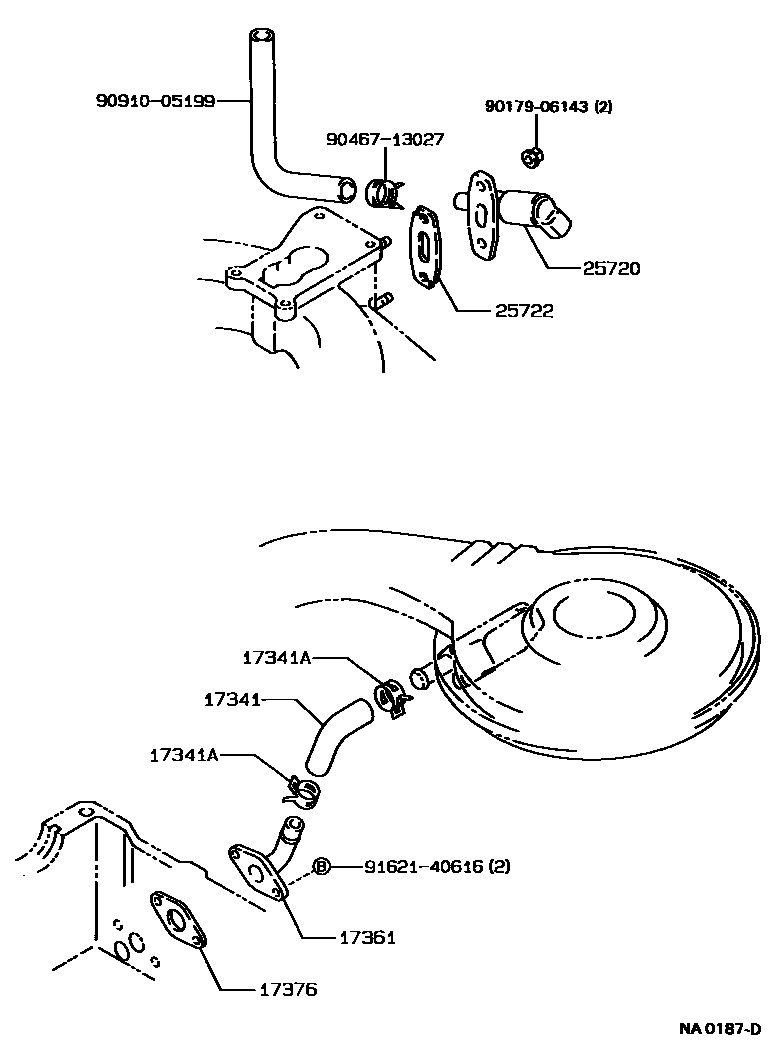

Toyota CORONA — MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11011i3E..ET176198712-198904

main17341-11012i3E..ET176198904-198911

main17341-11120i3E..ET176198911-199211

main17341-15140i5AF..AT170198712-198911

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-20005i3E..ET176198911-199211

sub96134-41900

main90467-26002i3E..ET176198712-198911

sub96134-52600

main90467-26004i5AF..AT170198712-198911

sub96134-52600

17361TUBE, AIR

main17361-15080i5AF..AT170198712-198911

17376GASKET, AIR TUBE, NO.1

main17376-15020i5AF..AT170198712-198911

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25720-11080i3E..ET176198911-199211

main25720-15060i5AF..AT170198712-198911

25722GASKET, ELECTRIC AIR CONTROL VALVE

main25722-11010i3E..ET176198912-199211

main25722-15020i5AF..AT170198712-198912

sub25722-11010

9017906143

main90179-06143

9046713027

main90467-13027

9091005199

main90910-05199

9162140616

main91621-40616

10 parts on this diagram · 2 diagrams in section
