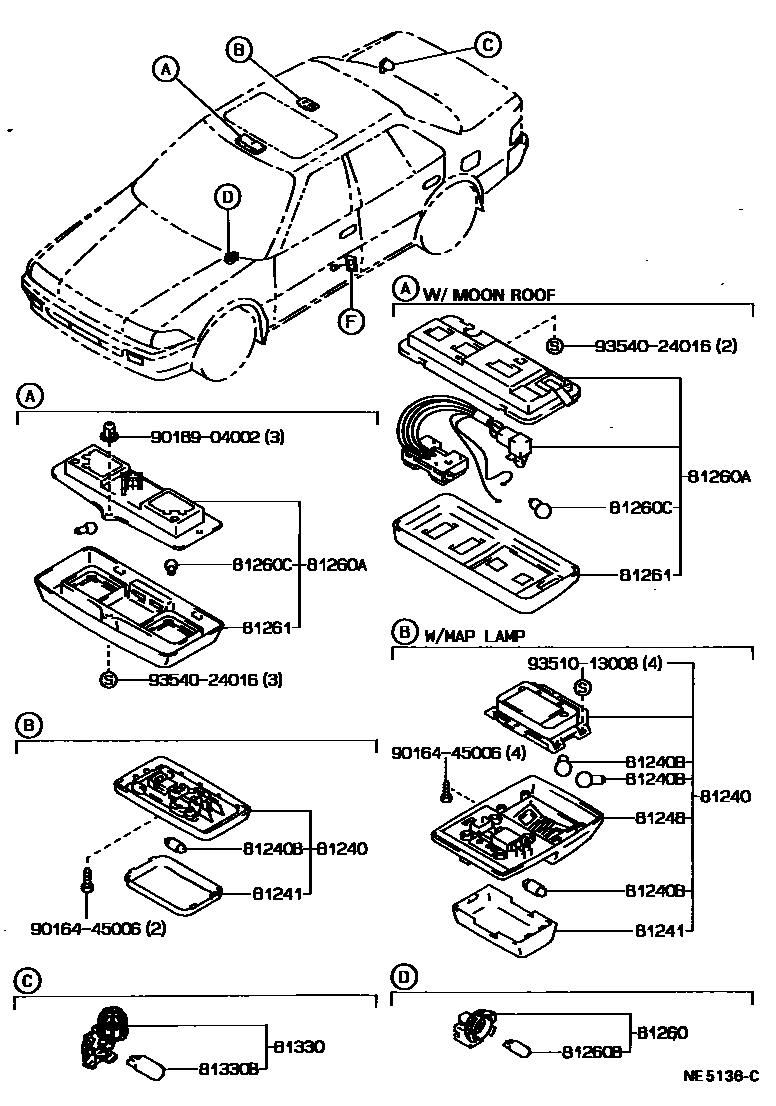

Toyota CORONA — INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-20090-03iCT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,GT,GTR,MX,SXR198712-199202

sub81240-20090

main81240-20090-04iCT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,MX198712-198911

sub81240-20090

main81240-20090-06iCT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,MX198712-199202

sub81240-20090

main81240-20090-14iCT170,ST17#..EXG,EXS,G,X,Z198911-199202

sub81240-20090

main81240-20100-03iCT170,ST170..GX,MX,SELS,Z;AT17#,CT176,ET176,ST171..DX,EXS,GX,MX,SELS,STD,SXR198712-199211

GRAY,GRAY,TRIM1#

sub81240-20100

main81240-20100-04iAT17#..DX,EXS,GX,MX;CT170,ST170..GX,MX,Z198712-198911

BLUE,TRIM8#

sub81240-20100

main81240-20100-06iST171..4FC..EXG199005-199007

SUPER ROOMY,SABLE

sub81240-20100

main81240-20100-06iST171..4FC..EXG199005-199007

sub81240-20100

main81240-20100-06iCT170,ST170..GX,MX,SELS,Z;AT17#,CT176,ET176..DX,EXS,GX,MX,SELS198712-199211

SABLE,TRIM4#

sub81240-20100

main81240-20100-14iAT17#;CT170,ST170..GX,SELS,Z198911-199202

DARK BLUE,TRIM8#

sub81240-20100

main81240-22040-03iCT170,ST17#..EXG,EXS,G,GT,GTR,X198911-199202

W/MAP LAMP,GRAY,GRAY,TRIM1#

sub81240-22040

main81240-22040-06iCT170,ST17#..EXG,EXS,G,X198712-199202

W/MAP LAMP,SABLE,SABLE,TRIM4#

sub81240-22040

main81240-22040-13iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-198911

W/MAP LAMP,GRAY,GRAY,TRIM1#

sub81240-22040

main81240-22040-24iCT170,ST17#..EXG,EXS,G,X198712-198911

W/MAP LAMP,BLUE,BLUE,TRIM8#

sub81240-22040

main81240-22040-34iCT170,ST17#..EXG,EXS,G,X198911-199202

W/MAP LAMP,DARK BLUE,DARK BLUE,TRIM8#

sub81240-22040

81240BBULB, ROOM LAMP, NO.1

main90981-12005iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

main99132-12100iAT17#,CT17#,ET176,ST17#198712-199211

81241LENS, ROOM LAMP, NO.1

main81241-20090iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

main81241-20090iCT170,ST170..GX,MX,SELS,Z;AT17#,CT176,ET176,ST171..DX,EXS,GX,MX,SELS,STD,SXR198712-199211

main81241-22040iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

81248COVER, ROOM LAMP, NO.1

main81248-22040-03iCT170,ST17#..EXG,EXS,G,GT,GTR,X198911-199202

GRAY,TRIM1#

sub81240-22040

sub81248-22040

main81248-22040-06iCT170,ST17#..EXG,EXS,G,X198712-199202

SABLE,TRIM4#

sub81240-22040

sub81248-22040

main81248-22040-06iCT170,ST17#..EXG,EXS,G,X198911-199202

SABLE

sub81240-22040

sub81248-22040

main81248-22040-13iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-198911

GRAY,TRIM1#

sub81240-22040

sub81248-22040

main81248-22040-24iCT170,ST17#..EXG,EXS,G,X198712-198911

BLUE,TRIM8#

sub81240-22040

sub81248-22040

main81248-22040-34iST171..GT,GTR198911-199202

DARK BLUE

sub81240-22040

sub81248-22040

main81248-22040-34iST171..GT,GTR198911-199202

DARK BLUE,TRIM8#

sub81240-22040

sub81248-22040

81260LAMP ASSY, GLOVE BOX

main81260-32071iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

81260ALAMP ASSY, MAP

main81260-20130-03iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

GRAY,TRIM1#

sub81260-20130

main81260-20130-04iCT170,ST17#..EXG,EXS,G,X198712-198911

BLUE,TRIM8#

sub81260-20130

main81260-20130-06iCT170,ST17#..EXG,EXS,G,X198712-199202

SABLE,TRIM4#

sub81260-20130

main81260-20130-14iCT170,ST17#..EXG,EXS,G,X198911-199202

DARK BLUE,TRIM8#

sub81260-20130

main81260-20150-03iST170..Z;AT175,ST171..MX,SXR198712-199202

GRAY,TRIM1#

sub81260-20150

main81260-20150-03iST170..Z;AT175,ST171..MX,SXR198712-199202

sub81260-20150

main81260-20150-04iCT170,ST17#..EXG,EXS,G,X198712-198911

sub81260-20150

main81260-20150-04iST170..Z;AT175..MX198712-198911

BLUE,TRIM8#

sub81260-20150

main81260-20150-06iST170..Z;AT175..MX198712-199202

sub81260-20150

main81260-20150-06iCT170,ST17#..EXG,EXS,G,X198712-199202

SABLE,TRIM4#

sub81260-20150

main81260-20150-14iST170..Z198911-199202

DARK BLUE,TRIM8#

sub81260-20150

main81260-20150-14iST170..Z198911-199202

sub81260-20150

81260BBULB(FOR GLOVE BOX)

main90981-11018iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

81260CBULB(FOR MAP LAMP)

main90981-12005iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

main90981-12014iCT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,GT,GTR,MX,SXR198712-199202

81261LENS AND COVER, MAP LAMP

main81261-20130-03iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

GRAY,TRIM1#

sub81261-20130

sub81260-20130

main81261-20130-04iCT170,ST17#..EXG,EXS,G,X198712-198911

BLUE,TRIM8#

sub81261-20130

sub81260-20130

main81261-20130-06iCT170,ST17#..EXG,EXS,G,X198712-199202

SABLE,TRIM4#

sub81261-20130

sub81260-20130

main81261-20130-14iCT170,ST17#..EXG,EXS,G,X198911-199202

DARK BLUE,TRIM8#

sub81261-20130

sub81260-20130

main81261-20150-03iST170..Z;AT175,ST171..MX,SXR198712-199202

sub81261-20150

main81261-20150-03iST170..Z;AT175,ST171..MX,SXR198712-199202

GRAY,TRIM1#

sub81261-20150

main81261-20150-04iST170..Z;AT175..MX198712-198911

sub81261-20150

main81261-20150-04iCT170,ST17#..EXG,EXS,G,X198712-198911

BLUE,TRIM8#

sub81261-20150

main81261-20150-06iST170..Z;AT175..MX198712-199202

sub81261-20150

main81261-20150-06iCT170,ST17#..EXG,EXS,G,X198712-199202

SABLE,TRIM4#

sub81261-20150

main81261-20150-14iCT170,ST17#..EXG,EXS,G,X198911-199202

sub81261-20150

main81261-20150-14iCT170,ST17#..EXG,EXS,G,X198911-199202

DARK BLUE,TRIM8#

sub81261-20150

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-30090iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SELS,SXR198712-199202

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SELS,SXR198712-199202

9016445006

main90164-45006

9018904002

main90189-04002

9351013008

main93510-13008

9354024016

main93540-24016

15 parts on this diagram · 2 diagrams in section
