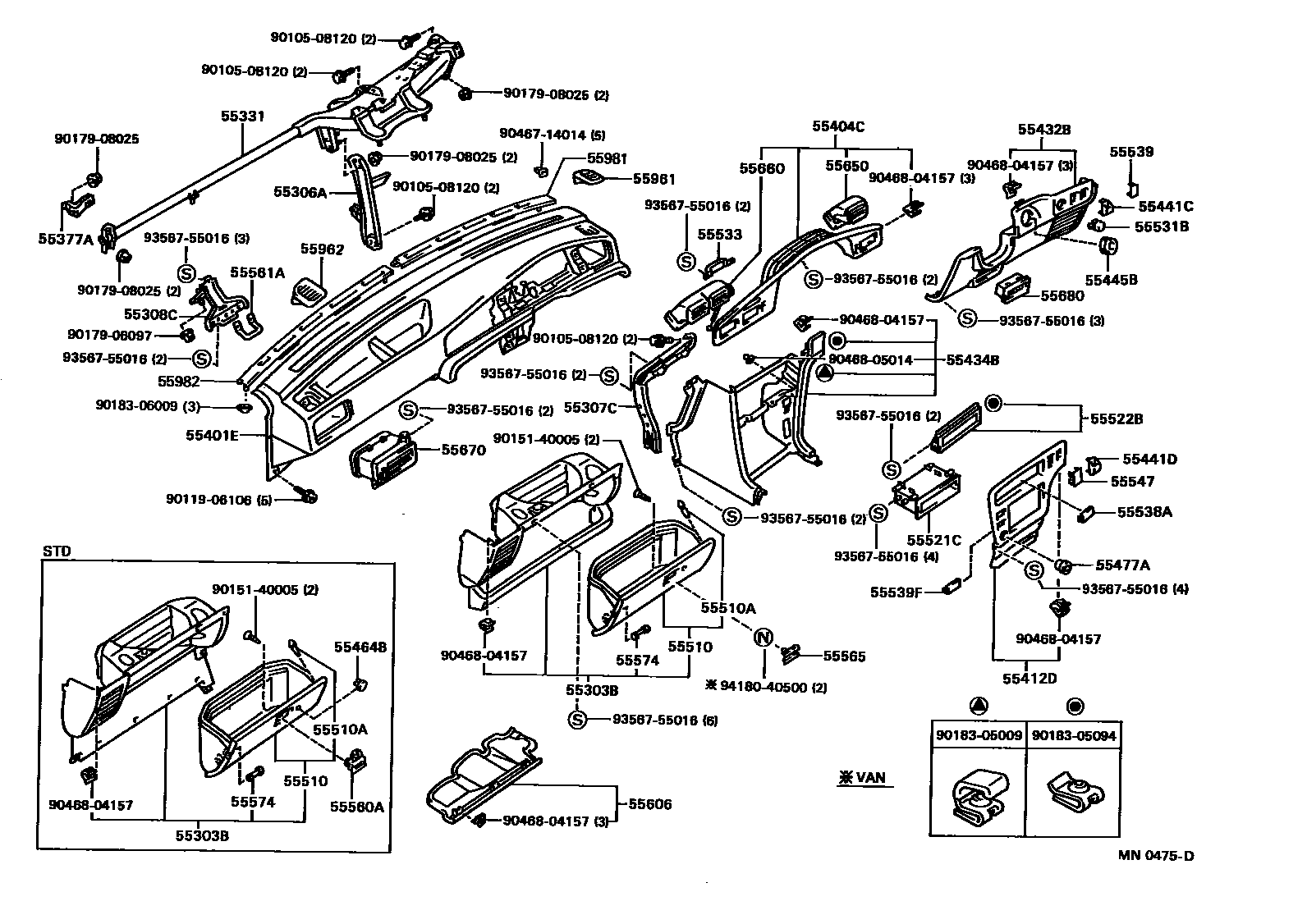

Toyota CORONA — INSTRUMENT PANEL & GLOVE COMPARTMENT

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-20070-03iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

GRAY,TRIM1#

sub55303-20070

main55303-20070-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub55303-20070

main55303-20070-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub55303-20070

main55303-20070-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55303-20070

main55303-20100-03iAT170,ET176..STD198712-199211

GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20140iAT17#,CT17#,ET176,ST17#198712-199211

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20120iAT17#,CT17#,ET176,ST17#198712-198809

sub55307-20121

sub55434-20111

main55307-20121iAT17#,CT17#,ET176,ST17#198809-199211

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20130iAT17#,CT17#,ET176,ST17#198712-199211

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20090iAT17#,CT17#,ET176,ST17#198712-199211

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-20030iAT17#,CT17#,ET176,ST17#198712-199211

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20510-03iAT17#,CT17#,ET176,ST17#198712-199211

GRAY,TRIM1#

sub55401-20510

main55401-20510-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub55401-20510

main55401-20510-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub55401-20510

main55401-20510-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55401-20510

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-20250iAT17#,CT17#,ET176,ST17#198712-199211

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20320iAT17#,CT17#,ET176,ST17#198712-199211

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20180-03iAT170,CT17#,ET176,ST17#198712-198808

GRAY,TRIM1#

main55432-20180-04iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198808

BLUE,TRIM8#

main55432-20180-06iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198808

SABLE,TRIM4#

main55432-20240-03iAT17#,CT17#,ET176,ST17#198808-199211

GRAY,TRIM1#

sub55432-20240

main55432-20240-04iAT175;AT170,CT170,ST17#..MTM..(DX,EXG,EXS,G,GX,MX,X,Z)198808-198911

BLUE,TRIM8#

sub55432-20240

main55432-20240-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198808-199211

SABLE,TRIM4#

sub55432-20240

main55432-20240-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55432-20240

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20110-03iAT17#,CT17#,ET176,ST17#198712-198809

GRAY,TRIM1#

sub55434-20111

sub55307-20121

main55434-20110-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198809

BLUE,TRIM8#

sub55434-20111

sub55307-20121

main55434-20110-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198809

SABLE,TRIM4#

sub55434-20111

sub55307-20121

main55434-20111-03iAT17#,CT17#,ET176,ST17#198809-199211

GRAY,TRIM1#

sub55434-20111

main55434-20111-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198809-198911

BLUE,TRIM8#

sub55434-20111

main55434-20111-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198809-199211

SABLE,TRIM4#

sub55434-20111

main55434-20111-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55434-20111

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-11iCT176,ET176..DX198911-199211

BLACK,TRIM1#,4#,8#

sub55441-20140

main55441-20140-11iAT17#,CT17#,ET176,ST17#198712-199211

BLACK,TRIM1#

sub55441-20140

main55441-20140-11iET176,ST171..GT,GTR,STD,SXR198911-199211

BLACK,TRIM1#,4#

sub55441-20140

main55441-20140-26iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

SABLE,TRIM4#

sub55441-20140

main55441-20140-34iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

DARK BLUE,TRIM8#

sub55441-20140

55441DBOX, INSTRUMENT PANEL COIN

main55441-20140-11iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198712-199211

BLACK,TRIM1#

sub55441-20140

main55441-20140-11iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199211

BLACK,TRIM1#,4#

sub55441-20140

main55441-20140-11iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199211

BLACK,TRIM1#,4#,8#

sub55441-20140

main55441-20140-26iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

SABLE,TRIM4#

sub55441-20140

main55441-20140-34iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

DARK BLUE,TRIM8#

sub55441-20140

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20150iAT175;AT170,CT17#,ET176,ST17#..MTM198712-199211

55464BCOVER, CHOKE KNOB HOLE

main55464-14010-03iAT170,ET176..STD198712-199211

GRAY,TRIM1#

sub55464-14010

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-20070iAT17#,CT17#,ET176,ST17#198712-199211

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20120-03iAT17#,CT17#,ET176,ST17#198712-199211

GRAY,TRIM1#

sub55550-20120

main55550-20120-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub55550-20120

main55550-20120-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub55550-20120

main55550-20120-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55550-20120

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iAT17#,CT17#,ET176,ST17#198712-199211

55521CCOVER, STEREO OPENING

main55521-16030iAT17#,CT17#,ET176,ST170198712-198911

main55521-16030iAT17#,CT17#,ET176,ST170198911-199211

main55521-16030iST171..4FC..EXG199005-199007

SUPER ROOMY

55522BCOVER, RADIO TUNER OPENING

main55522-32010iAT170,ET176..STD198712-199211

sub55522-20070

55531BCOVER, CHOKE KNOB HOLE

main55531-32020iAT17#,CT17#,ET176,ST17#198712-199211

55533COVER, AUTO CLOCK HOLE

main55533-20050iAT170,ET176..STD198712-199211

55538ACOVER, COOLER SWITCH HOLE

main55538-16020iAT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD198712-199211

55539COVER, SPARE SWITCH HOLE

main55539-24010-01iCT176,ET176..DX,GX198911-199211

BLACK,TRIM1#,4#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-01iET176,ST171..GT,GTR,STD,SXR198911-199211

BLACK,TRIM1#,4#,8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-01iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199211

BLACK,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-13iAT17#,CT17#,ET176,ST17#198712-198911

GRAY,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-44iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

DARK BLUE,TRIM8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-46iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

SABLE,TRIM4#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

55539FCOVER, SPARE SWITCH HOLE

main55539-24010-01iET176..STD198911-199211

BLACK,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-20030-01iAT170..DX198712-199211

BLACK,TRIM1#

sub55547-20030

main55547-20030-01iCT176,ET176..DX,GX198712-199211

BLACK,TRIM1#,4#

sub55547-20030

main55547-20030-01iCT176,ET176..DX,GX198712-199211

BLACK,TRIM1#,4#,8#

sub55547-20030

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16040-03iAT170,ET176..STD198712-199211

SHADOW GRAY,TRIM1#

sub55560-16050

sub55560-16040

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12040iAT17#,CT17#,ET176,ST17#198712-199211

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20060-03iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

SHADOW GRAY,TRIM1#

sub55565-20040

sub55565-20060

main55565-20060-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

DARK BLUE,TRIM8#

sub55565-20040

sub55565-20060

main55565-20060-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub55565-20040

sub55565-20060

main55565-20060-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55565-20040

sub55565-20060

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iAT17#,CT17#,ET176,ST17#198712-199211

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-20040iST170..EXS,X;CT17#,ST171..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS198712-199211

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20170iAT17#,CT17#,ET176,ST17#198712-199211

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20130iAT17#,CT17#,ET176,ST17#198712-199211

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20100-03iAT17#,CT17#,ET176,ST17#198712-199211

GRAY,TRIM1#

sub55670-20100

main55670-20100-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub55670-20100

main55670-20100-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub55670-20100

main55670-20100-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55670-20100

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-13iAT17#,CT17#,ET176,ST17#198911-199211

SHADOW GRAY,TRIM1#

sub55680-14030

main55680-14030-16iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199211

SABLE,TRIM4#

sub55680-14030

main55680-14030-24iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55680-14030

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20110-03iAT17#,CT17#,ET176,ST17#198712-199211

GRAY,TRIM1#

sub55961-20110

main55961-20110-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub55961-20110

main55961-20110-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub55961-20110

main55961-20110-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55961-20110

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20130-03iET176..DX,STD;AT17#,CT17#,ST17#198712-199211

GRAY,TRIM1#

sub55962-20130

main55962-20130-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub55962-20130

main55962-20130-06iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub55962-20130

main55962-20130-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub55962-20130

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20060-E0iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

main55981-20060-P0iAT17#,CT17#,ET176,ST17#198712-199211

GRAY,TRIM1#

main55981-20060-R8iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

main55981-20060-W3iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-20060-E0iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

main55982-20060-P0iAT17#,CT17#,ET176,ST17#198712-199211

GRAY,TRIM1#

main55982-20060-R8iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

BLUE,TRIM8#

main55982-20060-W3iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9017906097

main90179-06097

9017908025

main90179-08025

9018305009

main90183-05009

9018305094

main90183-05094

9018306009

main90183-06009

9046714014

main90467-14014

9046804157

main90468-04157

9046805014

main90468-05014

9356755016

main93567-55016

9418040500

main94180-40500

52 parts on this diagram · 1 diagram in section
