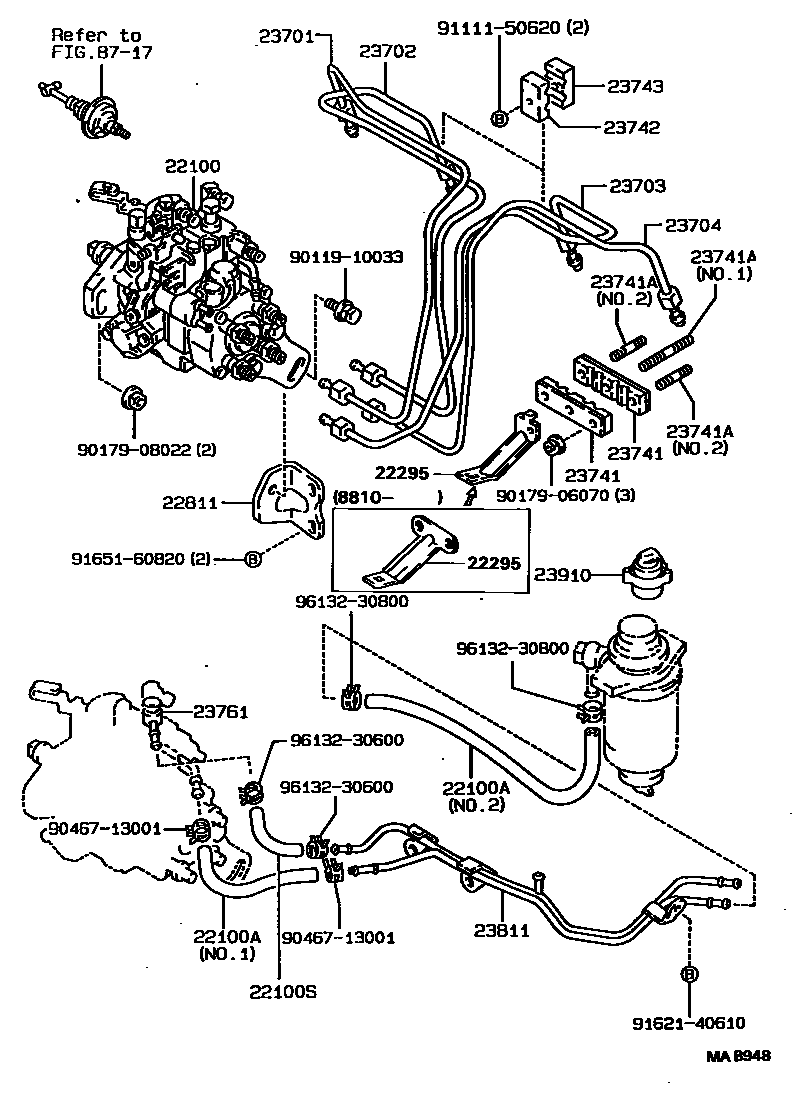

Toyota CORONA — INJECTION PUMP ASSEMBLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
sub95337-06020
22811STAY, INJECTION PUMP, NO.1
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
sub23741-64011
23742CLAMP, INJECTION PIPE, NO.2
23743CLAMP, INJECTION PIPE, NO.3
23761PIPE, NOZZLE LEAKAGE, NO.1
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23910HEATER ASSY, FUEL
8717
9011910033
main90119-10033
9017906070
main90179-06070
9017908022
main90179-08022
9046713001
main90467-13001
9111150620
main91111-50620
9162140610
main91621-40610
9165160820
main91651-60820
9613230600
main96132-30600
9613230800
main96132-30800
26 parts on this diagram · 2 diagrams in section
