Toyota CORONA — INDICATOR

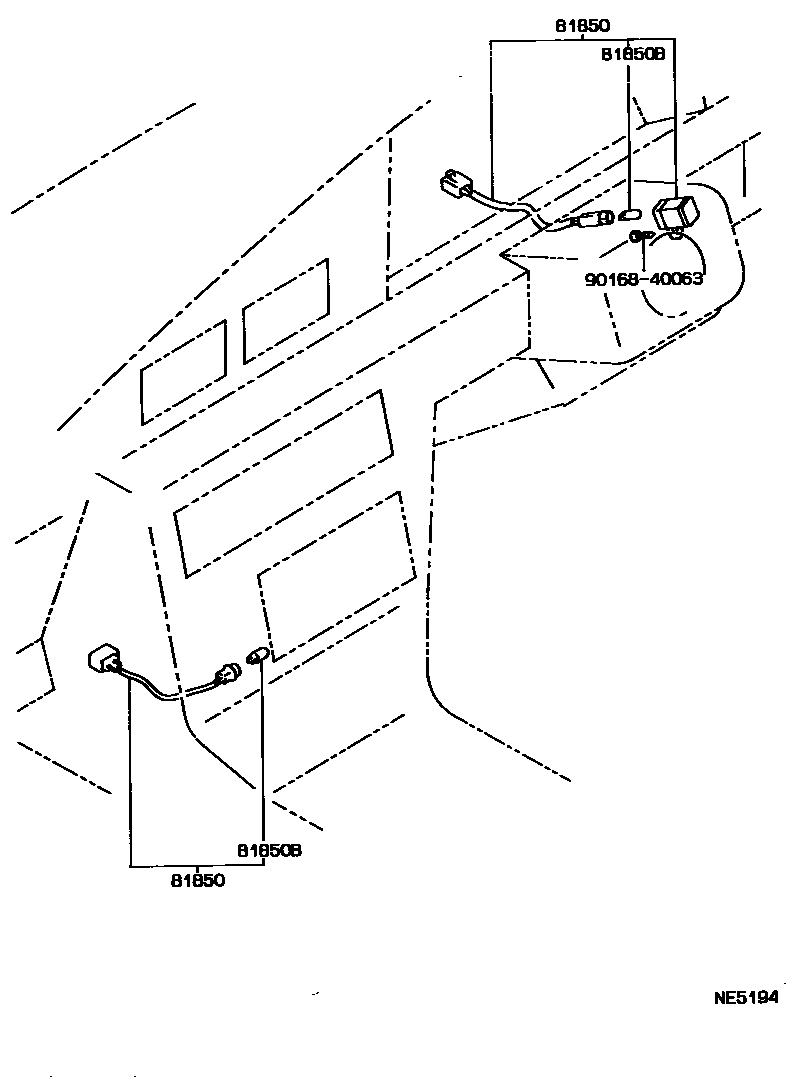

81850LAMP ASSY, INDICATOR

main81850-20190iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

main81850-20220iCT176..5F;AT175,ET176,ST171..(3FC,4FC,5F)..(EXG,G,GT,GTR,GX,MX,SXR);AT170,CT170,ET176,ST170..(4F,4FC,5F)..(DX,EXS,GX,MX,STD,X,Z)..(CBR,CI,DSL)198712-199204

sub81850-20221

main81850-20300iAT17#,CT17#,ET176,ST17#198911-199211

81850BBULB, INDICATOR LAMP

main90981-11014iAT17#,CT17#,ET176,ST17#198712-199211

9016840063

main90168-40063

3 parts on this diagram · 1 diagram in section
