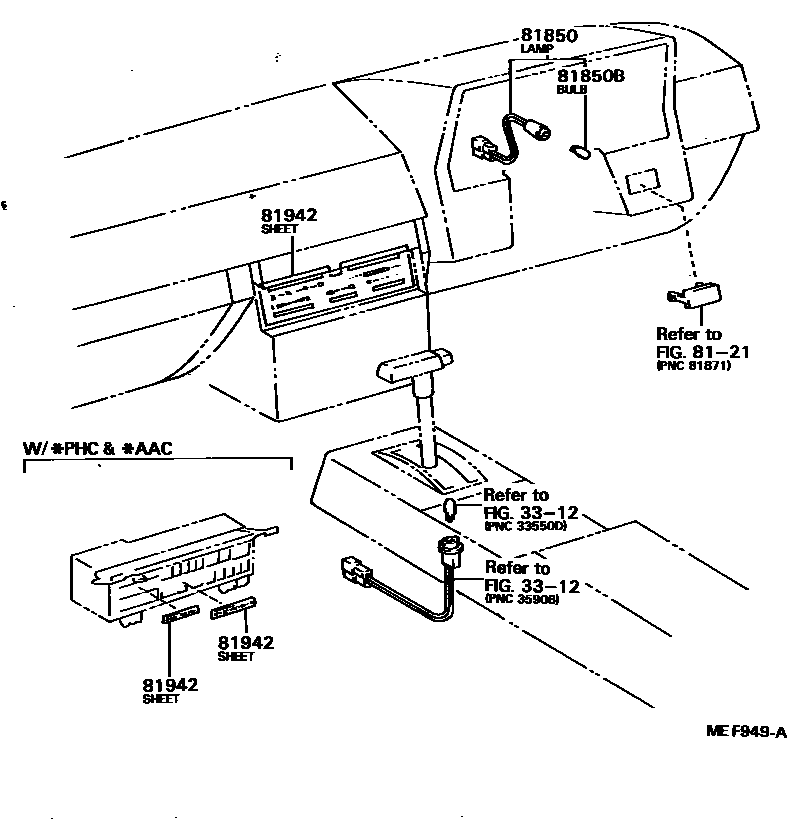

Toyota CORONA — INDICATOR

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

8121INTERIOR LAMP

→ Go to FIG 81-21

81850LAMP ASSY, INDICATOR

main81850-20130i198301-198711

81850BBULB, INDICATOR LAMP

main90981-11018i198301-198711

81942SHEET, HEATER CONTROL NAME

main81942-20020i198301-198508

main81942-20021i198508-198711

main81942-20030i198301-198508

W/*AAC

main81942-20031i198508-198711

W/*AAC

main81942-20110i198508-198711

*PHC,W/*AAC,TEMP

main81942-20140i198508-198711

*PHC,W/*AAC,AUTO

5 parts on this diagram · 1 diagram in section

INDICATOR for Toyota CORONA

This section contains 5 genuine Toyota parts for the INDICATOR system of the Toyota CORONA. Key components include: SHIFT LEVER & RETAINER, INTERIOR LAMP, LAMP ASSY, INDICATOR, BULB, INDICATOR LAMP, SHEET, HEATER CONTROL NAME.
