Toyota CORONA — INDICATOR

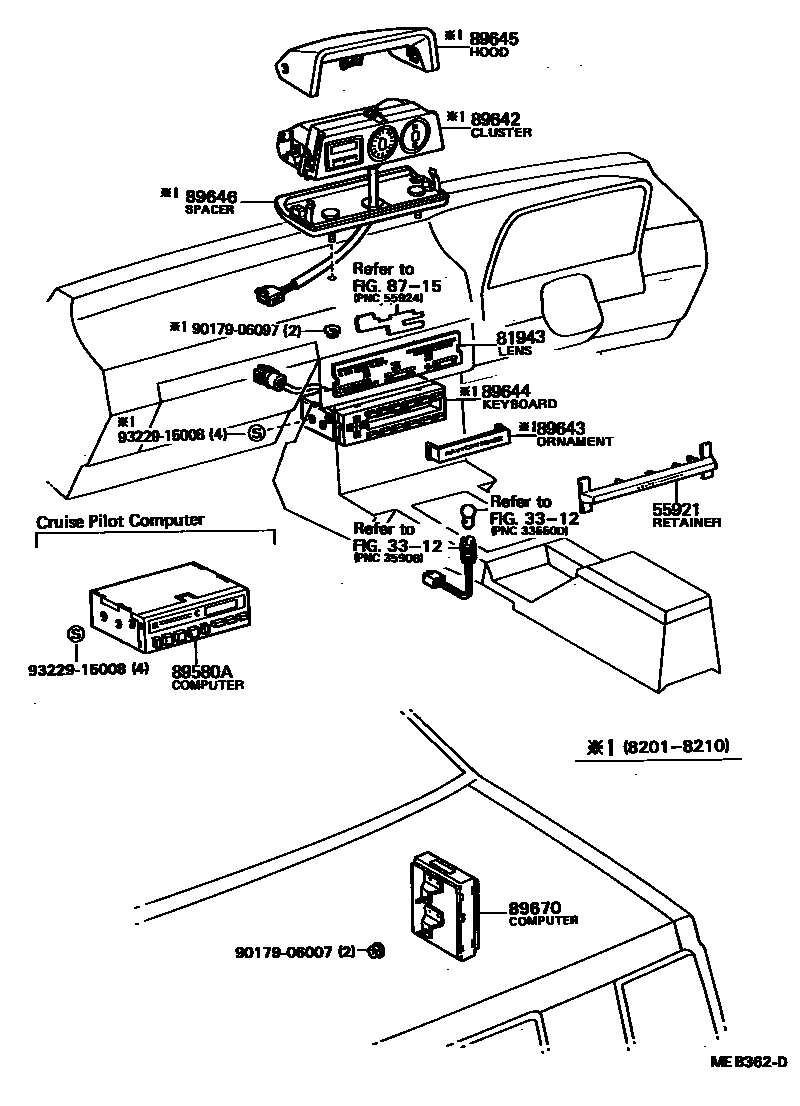

Parts diagram
3312SHIFT LEVER & RETAINER
→ Go to FIG 33-12
55921RETAINER, HEATER CONTROL
main55921-14120i198201-198508
main55921-14130i198201-198508
W/AUTOMATIC AIR CONDITIONER
81943LENS, HEATER CONTROL INDICATOR
main81943-14280i198201-198508
main81943-14290i198201-198508
W/AUTOMATIC AIR CONDITIONER
main81943-20070i198201-198209
main81943-20071i198209-198612
main81943-20110i198201-198209
W/AUTOMATIC AIR CONDITIONER
main81943-20111i198209-198508
W/AUTOMATIC AIR CONDITIONER
main81943-20130i198612-199804
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
89580ACOMPUTER ASSY, CRUISE PILOT
main89580-14030i198201-198210
main89580-14080i198210-198310
89642CLUSTER, COMPASS DISPLAY
main89642-14010i198201-198210
89643ORNAMENT, COMPASS DISPLAY
main89643-14010i198201-198210
89644KEYBOARD, DRIVE PILOT COMPUTER
main89644-12010i198201-198210
89645HOOD, DRIVE PILOT COMPUTER DISPLAY
main89645-14010-04i198201-198210
BLUE,BLUE,TRIM8#
main89645-14010-06i198201-198210
SADDLE BROWN,BROWN,TRIM4#
89646SPACER, DRIVE PILOT COMPUTER
main89539-20020-04i198201-198210
BLUE,BLUE,TRIM8#
main89539-20020-06i198201-198210
SADDLE BROWN,BROWN,TRIM4#
89670COMPUTER ASSY, TELLTALE WARNING(FOR SPEAK MONITOR)
main89670-20010i198201-198310
main89670-22010i198201-198310
9017906007
main90179-06007
9017906097
main90179-06097
9322915008
main93229-15008

14 parts on this diagram · 1 diagram in section

INDICATOR for Toyota CORONA

This section contains 14 genuine Toyota parts for the INDICATOR system of the Toyota CORONA. Key components include: SHIFT LEVER & RETAINER, RETAINER, HEATER CONTROL, LENS, HEATER CONTROL INDICATOR, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT, COMPUTER ASSY, CRUISE PILOT.
