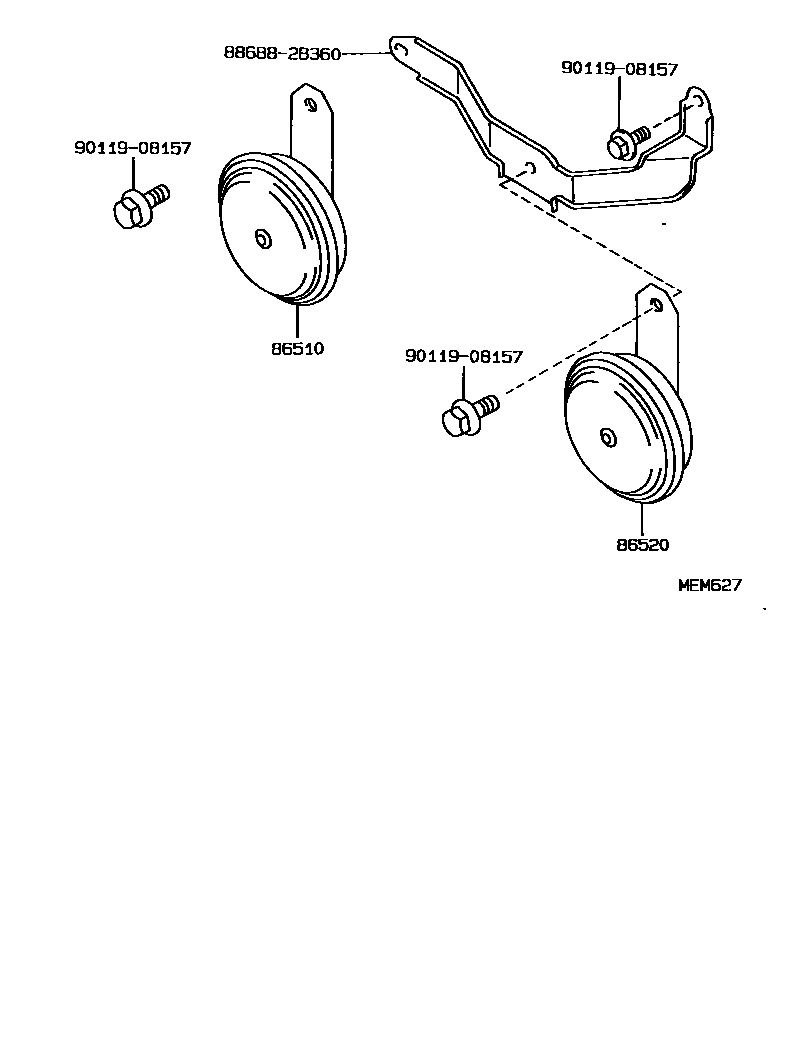

Toyota CORONA — HORN

86510HORN ASSY, HIGH PITCHED

main86510-20151iAT17#,CT17#,ET176,ST17#198712-198911

main86510-20160iAT17#,CT17#,ET176,ST17#198712-198911

main86510-20210iAT17#,CT17#,ET176,ST17#198911-199211

86520HORN ASSY, LOW PITCHED

main86520-20161iAT17#,CT17#,ET176,ST17#198712-198911

main86520-20170iAT17#,CT17#,ET176,ST17#198712-198911

main86520-20220iAT17#,CT17#,ET176,ST17#198911-199211

886882B360BRACKET, COOLER DIAPHRAGM

main88688-2B360

9011908157

main90119-08157

4 parts on this diagram · 1 diagram in section
