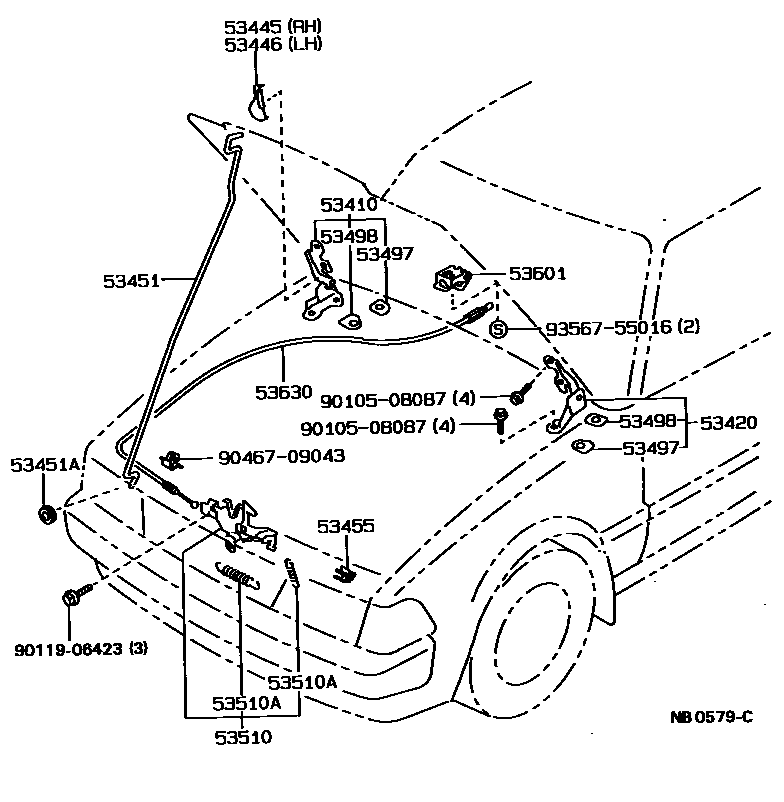

Toyota CORONA — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-20100iAT17#,CT17#,ET176,ST17#198712-199211

53420HINGE ASSY, HOOD, LH

main53420-20090iAT17#,CT17#,ET176,ST17#198712-199211

53445COVER, HOOD HINGE, RH

main53445-20010iAT17#,CT17#,ET176,ST17#198712-199211

53446COVER, HOOD HINGE, LH

main53446-20010iAT17#,CT17#,ET176,ST17#198712-199211

53451ROD, HOOD SUPPORT

main53451-20080iAT17#,CT17#,ET176,ST17#198712-199211

sub53451-20070

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15012iAT17#,CT17#,ET176,ST17#198712-199211

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iAT17#,CT17#,ET176,ST17#198712-199211

53497PAD, HOOD HINGE, NO.1

main53497-20020iAT17#,CT17#,ET176,ST17#198712-199211

sub53497-12011

53498PAD, HOOD HINGE, NO.2

main53498-20010iAT17#,CT17#,ET176,ST17#198712-199211

sub53498-12011

53510LOCK ASSY, HOOD

main53510-20130iAT17#,CT17#,ET176,ST17#198712-199211

main53510-20310iAT17#,CT170,ST17#198911-199202

sub53510-20330

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iAT17#,CT17#,ET176,ST17#198712-199211

main90506-09044iAT17#,CT170,ST17#198911-199202

WD=0.9,CW=9.5

main90506-20008iAT17#,CT17#,ET176,ST17#198712-199211

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020iET176,ST171..GT,GTR,STD,SXR199005-199008

sub53601-20060

main53601-10020-16iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199211

SABLE,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-23iCT176..5F;CT170,ET176..(3FC,4FC,5F)..(EXS,GX);AT175,ET176,ST171..(4F,4FC,5F)..(DX,EXG,G,GT,GTR,GX,STD,SXR)198712-199008

GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-24iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198809

DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

main53601-10020-34iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

main53601-10020-B1iAT17#,CT17#,ET176,ST17#199008-199211

SHADOW GRAY,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-J0iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198809-198911

DARK BLUE,TRIM8#

sub53601-10020

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20220iAT17#,CT17#,ET176,ST17#198712-199211

9010508087

main90105-08087

9011906423

main90119-06423

9046709043

main90467-09043

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
