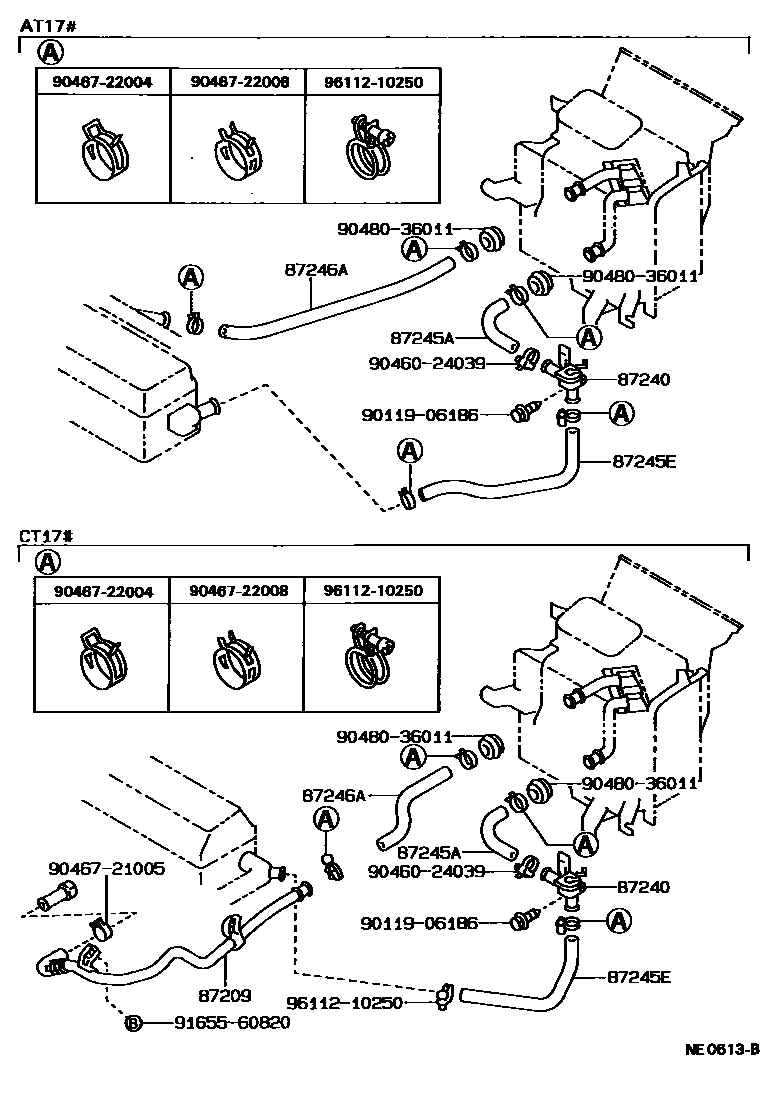

Toyota CORONA — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87209HOSE SUB-ASSY, WATER

main87209-12400iCT17#198712-199211

main87209-12440iCT170..4FC;CT170..5F..(GX,SELS)199106-199202

87240VALVE ASSY, HEATER WATER

main87240-20230iAT17#,CT17#,ET176,ST17#198712-199211

87245AHOSE, HEATER WATER, INLET A

main87245-2B220iAT17#,CT17#,ET176,ST17#198712-199211

87245EHOSE, HEATER WATER, INLET E

main87245-2B240iAT17#198712-199202

main87245-2B250iST170198712-198911

main87245-2B260iST17#..EFI198712-199202

main87245-2B270iCT176;CT170..4FC;CT170..5F..(GX,SELS)198712-199211

main87245-2B280iET176198712-199211

87246AHOSE, HEATER WATER, OUTLET A

main87245-2B290iAT170198712-199106

main87245-2B291iAT170199106-199109

sub87245-2B292

main87245-2B292iAT170199109-199202

main87245-2B300iST17#198712-199202

main87245-2B310iCT176;CT170..4FC;CT170..5F..(GX,SELS)198712-199211

main87245-2B320iET176198712-199211

main87245-2B470iAT175198808-199106

main87245-2B471iAT175199106-199109

sub87245-2B472

main87245-2B472iAT175199109-199202

9011906186

main90119-06186

9046024039

main90460-24039

9046721005

main90467-21005

9046722004

main90467-22004

9046722008

main90467-22008

9048036011

main90480-36011

9165560820

main91655-60820

9611210250

main96112-10250

13 parts on this diagram · 3 diagrams in section
