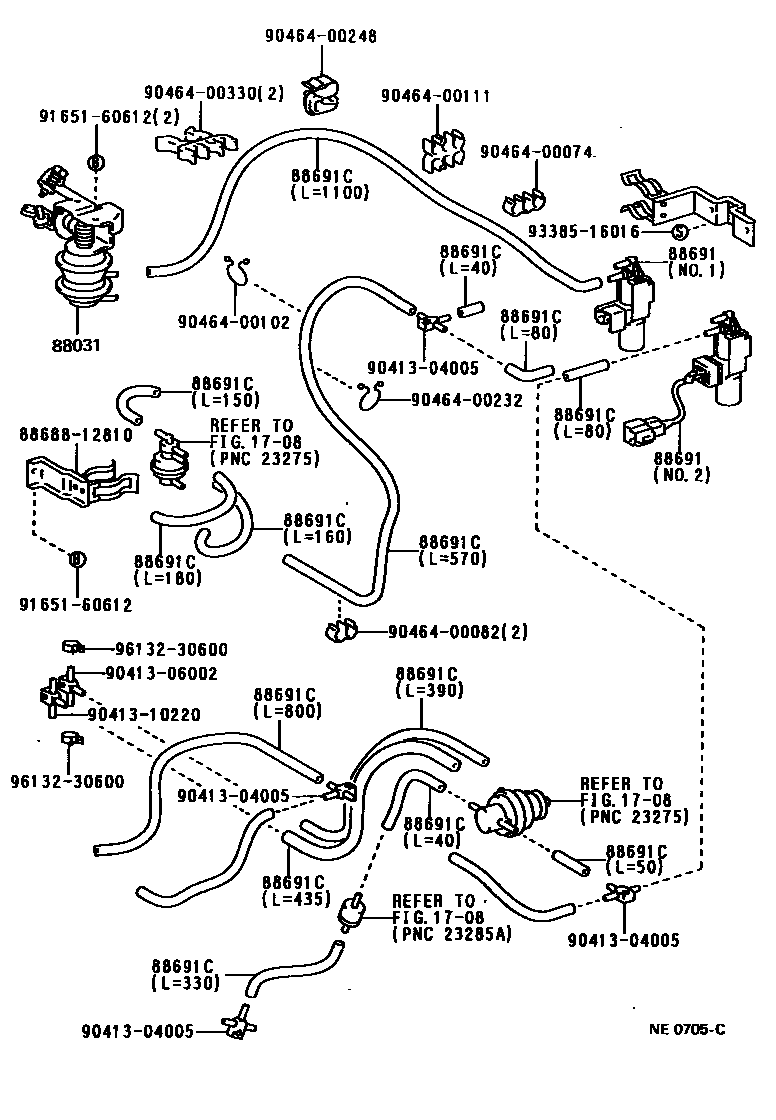

Toyota CORONA — HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1708

88031ACTUATOR SET, IDLE-UP

main88031-12180iAT170..GX198712-198910

sub88031-12181

main88031-12181iAT170..DX,EXS,MX,STD198910-198911

main88031-12200iET176198911-199211

main88031-16070iET176198712-198805

sub88031-16080

main88031-16080iET176198805-198911

main88031-20080iCT170..4FC..EXS198712-199211

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-20850iCT17#198712-199211

main88690-2B400iCT176..4FC199007-199211

main88690-2B400iCT170..4FC199007-199202

main88691-10010iAT17#,ST17#198712-199202

main88691-12140iAT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z198712-198911

main88691-12150iAT17#,ST170..GX,SELS198911-199202

main88691-16050iET176198712-199211

main88691-22100iCT170198712-199211

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90445-08234iCT17#..DX,EXS,MX198712-199211

main90445-08260iCT17#..DX,EXS,MX198712-199211

main90445-11031iAT170..GX198712-198911

main90999-92002iAT175198712-198911

main90999-92002iAT175198712-199202

main90999-92002iAT175198712-198906

main90999-92002iAT175198712-199211

main90999-92002iAT175198712-199202

main90999-92002iAT175198712-199202

main90999-92002iAT170..MTM198712-198911

main90999-92002iST170..EFI198906-199202

main90999-92002iST171..GT,GTR198712-199202

main90999-92002iET176198712-199211

main90999-92002iET176198911-199211

main90999-92002iST171..GT,GTR198712-198911

main90999-92002iET176..4F198906-198911

main90999-92002iET176..4F198906-198911

main90999-92003iAT170198712-198911

main90999-92003iAT170198712-198911

main90999-92003iAT170198712-199202

main90999-92003iST170198712-198911

main90999-92003iST170198712-199211

main90999-92003iAT170,ST17#..DX,EXG,EXS,G,GX,SELS,SXR,X,Z198911-199104

main90999-92003iAT170;ET176..3FC198712-198906

main90999-92003iET176198712-199211

main90999-92003iAT175..GX,SELS198712-199202

main90999-92003iAT170198906-198911

main90999-92003iET176198712-198911

main90999-92003iET176198712-198911

main90999-92003iST171..GT,GTR198911-199202

main90999-92004iAT170..4FC..(EXS,MX)198808-199202

main90999-92004iAT170..4FC198712-198911

main90999-92006iAT170..MTM198712-198911

main90999-92006iAT170..MTM198712-198911

main90999-92007iCT170..4FC..GX198712-198911

main95411-10044iAT170198712-198911

8868812810BRACKET, COOLER DIAPHRAGM

main88688-12810

9041304005

main90413-04005

9041306002

main90413-06002

9041310220

main90413-10220

9046400074

main90464-00074

9046400082

main90464-00082

9046400102

main90464-00102

9046400111

main90464-00111

9046400232

main90464-00232

9046400248

main90464-00248

9046400330

main90464-00330

9165160612

main91651-60612

9338516016

main93385-16016

9613230600

main96132-30600

18 parts on this diagram · 8 diagrams in section
