Toyota CORONA — HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1BLOWER 0002 1RADIATOR 0003 1��(�-� ����)

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20020iAT17#,CT17#,ET176,ST17#198712-199107

sub87103-26010

main87103-26010iAT17#,CT17#,ET176,ST17#199107-199211

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20100iAT17#,CT17#,ET176,ST17#198712-199211

87106ASERVO SUB-ASSY, DAMPER

main87106-20080iAT17#,CT170,ST170..SELS199104-199202

main87106-20080iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

NO.1,HEATER RADIATOR

main87106-20080iAT17#,CT170,ST170..GX198906-198911

main87106-20090iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

NO.2,HEATER RADIATOR

main87106-20090iAT17#,CT170,ST170..GX198906-198911

main87106-20090iAT17#,CT170,ST170..SELS199104-199202

main87106-20100iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z199106-199202

main87106-20100iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SELS,SXR,X,Z199106-199202

main87106-20100iAT175..GX198712-199202

main87106-20100iAT175..GX199106-199202

BLOWER

main87106-20100iAT17#,CT170,ST170..GX198906-198911

main87106-20180iAT17#,CT170,ST170..SELS,Z198911-199202

NO.1,HEATER RADIATOR

sub87106-20190

main87106-20180iAT17#,CT170,ST170..GX199106-199202

sub87106-20190

87130BLOWER ASSY, HEATER, FRONT

main87130-20340iST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD198712-199211

main87130-20360iAT170,CT170,ST170..GX198906-198911

main87130-20360iAT170,CT170,ST170..GX199106-199202

main87130-20360iST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)198712-199202

main87130-20420iAT175..GX198808-199202

main87130-20430iAT175..EXS,MX,SELS198808-199202

main87130-20430iAT175..GX198906-198911

main87130-20430iAT175..GX199106-199202

87138RESISTOR, HEATER BLOWER

main87138-20130iAT17#,CT17#,ET176,ST17#198712-199211

main88635-20080iAT170..5F..MX198712-198911

main88635-20080iAT17#,CT170,ST170..GX,SELS,Z198911-199202

9011906042

main90119-06042

9011906088

main90119-06088

9017906239

main90179-06239

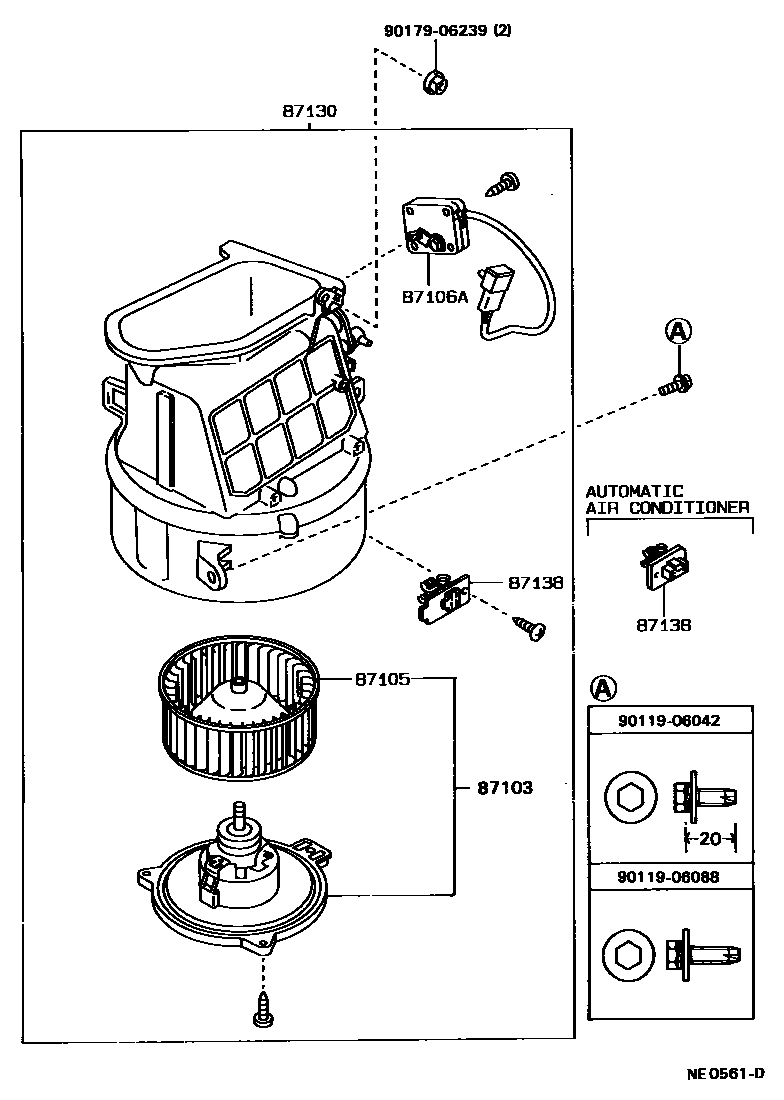

8 parts on this diagram · 3 diagrams in section
