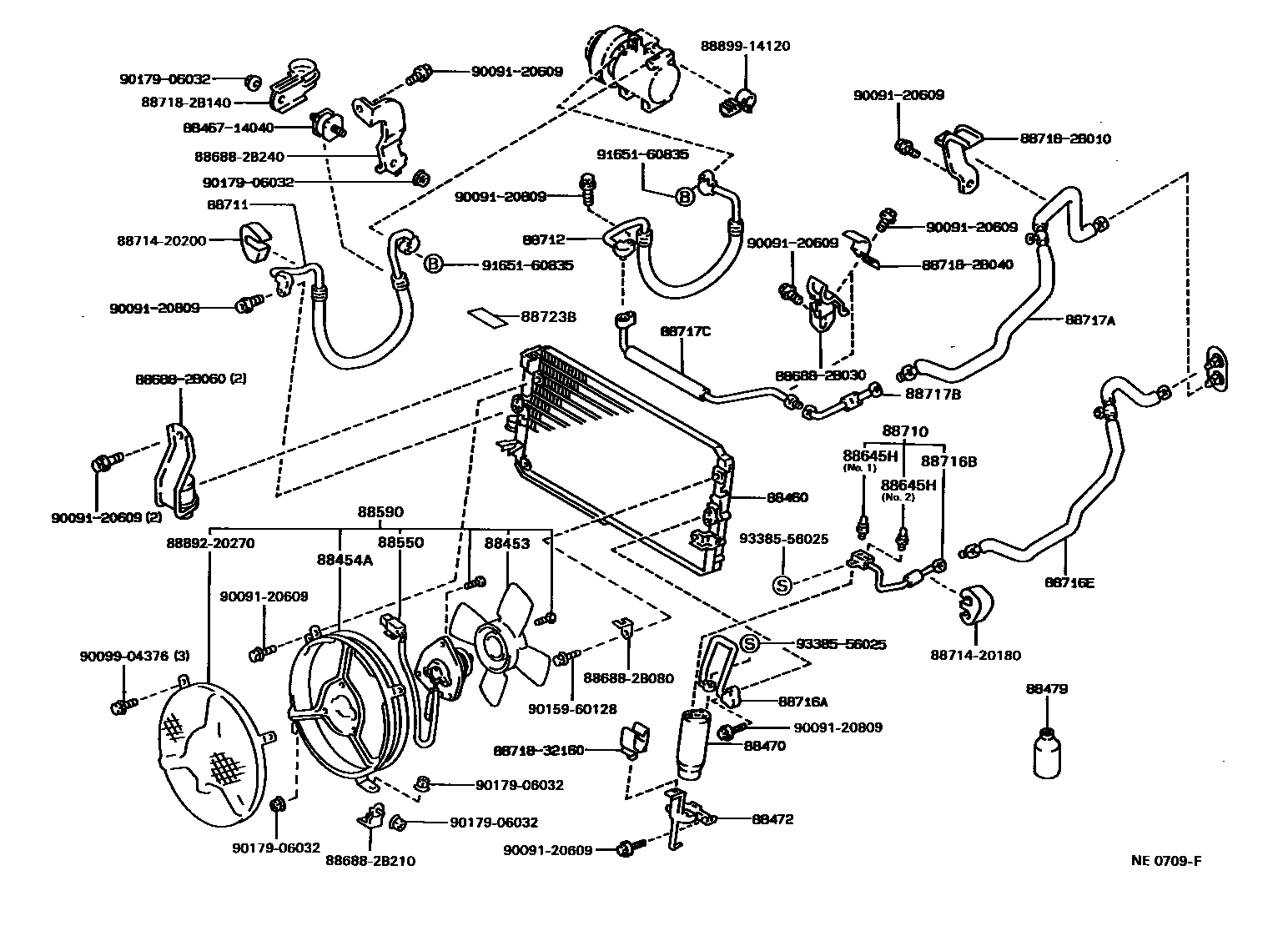

Toyota CORONA — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88453FAN, COOLING (FOR CONDENSER)

main88453-20030iAT17#,ET176,ST17#198712-199211

main88453-20030iCT176..4FC198911-199211

FRONT

main88453-32020iCT170..4FC..GX198712-199211

REAR

main88453-32020iCT17#..DX,GX198712-199211

88454ASHROUD, FAN

main88454-20060iAT17#,ST170..GX198712-199211

main88454-20060iCT176..4FC198911-199211

FRONT

main88454-20070iCT170198712-199211

REAR

main88454-20070iCT170..EXS,MX198712-199211

main88454-32030iST171..GT,GTR198712-198911

88460CONDENSER ASSY, COOLER

main88460-20250iCT170198712-199211

main88460-20280iAT17#,ET176,ST17#198712-199211

88470RECEIVER & DRYER ASSY, COOLER

main88471-12010iCT170..EXS198712-198805

sub88471-12040

main88471-16040iCT170198805-199211

sub88471-16050

88472BRACKET, RECEIVER TANK, NO.1

main88473-20040iCT170..GX198712-199211

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iAT17#,ET176,ST17#198712-198911

sub90986-02004

sub90986-02005

main90986-02004iCT170;AT175,ST170..GX,SELS;AT170..MTM..(GX,SELS)198911-199202

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iST171..GT,GTR198712-198911

main88550-12120iCT17#..DX,GX198712-199211

main88550-12120iCT170..4FC..GX198712-199211

REAR

main88550-20040iAT17#,ET176,ST17#..DX,EXG,EXS,G,GT,GTR,GX,STD,SXR,X,Z198712-199211

main88550-20040iCT176..4FC198911-199211

FRONT

88590BLOWER ASSY, W/SHROUD

main88590-20100iST171..GT,GTR198712-198911

main88590-20170iCT170..GX198712-199211

main88590-20170iCT170..4FC..GX198712-199211

REAR

main88590-20180iET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,SXR,X,Z198712-199211

main88590-20180iCT176..4FC198911-199211

FRONT

88645HSWITCH, PRESSURE NO.1

main88645-20010iET176..DX,STD198712-199211

main88645-20010iCT176198906-199211

NO.2

main88645-30280iCT176198712-198909

sub88645-30281

main88645-30281iCT170;AT17#,ST170..SELS198909-199211

main88645-30281iCT176198909-199211

NO.1

88710TUBE ASSY, AIR CONDITIONER

main88706-20010iCT170..EXS198712-198805

main88706-20040iCT170..GX198805-199211

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-20620iCT170..GX198712-198911

sub88711-20680

main88711-20650iET176198712-199211

sub88711-2B220

main88711-20680iST17#..EXS,GT,GTR,MX,X,Z198712-199202

sub88711-2B230

main88711-20740iCT176198911-199211

main88720-20330iAT17#..DX,EXS,GX198712-199202

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-20810iAT170..DX,STD198906-198911

main88712-20820iST17#..GT,GTR,MX,Z198712-198911

sub88712-2B690

main88712-20820iCT170..GX198712-198911

sub88712-2B690

main88712-20890iET176198712-199211

sub88712-2B740

main88712-2B020iST170..MX,Z198712-198906

sub88720-20280

main88712-2B030iST171..GT,GTR198712-198911

sub88720-20290

main88712-2B140iCT176198911-199211

sub88712-2B650

main88712-2B160iST171..GT,GTR198911-199202

sub88712-2B670

main88720-20260iAT170..EXS,MX198712-199202

main88720-20280iST170..EXS,GX,X,Z198712-199202

main88720-20290iST171198712-199202

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-2B500iCT170..EXS198712-198805

main88716-2B720iAT17#,ST170..GX198805-199211

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-2B510iCT170..EXS198712-198805

main88716-2B710iAT17#,ET176,ST17#198805-199211

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-2B440iAT170,ET176198712-199211

main88716-2B450iAT17#,ST17#..DX,EXG,EXS,G,GX,SXR,X,Z198712-199211

main88716-2B820iST171..GT,GTR198911-199202

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-20730iAT170,ET176198712-199211

main88717-20740iCT17#..DX,GX198712-199211

main88717-2B070iST171..GT,GTR198911-199202

main88717-2B110iAT175..GX,SELS198911-199202

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-20830iET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z198712-199211

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-20820iCT17#..DX,GX198712-199211

88723BLABEL, COOLER SERVICE CAUTION

main88723-12040iCT170198911-199211

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

886882B030BRACKET, COOLER DIAPHRAGM

main88688-2B030

886882B060BRACKET, COOLER DIAPHRAGM

main88688-2B060

886882B080BRACKET, COOLER DIAPHRAGM

main88688-2B080

886882B210BRACKET, COOLER DIAPHRAGM

main88688-2B210

886882B240BRACKET, COOLER DIAPHRAGM

main88688-2B240

8871420180HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20180

8871420200HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20200

887182B010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B010

887182B040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B040

887182B140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B140

8871832160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32160

8889220270BRACKET, COOLER EVAPORATOR MOUNTING

main88892-20270

8889914120COVER, EVAPORATOR

main88899-14120

9009120609

main90091-20609

9009120809

main90091-20809

9009904376

main90099-04376

9015960128

main90159-60128

9017906032

main90179-06032

9165160835

main91651-60835

9338556025

main93385-56025

40 parts on this diagram · 4 diagrams in section
