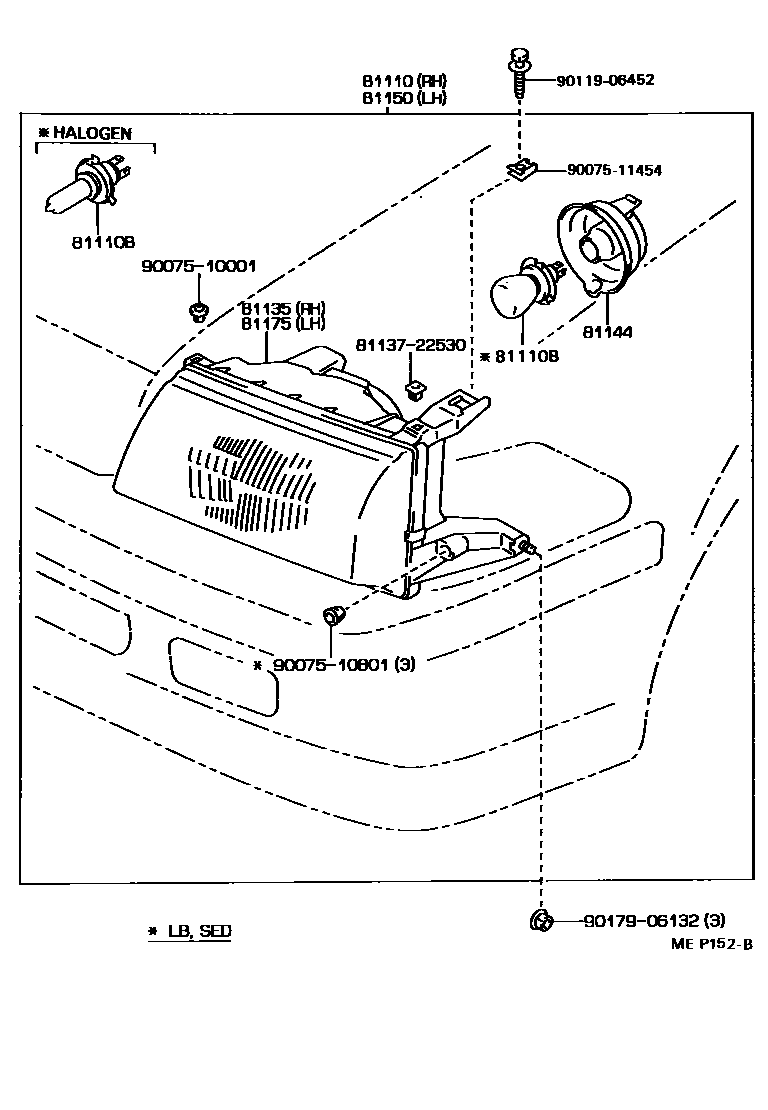

Toyota CORONA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-2B220iAT17#,CT17#,ET176,ST170..DX,GX,STD198712-199211

main81110-2B230iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main81110-2B230iAT17#,CT170,ST170..GX198906-198911

main81110-2B230iAT175,CT170..GX198906-199211

main81110-2B520iST171..4FC..EXG199005-199007

main81110-2B520iAT17#,CT170,ST170..DX,GX,SELS198911-199202

main81110-2B530iAT17#,CT170,ST170..SELS199005-199202

main81110-2B530iAT17#,CT170,ST170..SELS199005-199211

main81110-2B530iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iAT17#,CT170,ST170..GX198906-198911

sub90981-13058

main90981-13015iAT175,CT170..GX198906-199211

sub90981-13058

main90981-13015iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

sub90981-13058

main90981-13015iAT17#,CT170,ST170..SELS199005-199202

sub90981-13058

main90981-13022iST171..4FC..EXG199005-199007

main90981-13022iAT17#,CT17#,ET176,ST170..DX,GX,SELS,STD198712-199211

81135UNIT ASSY, HEADLAMP, RH

main81130-2B220iAT17#,CT17#,ET176,ST170..DX,GX,STD198712-199211

main81130-2B230iAT17#,CT170,ST170..GX198906-198911

main81130-2B230iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main81130-2B520iAT17#,CT170,ST170..DX,GX,SELS198911-199202

main81130-2B520iST171..4FC..EXG199005-199007

main81130-2B530iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

main81130-2B530iAT17#,CT170,ST170..SELS199005-199202

81144COVER, HEADLAMP, NO.1

main81139-20730iAT17#,CT17#,ET176,ST17#198712-198809

main90075-99016iAT17#,CT17#,ET176,ST17#198809-199211

81150HEADLAMP ASSY, LH

main81150-2B180iAT17#,CT17#,ET176,ST170..DX,GX,STD198712-199211

main81150-2B190iAT17#,CT170,ST170..GX198906-198911

main81150-2B190iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main81150-2B190iAT170,ST170..GX..(CBR,CI)198906-199211

main81150-2B480iST171..4FC..EXG199005-199007

main81150-2B480iAT17#,CT170,ST170..DX,GX,SELS198911-199202

main81150-2B490iAT17#,CT170,ST170..SELS199005-199202

main81150-2B490iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

main81150-2B490iAT17#,CT170,ST170..SELS199005-199211

81175UNIT ASSY, HEADLAMP, LH

main81170-2B180iAT17#,CT17#,ET176,ST170..DX,GX,STD198712-199211

main81170-2B190iAT17#,CT170,ST170..GX198906-198911

main81170-2B190iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main81170-2B480iST171..4FC..EXG199005-199007

main81170-2B480iAT17#,CT170,ST170..DX,GX,SELS198911-199202

main81170-2B490iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

main81170-2B490iAT17#,CT170,ST170..SELS199005-199202

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007510001

main90075-10001

9007510801

main90075-10801

9007511454

main90075-11454

9011906452

main90119-06452

9017906132

main90179-06132

12 parts on this diagram · 1 diagram in section
