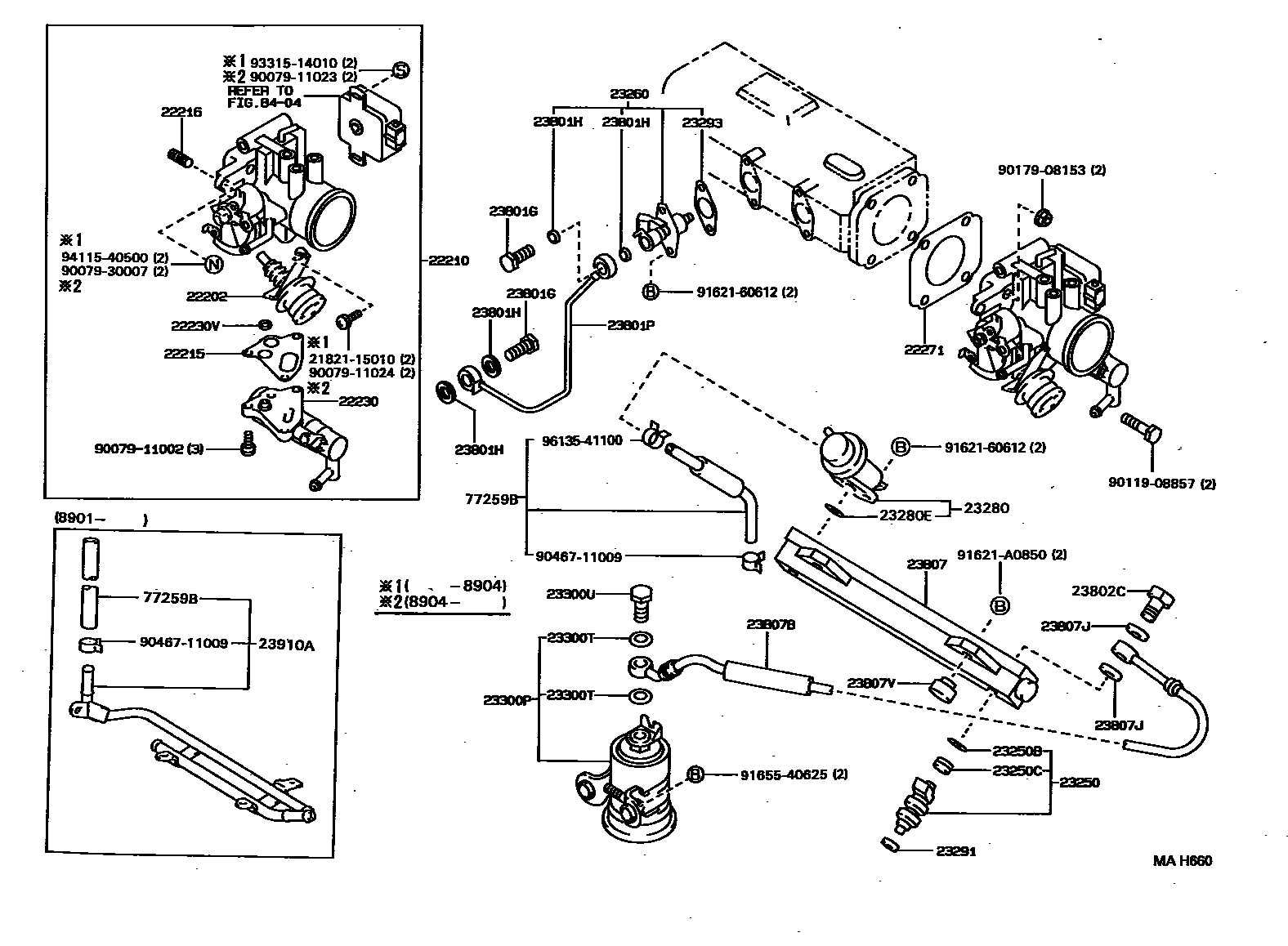

Toyota CORONA — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

22202DASH POT SUB-ASSY

main22202-15010i4AFE..AT175..5F198808-199202

main22202-15020i4AFE..AT175..4FC198808-199202

main22202-15030i5AFE..AT170..MTM198911-199202

main22202-15040i5AFE..AT170..4FC198911-199202

22210BODY ASSY, THROTTLE

main22200-74010i4SFI..ST170198712-198810

sub22200-74013

main22200-74013i4SFI..ST170198810-198902

sub22200-74014

main22200-74014i4SFI..ST170198902-198904

sub22200-74015

main22200-74016i4SFI..ST170198904-198911

main22200-74020i4SFI..ST170198712-198810

sub22200-74023

main22200-74023i4SFI..ST170198810-198902

sub22200-74024

main22200-74024i4SFI..ST170198902-198904

sub22200-74025

main22200-74026i4SFI..ST170198904-198911

main22210-15050i5AFE..AT170..MTM198911-199202

main22210-15060i5AFE..AT170..4FC198911-199202

main22210-16250i4AFE..AT175..5F198808-199202

main22210-16390i4AFE..AT175..4FC198808-199202

main22210-74110i3SGE..ST171..4FC198712-198911

main22210-74140i3SGE..ST171..5F198712-198911

main22210-74190i3SFE..ST171..5F198712-198911

main22210-74201i3SFE..ST171..4FC198712-198911

main22210-74330i3SFE..ST171..5F198712-198911

main22210-74340i4SFE..ST170..5F198911-199002

sub22210-74341

main22210-74341i4SFE..ST170..5F199002-199106

main22210-74380i3SGE..ST171..5F198911-199105

sub22210-74730

main22210-74390i3SGE..ST171..4FC198911-199105

sub22210-74680

main22210-74400i3SFE..ST171..5F198911-199202

main22210-74410i3SFE..ST171..4FC198911-199202

main22210-74500i4SFE..ST170..4FC198911-199002

sub22210-74501

main22210-74501i4SFE..ST170..4FC199002-199202

main22210-74680i3SGE..ST171..4FC199105-199202

main22210-74690i4SFE..ST170..5F199106-199202

main22210-74730i3SGE..ST171..5F199105-199202

22215GASKET, THROTTLE BODY COVER

main22215-15010i4AFE..AT175198808-199004

sub22215-15011

main22215-15011i4AFE..AT175199004-199202

main22215-74190i3SFE..ST171198712-198911

main22215-74380i3SGE..ST171198911-199202

main22215-74400i3SFE,4SFE..ST17#198911-199202

22216SCREW, DASH POT ADJUSTING

main22216-74010i5AFE..AT170198712-199202

22230VALVE ASSY, AUXILIARY AIR

main22230-16120i4AFE..AT175..5F198808-199202

main22230-16130i4AFE..AT175..4FC198808-199202

main22230-74030i3SGE..ST171198712-198911

main22230-74051i3SFE..ST171198712-198911

22230VRING, O(FOR AUXILIARY AIR VALVE)

main96711-19009i4AFE..AT175198808-199202

22271GASKET, THROTTLE BODY

main22271-15010i4AFE,5AFE..AT17#198808-198912

sub22271-15011

main22271-15011i4AFE,5AFE..AT17#198912-199202

main22271-74020i3SFE..ST171198712-198907

sub22271-74021

main22271-74021i3SFE,4SFE..ST17#198907-199202

sub22271-74022

main22271-74040i4SFI..ST170198712-198907

sub22271-74041

main22271-74041i4SFI..ST170198907-198911

main22271-74050i3SGE..ST171198911-199202

main22271-88360i3SGE..ST171198712-198911

23250INJECTOR ASSY, FUEL

main23209-15010i5AFE..AT170198911-199202

main23209-16100i4AFE..AT175198808-199202

main23209-74020i3SGE..ST171198712-198911

main23209-74040i3SFE..ST171198911-199202

main23209-74060i3SFE..ST171198712-198911

main23209-74070i4SFI..ST170198712-198911

main23209-74080i3SGE..ST171198911-199202

main23209-74110i4SFE..ST170198911-199202

23250BRING, O(FOR FUEL INJECTOR)

main90099-14082i4SFI..ST170198712-198911

main90099-14083i4SFI..ST170198712-198911

main90301-07001i4AFE..AT175198712-199202

23250CGROMMET(FOR FUEL INJECTOR)

main90099-32124i4SFI..ST170198712-198911

main90480-13005i4AFE..AT175198712-199202

23260INJECTOR ASSY, COLD START FUEL

main23260-19085i4AFE..AT175198808-198911

sub23260-19086

main23260-19105i4AFE..AT175198911-198912

sub23260-19106

main23260-19106i4AFE..AT175198912-199202

main23260-79065i3SGE..ST171198712-198911

main23260-79105i3SFE..ST171198712-198911

23280REGULATOR ASSY, FUEL PRESSURE

main23280-15010i4AFE..AT175198808-198901

sub23280-16120

main23280-16120i4AFE,5AFE..AT17#198901-199202

main23280-74020i3SGE..ST171198712-198911

main23280-74031i3SFE,4SFE..ST17#198712-199101

main23280-74050i3SGE..ST171198911-199202

main23280-74060i4SFI..ST170198712-198911

main23280-74100i4SFE..ST170199009-199202

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4SFI..ST170198712-199202

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i5AFE..AT170198712-199202

23293GASKET, COLD START INJECTOR

main23293-62020i3S#..ST171198907-198911

*53

main23293-62020i4AFE..AT175198912-199202

main23293-74010i3S#..ST171198712-198912

sub23293-42010

main23293-74010i3SGE..ST171198907-198911

*54

sub23293-42010

23300PFILTER, FUEL(FOR EFI)

main23300-19145i4AFE..AT175198808-199202

main23300-19205i5AFE..AT170198911-199202

main23300-79175i3S#,4SF#..ST17#198712-199202

sub23300-79185

23300TGASKET(FOR FUEL FILTER)

main90430-12005i3S#,4SF#..ST17#198712-199108

main90430-12026i3S#,4SFE..ST17#199108-199202

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i3S#,4SF#..ST17#198712-199202

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-08003i4AFE..AT175198712-199202

main90401-08004i3SFE,4SFE..ST17#198909-199202

main90401-12021i4SFI..ST170198808-198901

sub90401-12097

main90401-12097i4SFI..ST170198712-198911

23801HGASKET(FOR FUEL PIPE)

main90430-08005i4AFE..AT175198911-199202

main90430-08005i3SGE..ST171198712-198911

*54

main90430-08009i3S#..ST171198712-198911

*53

sub90430-08014

main90430-12005i4SFI..ST170198803-198911

main90430-12013i4SFI..ST170198712-198803

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-15050i4AFE..AT175198808-198911

main23801-16030i4AFE..AT175198911-199202

main23801-74021i3SFE..ST171198712-198911

main23801-74030i4SFI..ST170198712-198805

sub23801-74031

main23801-74031i4SFI..ST170198805-198807

main23801-74032i4SFI..ST170198807-198911

main23801-88360i3SGE..ST171198712-198911

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08003i3SFE..ST171198712-198909

main90401-08004i3SFE,4SFE..ST17#198909-199202

main90401-12097i4AFE,5AFE..AT17#198808-199202

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-15010i4AFE..AT175198808-198904

sub23807-15011

main23807-16070i4AFE..AT175198904-199202

sub23807-15011

main23807-74030i3SFE..ST171198712-198911

main23807-74040i3SFE,4SFE..ST17#198911-199202

sub23807-74060

main23807-74050i3SGE..ST171198911-199202

main23814-15030i5AFE..AT170198911-199202

sub23814-15031

main23814-88361i3SGE..ST171198712-198911

23807BHOSE, FUEL DELIVERY PIPE

main23271-15250i5AFE..AT170198911-199202

main23271-16110i4AFE..AT175198808-199202

main23271-74120i3SFE..ST171198712-198903

main23271-74121i3SFE,4SFE..ST17#198903-199005

main23271-74122i3SFE,4SFE..ST17#199005-199202

main90923-01330i3SGE..ST171198712-198808

*54

sub90923-01332

main90923-01331i3SGE..ST171198712-198803

*53

sub90923-01332

main90923-01332i3SGE..ST171198808-198911

*54

main90923-01332i3SGE..ST171198803-198911

*53

main90923-01366i3SGE..ST171198911-199202

23807JGASKET, PIPE FUEL DELIVARY INLET

main90201-12109i4AFE,5AFE..AT17#198808-199109

main90430-12005i3SGE..ST171198911-199108

main90430-12026i3SGE..ST171199108-199202

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90560-11020i3SFE,4SFE..ST17#198712-199202

main90561-08021i4AFE,5AFE..AT17#198808-199202

main90561-08024i3SGE..ST171198712-199202

23910ATUBE SUB-ASSY, FUEL

main23901-16100i4AFE..AT175198901-199201

sub23901-16101

main23901-16101i4AFE..AT175199201-199202

77259BHOSE, FUEL

main77259-12110iAT175198808-198901

main95333-06020iAT175198901-199201

sub95337-06020

8404

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

9007911002

main90079-11002

9007911023

main90079-11023

9007911024

main90079-11024

9007930007

main90079-30007

9011908857

main90119-08857

9017908153

main90179-08153

9046711009

main90467-11009

9162160612

main91621-60612

91621A0850

main91621-A0850

9165540625

main91655-40625

9331514010

main93315-14010

9411540500

main94115-40500

9613541100

main96135-41100

43 parts on this diagram · 9 diagrams in section
