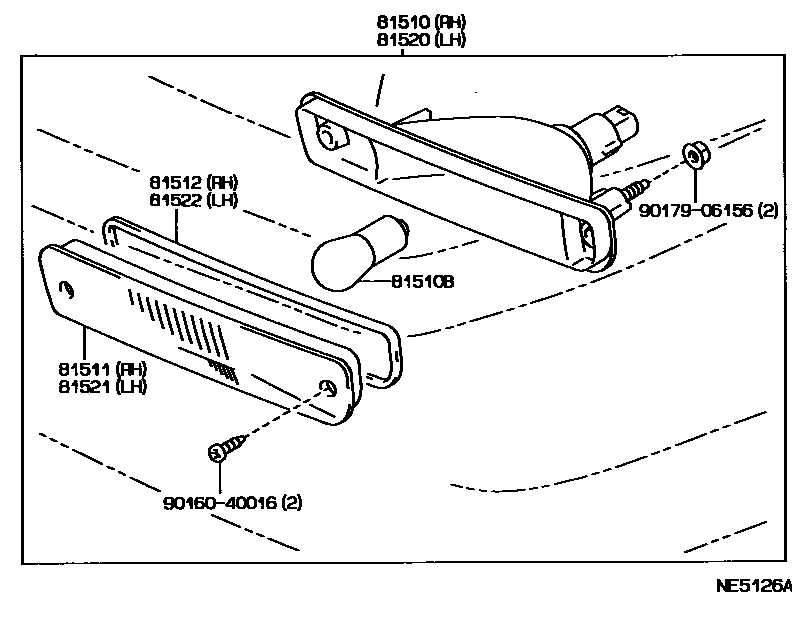

Toyota CORONA — FRONT TURN SIGNAL LAMP

0001 1 0003 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80059iAT17#,CT17#,ET176,ST17#198712-199211

main81510-80072iAT17#,CT170,ST17#198911-199202

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210iAT17#,CT17#,ET176,ST17#198712-199211

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-20480iCT176,ET176198712-199211

main81511-20600iAT17#,CT170,ST17#198911-199202

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-20480iAT17#,CT17#,ET176,ST17#198712-199211

main81512-20600iAT17#,CT170,ST17#198911-199202

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80059iAT170,ST170198712-199211

main81520-80072iAT17#,CT170,ST17#198911-199202

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-20480iAT17#,CT17#,ET176,ST17#198712-199211

main81521-20590iAT17#,CT170,ST17#198911-199202

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-20480iCT176,ET176198712-199211

main81512-20600iAT17#,CT170,ST17#198911-199202

9016040016

main90160-40016

9017906156

main90179-06156

9 parts on this diagram · 2 diagrams in section
