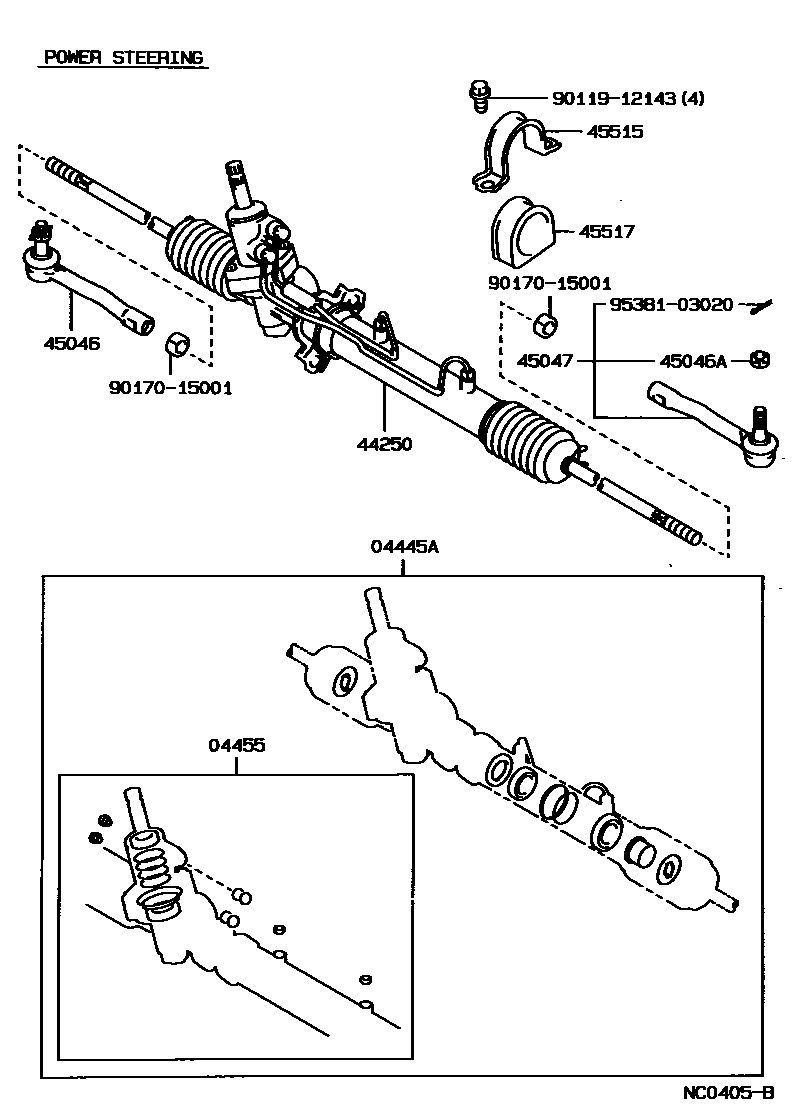

Toyota CORONA — FRONT STEERING GEAR & LINK

0001 1 0004 1 0007 1 0008 1 0009 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20070iAT17#,CT170,ST170..EXS,GX,SELS,X,Z198712-199211

sub04445-20200

main04445-20080iST171198712-199202

main04445-20140iAT175198808-199202

sub04445-20200

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20060iCT170,ET176..DX,EXS,GX,STD;AT17#,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-199211

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20170iCT176,ET176;AT170,CT170,ST170..EXS,GX,MX,X,Z198712-199211

main44250-20210iST171198712-198911

main44250-20240iAT175198808-199202

main44250-20300iAT170,CT170,ST170..EXS,GX,SELS,X,Z198911-199202

main44250-20340iST171198911-199202

main44250-20410iCT176..4FC199007-199211

main44250-20430iCT170..4FC199007-199202

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAT175198808-199202

main45046-29165iAT170,CT17#,ET176,ST17#198712-199211

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAT170..CBR;AT175,CT17#,ET176,ST17#;AT170..(EXS,GX,SELS)..EFI198712-199211

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAT175198808-199202

main45047-29045iAT170,CT17#,ET176,ST17#198712-199211

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20050iCT170,ET176,ST170;AT170,CT176,ST171..DX,EXG,G,GT,GTR,STD,SXR198712-199211

main45515-20060iAT170..EXS,GX,MX,SELS198712-199202

main45515-20100iAT175198808-199202

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20020iAT175198808-199202

main45517-20040iAT170,CT170,ST170..EXS,GX,MX,SELS,X,Z198712-199202

main45517-20040iCT176,ET176198712-199211

main45517-20050iST171198712-199202

main45517-20060iET176;AT170,CT176..DX,STD198712-198911

main45517-20100iET176;AT170,CT176..DX198911-199211

9011912143

main90119-12143

9017015001

main90170-15001

9538103020

main95381-03020

11 parts on this diagram · 5 diagrams in section
