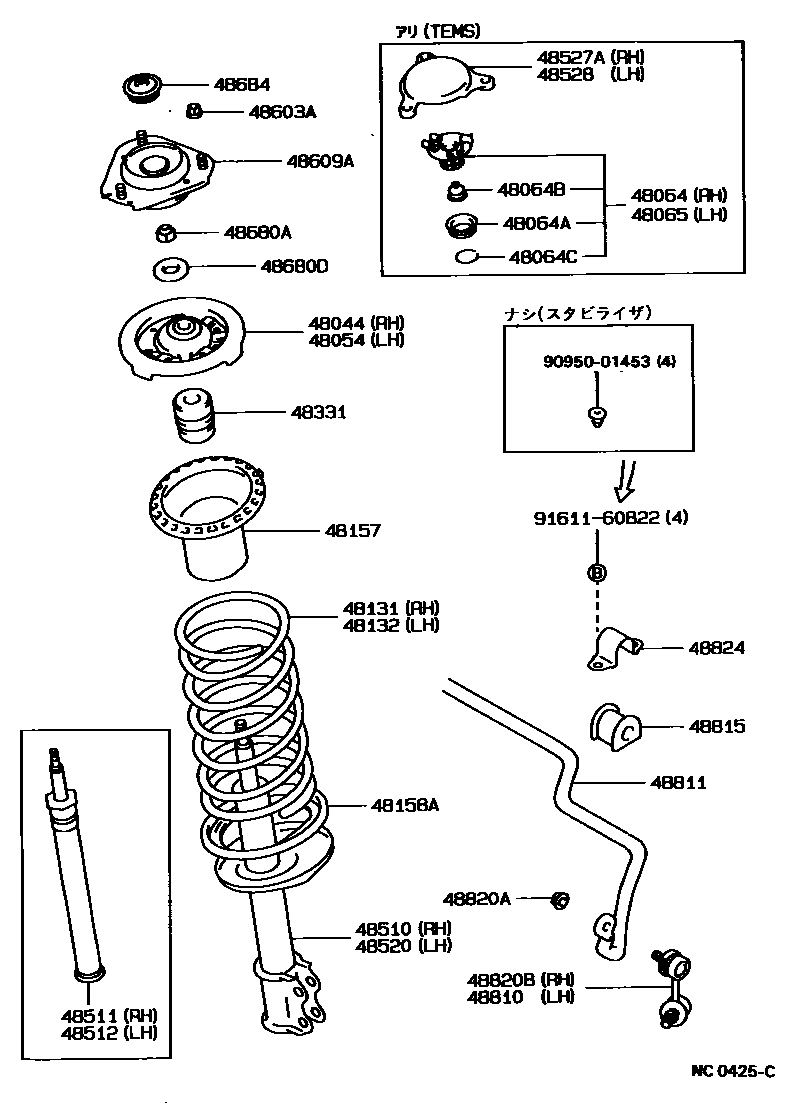

Toyota CORONA — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-20020iAT170,CT17#,ET176,ST17#198712-199211

main48044-32010iAT175198808-199202

48054SEAT SUB-ASSY, FRONT SPRING, NO.2

main48054-20010iAT170,CT17#,ET176,ST17#198712-199211

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-20020iST171198712-199202

sub48064-16010

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001iST171198712-199202

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019iST171198712-199202

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001iST171198712-199202

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-20010iST171198712-199202

48131SPRING, FRONT COIL, RH

main48131-2D220iAT175..5F198808-199202

sub48131-1K230

main48131-2D680iAT175..4FC198808-199202

main48131-2G030iCT170..5F198712-199202

main48131-2G060iCT170..4FC198712-199202

main48131-2G100iAT170..MTM198712-199202

main48131-2G110iST170..5F198805-199202

main48131-2G120iST170..5F198712-198805

sub48131-2G110

main48131-2G140iAT170..4FC198712-199202

main48131-2G160iST170..4FC198712-199202

main48131-2G190iET176198805-199211

main48131-2G200iET176198712-198805

sub48131-2G190

main48131-2G250iST171..5F..(EXG,G,SXR)198712-199202

main48131-2G280iCT176..5F;ST171..4FC..(EXG,G,SXR)198712-199211

main48131-2G290iCT176..4FC198911-199211

main48131-2G341iST171..5F..(EXG,G,SXR)198712-198911

main48131-2G351iST171..5F..(GT,GTR);ST171..4FC..(EXG,G,SXR)198712-198911

main48131-2G381iST171..4FC..(GT,GTR)198712-198911

main48131-2G810iST171..5F..(GT,GTR)198712-198805

sub48131-2G820

main48131-2G820iST171..5F..(GT,GTR)198805-198911

main48131-2G840iST171..4FC..(GT,GTR)198712-198911

main48131-2L530iST171..5F..(EXG,G,SXR)198911-199202

main48131-2L550iST171..4FC..(EXG,G,SXR)198911-199202

main48131-2L570iST171..5F..(GT,GTR)198911-199202

main48131-2L590iST171..4FC..(GT,GTR)198911-199202

main48131-2L700iST171..5F..(GT,GTR)198911-199202

main48131-2L730iST171..4FC..(GT,GTR)198911-199202

48132SPRING, FRONT COIL, LH

main48131-2D220iAT175..5F198808-199202

sub48131-1K230

main48131-2D680iAT175..4FC198808-199202

main48131-2G020iCT170..5F198712-199202

main48131-2G030iCT170..4FC198712-199202

main48131-2G100iST170..5F198712-199202

main48131-2G110iAT170..4FC198805-199202

main48131-2G120iAT170..4FC198712-198805

sub48131-2G110

main48131-2G140iST170..4FC198712-199202

main48131-2G170iET176198712-198805

sub48131-2G630

main48131-2G230iST171..5F..(EXG,G,SXR)198712-199202

main48131-2G250iCT176..5F;ST171..4FC..(EXG,G,SXR)198712-199211

main48131-2G280iCT176..4FC198911-199211

main48131-2G311iST171..5F..(EXG,G,SXR)198712-198911

main48131-2G341iST171..5F..(GT,GTR);ST171..4FC..(EXG,G,SXR)198712-198911

main48131-2G351iST171..4FC..(GT,GTR)198712-198911

main48131-2G560iAT170..MTM198712-199202

main48131-2G630iET176198805-199211

main48131-2G800iST171..5F..(GT,GTR)198712-198911

main48131-2G810iST171..4FC..(GT,GTR)198712-198805

sub48131-2G820

main48131-2G820iST171..4FC..(GT,GTR)198805-198911

main48131-2L510iST171..5F..(EXG,G,SXR)198911-199202

main48131-2L530iST171..4FC..(EXG,G,SXR)198911-199202

main48131-2L550iST171..5F..(GT,GTR)198911-199202

main48131-2L570iST171..4FC..(GT,GTR)198911-199202

main48131-2L690iST171..5F..(GT,GTR)198911-199202

main48131-2L700iST171..4FC..(GT,GTR)198911-199202

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-20040iAT175198808-199202

main48157-20070iAT170,CT17#,ET176,ST17#198712-199211

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12030iAT17#,CT17#,ET176,ST17#198712-199008

main48158-20060iAT17#,CT17#,ET176,ST17#199009-199211

48331BUMPER, FRONT SPRING, NO.1

main48331-12100iAT170,CT176,ET176198712-199106

sub48331-12120

main48331-12120iAT170,CT176,ET176199106-199211

main48331-12130iAT175,CT170,ST17#198712-199202

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-20262iAT175198808-199202

sub48510-20392

main48510-20451iCT176,ST171198712-199211

sub48510-20392

main48510-20461iCT170198712-199202

sub48510-20392

main48510-20471iST170198712-199202

sub48510-20392

main48510-20490iST171198712-198911

main48510-20501iAT170198712-199202

sub48510-20511

main48510-20511iET176198712-199211

sub48510-2B220

main48510-20620iST171198911-199202

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-20220iCT176,ST171198712-199211

sub48511-20290

main48511-20230iCT170198712-199202

sub48511-20290

main48511-20240iST170198712-199202

sub48511-20290

main48511-20260iAT170198712-199202

sub48511-20270

main48511-20270iET176198712-199211

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-20220iCT176,ST171198712-199211

sub48511-20290

main48511-20230iCT170198712-199202

sub48511-20290

main48511-20240iST170198712-199202

sub48511-20290

main48511-20260iAT170198712-199202

sub48511-20270

main48511-20270iET176198712-199211

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-20252iAT175198808-199202

sub48520-20382

main48520-20451iCT176,ST171198712-199211

sub48520-20382

main48520-20461iCT170198712-199202

sub48520-20382

main48520-20471iST170198712-199202

sub48520-20382

main48520-20490iST171198712-198911

main48520-20501iAT170198712-199202

sub48520-20511

main48520-20511iET176198712-199211

sub48520-2B220

main48520-20620iST171198911-199202

48527ACAP, FRONT SHOCK ABSORBER, RH

main48527-20020iST171198712-199202

48528CAP, FRONT SHOCK ABSORBER, LH

main48528-20020iST171198712-199202

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10095iAT17#,CT17#,ET176,ST17#198712-199211

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-20100iAT175198808-199202

main48609-20180iST171198712-199202

main48609-20210iAT170..DX..EFI198712-199202

main48609-20220iCT176,ET176;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198712-199211

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029iST171198712-199202

main94182-11400iAT17#,CT17#,ET176,ST17#198712-199211

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAT17#,CT17#,ET176,ST17#198712-199211

48684COVER, BEARING DUST

main48684-32010iAT17#,CT17#,ET176,ST17#198712-199211

48810LINK ASSY, FRONT STABILIZER, LH

main48810-20010iAT170,CT170,ST17#198712-199202

48811BAR, STABILIZER, FRONT

main48811-20390iST170..CI;AT170,CT170198712-199202

main48811-20400iST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI198712-199202

main48811-20450iST171198712-199202

main48811-20480iAT175198808-199202

main48811-20490iST171..GT,GTR198911-199202

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20020iST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI198712-199202

sub48815-20021

main48815-20030iST171..GT,GTR198911-199202

main48815-24020iAT175198808-199202

main48815-30060iST171..EXG,G,SXR198712-199202

main48815-30070iST170..CI;AT170,CT170198712-199202

48820LINK ASSY, FRONT STABILIZER

main48820-20010iAT175198808-199202

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iAT17#,CT170,ST17#198712-199202

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-20030iAT170,CT170,ST17#198712-199202

48824BRACKET, STABILIZER, FRONT

main48824-12040iAT170,CT170,ST17#198712-199202

main48824-20040iAT175198808-199202

9095001453

main90950-01453

9161160822

main91611-60822

32 parts on this diagram · 2 diagrams in section
