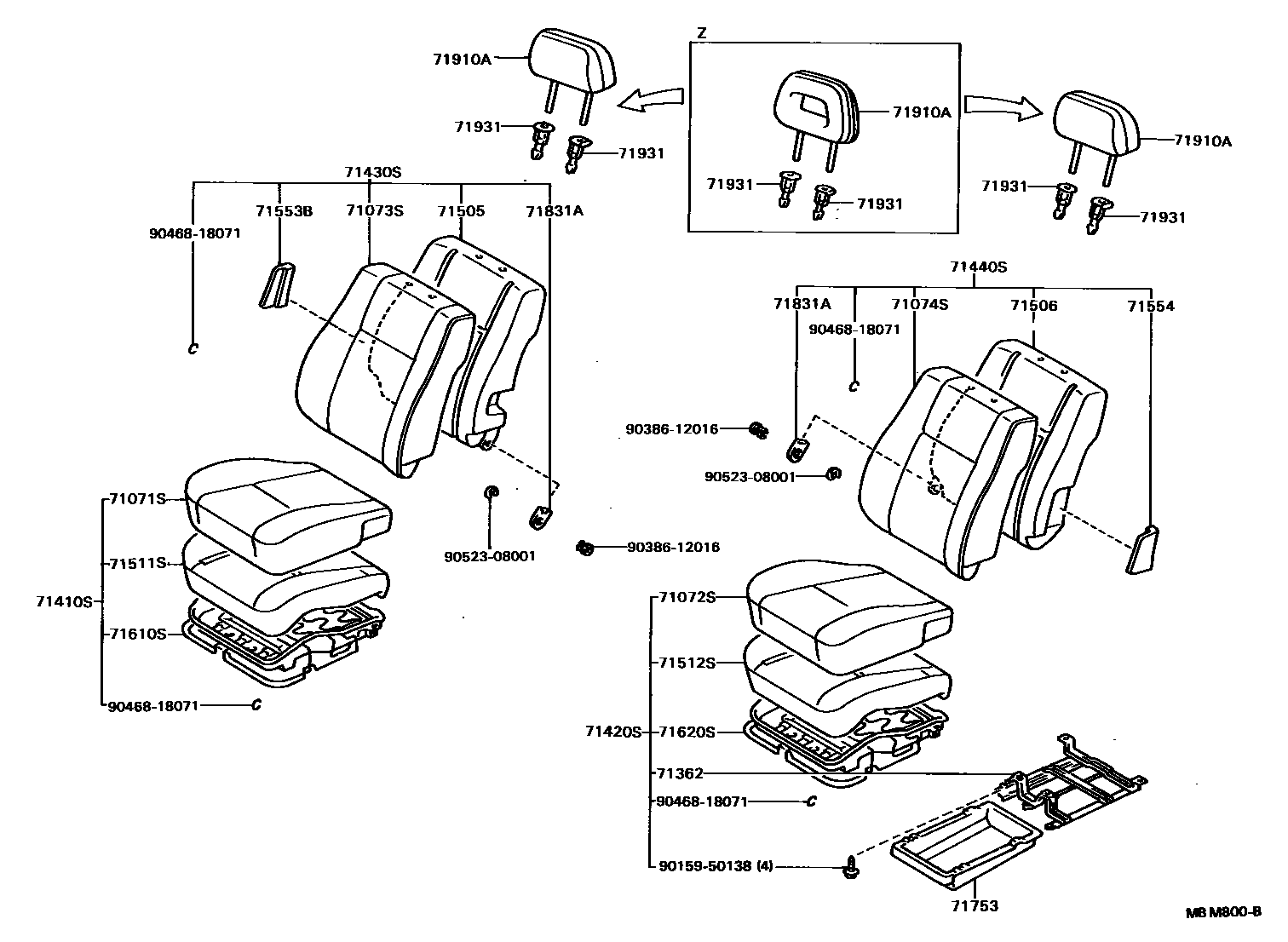

Toyota CORONA — FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1(9006- )�-��- �-�- 0006 1(8812-8906)EX ��-� ������ 0008 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2D100-03iCT170..GX198810-198911

main71071-2D100-03iAT170,ST170..GX198812-198906

main71071-2D100-04iAT175..GX198810-198911

main71071-2D100-04iAT170,ST170..GX198812-198906

main71071-2D100-06iAT170,ST170..GX198906-198911

main71071-2D160-03iAT170,ET176..STD198712-198911

GRAY,TRIM1#

main71071-2D170-03iET176..STD198806-198911

main71071-2D170-03iAT170,CT176,ET176..DX198712-198911

GRAY,TRIM1#

main71071-2D170-04iAT170..DX198712-198911

BLUE,TRIM8#

main71071-2D170-06iAT170,CT176,ET176..DX198712-198911

SABLE,TRIM4#

main71071-2D171-03iAT170..DX198911-199202

GRAY,TRIM1#

main71071-2D171-04iAT170..DX198911-199202

DARK BLUE,TRIM8#

main71071-2D171-06iAT170..DX198911-199202

SABLE,TRIM4#

main71071-2D180-03iAT17#,CT170,ET176,ST170..GX198712-198911

GRAY,TRIM1#

main71071-2D180-04iAT17#,CT170,ST170..GX198712-198911

BLUE,TRIM8#

main71071-2D180-06iAT17#,CT170,ET176,ST170..GX198712-198911

SABLE,TRIM4#

main71071-2D181-03iAT17#,CT170,ST170..GX198911-199202

GARY,TRIM1#

main71071-2D181-04iAT17#,CT170,ST170..GX198911-199202

DARK BLUE,TRIM8#

main71071-2D181-06iAT17#,CT170,ST170..GX198911-199202

SABLE,TRIM4#

main71071-2D190-03iAT17#,CT170,ST170..MX,Z198712-198911

GRAY,TRIM1#

main71071-2D190-04iAT17#,CT170,ST170..MX,Z198712-198911

BLUE,TRIM8#

main71071-2D190-06iAT17#,CT170,ST170..MX,Z198712-198911

SABLE,TRIM4#

main71071-2D191-03iAT17#,CT170,ST170..SELS,Z198911-199202

GRAY,TRIM1#

main71071-2D191-04iAT17#,CT170,ST170..SELS,Z198911-199202

DARK BLUE,TRIM8#

main71071-2D191-06iAT17#,CT170,ST170..SELS,Z198911-199202

SABLE,TRIM4#

main71071-2D200-03iAT170,CT170,ST170..EXS,X198712-198911

GRAY,TRIM1#

main71071-2D200-04iAT170,CT170,ST170..EXS,X198712-198911

BLUE,TRIM8#

main71071-2D200-06iAT170,CT170,ST170..EXS,X198712-198911

SABLE,TRIM4#

main71071-2D201-03iAT17#,CT170,ST170..EXS,X198911-199202

GRAY,TRIM1#

main71071-2D201-04iAT17#,CT170,ST170..EXS,X198911-199202

DARK BLUE,TRIM8#

main71071-2D201-06iAT17#,CT170,ST170..EXS,X198911-199202

SABLE,TRIM4#

main71071-2D210-03iST171..GT,GTR,SXR198712-198911

GRAY,TRIM1#

main71071-2D211-03iST171..GT,GTR,SXR198911-199202

GARY,TRIM1#

main71071-2D220-03iST171..EXG,G198712-198911

GRAY,TRIM1#

main71071-2D220-04iST171..EXG,G198712-198911

BLUE,TRIM8#

main71071-2D220-06iST171..EXG,G198712-198911

SABLE,TRIM4#

main71071-2D221-03iST171..EXG,G198911-199202

GRAY,TRIM1#

main71071-2D221-04iST171..EXG,G198911-199202

DARK BLUE,TRIM8#

main71071-2D221-06iST171..EXG,G198911-199202

SABLE,TRIM4#

main71071-2D790-03iST170..EXS198812-198906

main71071-2D790-04iST170..EXS198812-198906

main71071-2D790-04iST170..X198812-198903

main71071-2D790-06iST170..EXS198812-198906

main71071-94700iST171..4FC..EXG199005-199007

SUPER ROOMY

main71071-95506-03iCT176,ET176..DX198911-199211

main71071-95506-03iCT176,ET176..DX198911-199211

GRAY,TRIM1#

main71071-95506-06iCT176,ET176..DX198911-199211

SABLE,TRIM4#

main71071-95507-03iET176..GX198911-199211

GARY,TRIM1#

main71071-95507-03iET176..GX198911-199211

main71071-95507-06iET176..GX198911-199211

SABLE,TRIM4#

main71071-95507-06iET176..GX198911-199211

main71071-95508-03iET176..STD198911-199211

GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-2B460-03iAT170,ET176..STD198712-198911

GRAY,TRIM1#

main71072-2B470-03iET176..STD198806-198911

main71072-2B470-03iAT170,CT176,ET176..DX198712-198911

GRAY,TRIM1#

main71072-2B470-04iAT170..DX198712-198911

BLUE,TRIM8#

main71072-2B470-06iAT170,CT176,ET176..DX198712-198911

SABLE,TRIM4#

main71072-2B471-03iAT170..DX198911-199202

GRAY,TRIM1#

main71072-2B471-04iAT170..DX198911-199202

DARK BLUE,TRIM8#

main71072-2B471-06iAT170..DX198911-199202

SABLE,TRIM4#

main71072-2B480-03iAT17#,CT170,ET176,ST170..GX198712-198911

GRAY,TRIM1#

main71072-2B480-04iAT17#,CT170,ST170..GX198712-198911

BLUE,TRIM8#

main71072-2B480-06iAT17#,CT170,ET176,ST170..GX198712-198911

SABLE,TRIM4#

main71072-2B481-03iAT17#,CT170,ST170..GX198911-199202

GARY,TRIM1#

main71072-2B481-04iAT17#,CT170,ST170..GX198911-199202

DARK BLUE,TRIM8#

main71072-2B481-06iAT17#,CT170,ST170..GX198911-199202

SABLE,TRIM4#

main71072-2B490-03iAT17#,CT170,ST170..MX,Z198712-198911

GRAY,TRIM1#

main71072-2B490-04iAT17#,CT170,ST170..MX,Z198712-198911

BLUE,TRIM8#

main71072-2B490-06iAT17#,CT170,ST170..MX,Z198712-198911

SABLE,TRIM4#

main71072-2B491-03iAT17#,CT170,ST170..SELS,Z198911-199202

GRAY,TRIM1#

main71072-2B491-04iAT17#,CT170,ST170..SELS,Z198911-199202

DARK BLUE,TRIM8#

main71072-2B491-06iAT17#,CT170,ST170..SELS,Z198911-199202

SABLE,TRIM4#

main71072-2B500-03iAT170,CT170,ST170..EXS,X198712-198911

GRAY,TRIM1#

main71072-2B500-04iAT170,CT170,ST170..EXS,X198712-198911

BLUE,TRIM8#

main71072-2B500-06iAT170,CT170,ST170..EXS,X198712-198911

SABLE,TRIM4#

main71072-2B501-03iAT17#,CT170,ST170..EXS,X198911-199202

GRAY,TRIM1#

main71072-2B501-04iAT17#,CT170,ST170..EXS,X198911-199202

DARK BLUE,TRIM8#

main71072-2B501-06iAT17#,CT170,ST170..EXS,X198911-199202

SABLE,TRIM4#

main71072-2B501-06iST171..4FC..EXG199005-199211

SUPER ROMY,SABLE,TRIM4#

main71072-2B510-03iST171..GT,GTR,SXR198712-198911

GRAY,TRIM1#

main71072-2B511-03iST171..GT,GTR,SXR198911-199202

GARY,TRIM1#

main71072-2B610-03iST171..EXG,G198712-198911

GRAY,TRIM1#

main71072-2B610-04iST171..EXG,G198712-198911

BLUE,TRIM8#

main71072-2B610-06iST171..EXG,G198712-198911

SABLE,TRIM4#

main71072-2B611-03iST171..EXG,G198911-199202

GRAY,TRIM1#

main71072-2B611-04iST171..EXG,G198911-199202

DARK BLUE,TRIM8#

main71072-2B611-06iST171..EXG,G198911-199202

SABLE,TRIM4#

main71072-2D030-03iAT175..GX198810-198911

main71072-2D030-03iAT170,ST170..GX198812-198906

main71072-2D030-04iAT170,ST170..GX198810-198911

main71072-2D030-04iAT170,ST170..GX198812-198906

main71072-2D030-06iAT170,ST170..GX198906-198911

main71072-95503-03iCT176,ET176..DX198911-199211

main71072-95503-03iET176..STD198911-199211

GRAY,TRIM1#

main71072-95503-06iCT176,ET176..DX198911-199211

SABLE,TRIM4#

main71072-95504-03iET176..GX198911-199211

main71072-95504-03iCT176..5F198911-199211

GARY,TRIM1#

main71072-95504-06iET176..GX198911-199211

SABLE,TRIM4#

main71072-95504-06iCT176..5F198911-199211

main71072-95505-03iET176..STD198911-199211

GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2D040-03iCT170..GX198810-198911

main71073-2D040-04iCT170..GX198810-198911

main71073-2D040-06iAT170,ST170..GX198906-198911

main71073-2D070-03iAT170,ET176..STD198712-198911

GRAY,TRIM1#

main71073-2D080-03iET176..STD198806-198911

main71073-2D080-03iAT170,CT176,ET176..DX198712-198911

GRAY,TRIM1#

main71073-2D080-04iAT170..DX198712-198911

BLUE,TRIM8#

main71073-2D080-06iAT170,CT176,ET176..DX198712-198911

SABLE,TRIM4#

main71073-2D081-03iAT170..DX198911-199202

GRAY,TRIM1#

main71073-2D081-04iAT170..DX198911-199202

DARK BLUE,TRIM8#

main71073-2D081-06iAT170..DX198911-199202

SABLE,TRIM4#

main71073-2D090-03iAT17#,CT170,ET176,ST170..GX198712-198911

GRAY,TRIM1#

main71073-2D090-04iAT17#,CT170,ST170..GX198712-198911

BLUE,TRIM8#

main71073-2D090-06iAT17#,CT170,ET176,ST170..GX198712-198911

SABLE,TRIM4#

main71073-2D091-03iAT17#,CT170,ST170..GX198911-199202

GRAY,TRIM1#

main71073-2D091-04iAT17#,CT170,ST170..GX198911-199202

DARK BLUE,TRIM8#

main71073-2D091-06iAT17#,CT170,ST170..GX198911-199202

SABLE,TRIM4#

main71073-2D100-03iAT17#,CT170,ST170..MX,Z198712-198911

GRAY,TRIM1#

sub71073-2D100

main71073-2D100-04iAT17#,CT170,ST170..MX,Z198712-198911

BLUE,TRIM8#

sub71073-2D100

main71073-2D100-06iAT17#,CT170,ST170..MX,Z198712-198911

SABLE,TRIM4#

sub71073-2D100

main71073-2D101-03iST170..Z198911-199202

GRAY,TRIM1#

main71073-2D101-04iST170..Z198911-199202

DARK BLUE,TRIM8#

main71073-2D101-06iST170..Z198911-199202

SABLE,TRIM4#

main71073-2D110-03iAT170,CT170,ST170..EXS,X198712-198911

GRAY,TRIM1#

main71073-2D110-04iAT170,CT170,ST170..EXS,X198712-198911

BLUE,TRIM8#

main71073-2D110-06iAT170,CT170,ST170..EXS,X198712-198911

SABLE,TRIM4#

main71073-2D111-03iAT17#,CT170,ST170..EXS,X198911-199202

GRAY,TRIM1#

main71073-2D111-04iAT17#,CT170,ST170..EXS,X198911-199202

DARK BLUE,TRIM8#

main71073-2D111-06iAT17#,CT170,ST170..EXS,X198911-199202

SABLE,TRIM4#

main71073-2D111-06iST171..4FC..EXG199005-199007

SUPER ROMY,SABLE,TRIM4#

main71073-2D120-03iST171..GT,GTR,SXR198712-198911

GRAY,TRIM1#

main71073-2D121-03iST171..GT,GTR,SXR198911-199202

GRAY,TRIM1#

main71073-2D290-03iST171..EXG,G198712-198911

GRAY,TRIM1#

main71073-2D290-04iST171..EXG,G198712-198911

BLUE,TRIM8#

main71073-2D290-06iST171..EXG,G198712-198911

SABLE,TRIM4#

main71073-2D291-03iST171..EXG,G198911-199202

GRAY,TRIM1#

main71073-2D291-04iST171..EXG,G198911-199202

DARK BLUE,TRIM8#

main71073-2D291-06iST171..EXG,G198911-199202

SABLE,TRIM4#

main71073-2D330-03iAT17#,CT170,ST170..SELS198911-199202

GRAY,TRIM1#

main71073-2D330-04iAT17#,CT170,ST170..SELS198911-199202

DARK BLUE,TRIM8#

main71073-2D330-06iAT17#,CT170,ST170..SELS198911-199202

SABLE,TRIM4#

main71073-95504-03iET176..STD198911-199211

GRAY,TRIM1#

main71073-95504-03iET176..STD198911-199211

main71073-95504-06iCT176,ET176..DX198911-199211

SABLE,TRIM4#

main71073-95505-03iCT176..5F198911-199211

main71073-95505-03iET176..GX198911-199211

GRAY,TRIM1#

main71073-95505-06iCT176..5F198911-199211

main71073-95505-06iET176..GX198911-199211

SABLE,TRIM4#

main71073-95506-03iET176..STD198911-199211

GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-2B610-03iAT175..GX198810-198911

main71074-2B610-04iAT175..GX198810-198911

main71074-2B610-06iCT170..GX198906-198911

main71074-2B640-03iAT170,ET176..STD198712-198911

GRAY,TRIM1#

main71074-2B650-03iAT170,CT176,ET176..DX198712-198911

GRAY,TRIM1#

main71074-2B650-03iET176..STD198806-198911

main71074-2B650-04iAT170..DX198712-198911

BLUE,TRIM8#

main71074-2B650-06iAT170,CT176,ET176..DX198712-198911

SABLE,TRIM4#

main71074-2B651-03iAT170..DX198911-199202

GRAY,TRIM1#

main71074-2B651-04iAT170..DX198911-199202

DARK BLUE,TRIM8#

main71074-2B651-06iAT170..DX198911-199202

SABLE,TRIM4#

main71074-2B660-03iAT17#,CT170,ET176,ST170..GX198712-198911

GRAY,TRIM1#

main71074-2B660-04iAT17#,CT170,ST170..GX198712-198911

BLUE,TRIM8#

main71074-2B660-06iAT17#,CT170,ET176,ST170..GX198712-198911

SABLE,TRIM4#

main71074-2B661-03iAT17#,CT170,ST170..GX198911-199202

GRAY,TRIM1#

main71074-2B661-04iAT17#,CT170,ST170..GX198911-199202

DARK BLUE,TRIM8#

main71074-2B661-06iAT17#,CT170,ST170..GX198911-199202

SABLE,TRIM4#

main71074-2B670-03iAT17#,CT170,ST170..MX,Z198712-198911

GRAY,TRIM1#

sub71074-2B670

main71074-2B670-04iAT17#,CT170,ST170..MX,Z198712-198911

BLUE,TRIM8#

sub71074-2B670

main71074-2B670-06iAT17#,CT170,ST170..MX,Z198712-198911

SABLE,TRIM4#

sub71074-2B670

main71074-2B671-03iST170..Z198911-199202

GRAY,TRIM1#

main71074-2B671-04iST170..Z198911-199202

DARK BLUE,TRIM8#

main71074-2B671-06iST170..Z198911-199202

SABLE,TRIM4#

main71074-2B680-03iAT170,CT170,ST17#..EXG,EXS,G,X198712-198911

GRAY,TRIM1#

main71074-2B680-04iAT170,CT170,ST17#..EXG,EXS,G,X198712-198911

BLUE,TRIM8#

main71074-2B680-06iAT170,CT170,ST17#..EXG,EXS,G,X198712-198911

SABLE,TRIM4#

main71074-2B681-03iAT17#,CT170,ST17#..EXG,EXS,G,X198911-199202

GRAY,TRIM1#

main71074-2B681-04iAT17#,CT170,ST17#..EXG,EXS,G,X198911-199202

DARK BLUE,TRIM8#

main71074-2B681-06iAT17#,CT170,ST17#..EXG,EXS,G,X198911-199202

SABLE,TRIM4#

main71074-2B690-03iST171..GT,GTR,SXR198712-198911

GRAY,TRIM1#

main71074-2B691-03iST171..GT,GTR,SXR198911-199202

GARY,TRIM1#

main71074-2B880-03iAT17#,CT170,ST170..SELS198911-199202

GRAY,TRIM1#

main71074-2B880-04iAT17#,CT170,ST170..SELS198911-199202

DARK BLUE,TRIM8#

main71074-2B880-06iAT17#,CT170,ST170..SELS198911-199202

SABLE,TRIM4#

main71074-95504-03iCT176,ET176..DX198911-199211

GRAY,TRIM1#

main71074-95504-03iCT176,ET176..DX198911-199211

main71074-95504-06iCT176,ET176..DX198911-199211

SABLE,TRIM4#

main71074-95505-03iET176..GX198911-199211

GRAY,TRIM1#

main71074-95505-03iET176..GX198911-199211

main71074-95505-06iET176..GX198911-199211

SABLE,TRIM4#

main71074-95505-06iET176..GX198911-199211

main71074-95506-03iET176..STD198911-199211

GRAY,TRIM1#

71362BRACKET, FRONT SEAT SET, NO.2

main71362-20080iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199202

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-2D190-03iAT170,ST170..GX198810-198911

main71410-2D190-04iAT170,ST170..GX198810-198911

main71410-2D190-06iCT170..GX198906-198911

main71410-2D290-03iAT170,ET176..STD198712-198911

***,GRAY,TRIM1#

main71410-2D300-03iAT170,CT176,ET176..DX198712-198911

***,GRAY,TRIM1#

main71410-2D300-03iET176..STD198806-198911

main71410-2D300-04iAT170..DX198712-198911

***,BLUE,TRIM8#

main71410-2D300-06iAT170,CT176,ET176..DX198712-198911

***,SABLE,TRIM4#

main71410-2D301-03iAT170..DX198911-199202

***,GRAY,TRIM1#

main71410-2D301-04iAT170..DX198911-199202

***,DARK BLUE,TRIM8#

main71410-2D301-06iAT170..DX198911-199202

***,SABLE,TRIM4#

main71410-2D310-03iAT170,CT170,ET176,ST170..GX198712-198911

***,GRAY,TRIM1#

main71410-2D310-04iAT170,CT170,ST170..GX198712-198911

***,BLUE,TRIM8#

main71410-2D310-06iAT170,CT170,ET176,ST170..GX198712-198911

***,SABLE,TRIM4#

main71410-2D311-03iAT170,CT170,ST170..GX198911-199202

***,GARY,TRIM1#

main71410-2D311-04iAT170,CT170,ST170..GX198911-199202

***,DARK BLUE,TRIM8#

main71410-2D311-06iAT170,CT170,ST170..GX198911-199202

***,SABLE,TRIM4#

main71410-2D320-03iAT170,CT170,ST170..MX,Z198712-198911

***,GRAY,TRIM1#

main71410-2D320-04iAT170,CT170,ST170..MX,Z198712-198911

***,BLUE,TRIM8#

main71410-2D320-06iAT170,CT170,ST170..MX,Z198712-198911

***,SABLE,TRIM4#

main71410-2D321-03iAT170,CT170,ST170..SELS,Z198911-199202

***,GRAY,TRIM1#

main71410-2D321-04iAT170,CT170,ST170..SELS,Z198911-199202

***,DARK BLUE,TRIM8#

main71410-2D321-06iAT170,CT170,ST170..SELS,Z198911-199202

***,SABLE,TRIM4#

main71410-2D330-03iAT170,CT170,ST170..EXS,X198712-198911

***,GRAY,TRIM1#

main71410-2D330-04iAT170,CT170,ST170..EXS,X198712-198911

***,BLUE,TRIM8#

main71410-2D330-06iAT170,CT170,ST170..EXS,X198712-198911

***,SABLE,TRIM4#

main71410-2D331-03iAT170,CT170,ST170..EXS,X198911-199202

***,GRAY,TRIM1#

main71410-2D331-04iAT170,CT170,ST170..EXS,X198911-199202

***,DARK BLUE,TRIM8#

main71410-2D331-06iAT170,CT170,ST170..EXS,X198911-199202

***,SABLE,TRIM4#

main71410-2D340-03iST171..GT,GTR,SXR198712-198911

***,GRAY,TRIM1#

main71410-2D341-03iST171..GT,GTR,SXR198911-199202

***,GARY,TRIM1#

main71410-2D350-03iAT175..GX198812-198911

main71410-2D350-04iAT175..GX198812-198911

main71410-2D350-06iAT175..GX198906-198911

main71410-2D370-03iST171..EXG,G198712-198911

***,GRAY,TRIM1#

main71410-2D370-04iST171..EXG,G198712-198911

***,BLUE,TRIM8#

main71410-2D370-06iST171..EXG,G198712-198911

***,SABLE,TRIM4#

main71410-2D371-03iST171..EXG,G198911-199202

***,GRAY,TRIM1#

main71410-2D371-04iST171..EXG,G198911-199202

***,DARK BLUE,TRIM8#

main71410-2D371-06iST171..EXG,G198911-199202

***,SABLE,TRIM4#

main71410-2D620-03iAT175..GX198808-198911

GRAY,TRIM1#

main71410-2D620-04iAT175..GX198808-198911

BLUE,TRIM8#

main71410-2D620-06iAT175..GX198808-198911

SABLE,TRIM4#

main71410-2D621-03iAT175..GX198911-199202

***,GARY,TRIM1#

main71410-2D621-04iAT175..GX198911-199202

***,DARK BLUE,TRIM8#

main71410-2D621-06iAT175..GX198911-199202

***,SABLE,TRIM4#

main71410-2D630-03iAT175..MX198808-198911

GRAY,TRIM1#

main71410-2D630-04iAT175..MX198808-198911

BLUE,TRIM8#

main71410-2D630-06iAT175..MX198808-198911

SABLE,TRIM4#

main71410-2D631-03iAT175..SELS198911-199202

***,GRAY,TRIM1#

main71410-2D631-04iAT175..SELS198911-199202

***,DARK BLUE,TRIM8#

main71410-2D631-06iAT175..SELS198911-199202

***,SABLE,TRIM4#

main71410-2G490-03iAT175..EXS198911-199202

***,GRAY,TRIM1#

main71410-2G490-04iAT175..EXS198911-199202

***,DARK BLUE,TRIM8#

main71410-2G490-06iAT175..EXS198911-199202

***,SABLE,TRIM4#

main71410-95509-03iCT176,ET176..DX198911-199211

***,GRAY,TRIM1#

main71410-95509-03iCT176,ET176..DX198911-199211

main71410-95509-06iCT176,ET176..DX198911-199211

***,SABLE,TRIM4#

main71410-95510-03iET176..GX198911-199211

main71410-95510-03iET176..GX198911-199211

***,GARY,TRIM1#

main71410-95510-06iET176..GX198911-199211

***,SABLE,TRIM4#

main71410-95510-06iET176..GX198911-199211

main71410-95511-03iET176..STD198911-199211

***,GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-2B550-03iAT170,ST170..GX198810-198911

main71420-2B550-04iAT170,ST170..GX198810-198911

main71420-2B550-06iAT170,ST170..GX198906-198911

main71420-2B610-03iAT170,ET176..STD198712-198911

***,GRAY,TRIM1#

main71420-2B620-03iET176..STD198806-198911

main71420-2B620-03iAT170,CT176,ET176..DX198712-198911

***,GRAY,TRIM1#

main71420-2B620-04iAT170..DX198712-198911

***,BLUE,TRIM8#

main71420-2B620-06iAT170,CT176,ET176..DX198712-198911

***,SABLE,TRIM4#

main71420-2B621-03iAT170..DX198911-199202

***,GRAY,TRIM1#

main71420-2B621-04iAT170..DX198911-199202

***,DARK BLUE,TRIM8#

main71420-2B621-06iAT170..DX198911-199202

***,SABLE,TRIM4#

main71420-2B630-03iAT170,CT170,ST170..GX198712-198911

***,GRAY,TRIM1#

main71420-2B630-03iAT170,CT170,ST170..GX198712-198911

main71420-2B630-04iAT170,CT170,ST170..GX198712-198911

main71420-2B630-06iET176..GX198712-198911

***,SABLE,TRIM4#

main71420-2B630-06iAT170,CT170,ST170..GX198712-198911

main71420-2B631-03iAT170,CT170,ST170..GX198911-199202

main71420-2B631-04iAT170,CT170,ST170..GX198911-199202

main71420-2B631-06iAT170,CT170,ST170..GX198911-199202

main71420-2B640-03iAT170,CT170,ST170..MX,Z198712-198911

main71420-2B640-04iAT170,CT170,ST170..MX,Z198712-198911

main71420-2B640-06iAT170,CT170,ST170..MX,Z198712-198911

main71420-2B641-03iAT170,CT170,ST170..SELS,Z198911-199202

main71420-2B641-04iAT170,CT170,ST170..SELS,Z198911-199202

main71420-2B641-06iAT170,CT170,ST170..SELS,Z198911-199202

main71420-2B650-03iAT170,CT170,ST170..EXS,X198712-198911

main71420-2B650-04iAT170,CT170,ST170..EXS,X198712-198911

main71420-2B650-06iAT170,CT170,ST170..EXS,X198712-198911

main71420-2B651-03iAT170,CT170,ST170..EXS,X198911-199202

main71420-2B651-04iAT170,CT170,ST170..EXS,X198911-199202

main71420-2B651-06iAT170,CT170,ST170..EXS,X198911-199202

main71420-2B660-03iST171..GT,GTR,SXR198712-198911

main71420-2B661-03iST171..GT,GTR,SXR198911-199202

main71420-2B800-03iST171..EXG,G198712-198911

main71420-2B800-04iST171..EXG,G198712-198911

main71420-2B800-06iST171..EXG,G198712-198911

main71420-2B801-03iST171..EXG,G198911-199202

main71420-2B801-04iST171..EXG,G198911-199202

main71420-2B801-06iST171..EXG,G198911-199202

main71420-2D010-03iAT170,CT170,ST170..GX198712-198911

***,GRAY,TRIM1#

main71420-2D010-04iAT170,CT170,ST170..GX198712-198911

***,BLUE,TRIM8#

main71420-2D010-06iAT170,CT170,ST170..GX198712-198911

***,SABLE,TRIM4#

main71420-2D011-03iAT170,CT170,ST170..GX198911-199202

***,GARY,TRIM1#

main71420-2D011-04iAT170,CT170,ST170..GX198911-199202

***,DARK BLUE,TRIM8#

main71420-2D011-06iAT170,CT170,ST170..GX198911-199202

***,SABLE,TRIM4#

main71420-2D020-03iAT170,CT170,ST170..MX,Z198712-198911

***,GRAY,TRIM1#

main71420-2D020-04iAT170,CT170,ST170..MX,Z198712-198911

***,BLUE,TRIM8#

main71420-2D020-06iAT170,CT170,ST170..MX,Z198712-198911

***,SABLE,TRIM4#

main71420-2D021-03iAT170,CT170,ST170..SELS,Z198911-199202

***,GRAY,TRIM1#

main71420-2D021-04iAT170,CT170,ST170..SELS,Z198911-199202

***,DARK BLUE,TRIM8#

main71420-2D021-06iAT170,CT170,ST170..SELS,Z198911-199202

***,SABLE,TRIM4#

main71420-2D030-03iAT170,CT170,ST170..EXS,X198712-198911

***,GRAY,TRIM1#

main71420-2D030-04iAT170,CT170,ST170..EXS,X198712-198911

***,BLUE,TRIM8#

main71420-2D030-06iAT170,CT170,ST170..EXS,X198712-198911

***,SABLE,TRIM4#

main71420-2D031-03iAT170,CT170,ST170..EXS,X198911-199202

***,GRAY,TRIM1#

main71420-2D031-04iAT170,CT170,ST170..EXS,X198911-199202

***,DARK BLUE,TRIM8#

main71420-2D031-06iAT170,CT170,ST170..EXS,X198911-199202

***,SABLE,TRIM4#

main71420-2D040-03iST171..GT,GTR,SXR198712-198911

***,GRAY,TRIM1#

main71420-2D041-03iST171..GT,GTR,SXR198911-199202

***,GARY,TRIM1#

main71420-2D110-03iST171..EXG,G198712-198911

***,GRAY,TRIM1#

main71420-2D110-04iST171..EXG,G198712-198911

***,BLUE,TRIM8#

main71420-2D110-06iST171..EXG,G198712-198911

***,SABLE,TRIM4#

main71420-2D111-03iST171..EXG,G198911-199202

***,GRAY,TRIM1#

main71420-2D111-04iST171..EXG,G198911-199202

***,DARK BLUE,TRIM8#

main71420-2D111-06iST171..EXG,G198911-199202

***,SABLE,TRIM4#

main71420-2D120-03iAT175..GX198808-198911

GRAY,TRIM1#

main71420-2D120-04iAT175..GX198808-198911

BLUE,TRIM8#

main71420-2D120-06iAT175..GX198808-198911

SABLE,TRIM4#

main71420-2D121-03iAT175..GX198911-199202

***,GARY,TRIM1#

main71420-2D121-04iAT175..GX198911-199202

***,DARK BLUE,TRIM8#

main71420-2D121-06iAT175..GX198911-199202

***,SABLE,TRIM4#

main71420-2D130-03iAT175..MX198808-198911

GRAY,TRIM1#

main71420-2D130-04iAT175..MX198808-198911

BLUE,TRIM8#

main71420-2D130-06iAT175..MX198808-198911

SABLE,TRIM4#

main71420-2D131-03iAT175..SELS198911-199202

***,GRAY,TRIM1#

main71420-2D131-04iAT175..SELS198911-199202

***,DARK BLUE,TRIM8#

main71420-2D131-06iAT175..SELS198911-199202

***,SABLE,TRIM4#

main71420-2D250-03iAT175..GX198906-198911

main71420-2D250-03iAT175..GX198812-198906

main71420-2D250-04iAT175..GX198906-198911

main71420-2D250-04iAT175..GX198812-198906

main71420-2D250-06iAT175..GX198906-198911

main71420-2G040-03iAT175..EXS198911-199202

***,GRAY,TRIM1#

main71420-2G040-04iAT175..EXS198911-199202

***,DARK BLUE,TRIM8#

main71420-2G040-06iAT175..EXS198911-199202

***,SABLE,TRIM4#

main71420-95507-03iCT176,ET176..DX198911-199211

***,GRAY,TRIM1#

main71420-95507-03iCT176,ET176..DX198911-199211

main71420-95507-06iCT176,ET176..DX198911-199211

***,SABLE,TRIM4#

main71420-95508-03iET176..GX198911-199211

***,GARY,TRIM1#

main71420-95508-03iET176..GX198911-199211

main71420-95508-06iET176..GX198911-199211

***,SABLE,TRIM4#

main71420-95508-06iET176..GX198911-199211

main71420-95509-03iET176..STD198911-199211

***,GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-2D200-03iAT170,CT170,ST170..GX198810-198911

main71430-2D200-04iAT175..GX198810-198911

main71430-2D200-06iCT170..GX198906-198911

main71430-2D240-03iAT170,ET176..STD198712-198911

***,GRAY,TRIM1#

main71430-2D250-03iAT170,CT176,ET176..DX198712-198911

***,GRAY,TRIM1#

main71430-2D250-03iET176..STD198806-198911

main71430-2D250-04iAT170..DX198712-198911

***,BLUE,TRIM8#

main71430-2D250-06iAT170,CT176,ET176..DX198712-198911

***,SABLE,TRIM4#

main71430-2D251-03iAT170..DX198911-199202

***,GRAY,TRIM1#

main71430-2D251-04iAT170..DX198911-199202

***,DARK BLUE,TRIM8#

main71430-2D251-06iAT170..DX198911-199202

***,SABLE,TRIM4#

main71430-2D260-03iAT17#,CT170,ET176,ST170..GX198712-198911

***,GRAY,TRIM1#

main71430-2D260-04iAT17#,CT170,ST170..GX198712-198911

***,BLUE,TRIM8#

main71430-2D260-06iAT17#,CT170,ET176,ST170..GX198712-198911

***,SABLE,TRIM4#

main71430-2D261-03iAT17#,CT170,ST170..GX198911-199202

***,GRAY,TRIM1#

main71430-2D261-04iAT17#,CT170,ST170..GX198911-199202

***,DARK BLUE,TRIM8#

main71430-2D261-06iAT17#,CT170,ST170..GX198911-199202

***,SABLE,TRIM4#

main71430-2D280-03iAT170,CT170,ST170..EXS,X198712-198911

***,GRAY,TRIM1#

main71430-2D280-04iAT170,CT170,ST170..EXS,X198712-198911

***,BLUE,TRIM8#

main71430-2D280-06iAT170,CT170,ST170..EXS,X198712-198911

***,SABLE,TRIM4#

main71430-2D281-03iAT17#,CT170,ST170..EXS,X198911-199202

***,GRAY,TRIM1#

main71430-2D281-04iAT17#,CT170,ST170..EXS,X198911-199202

***,DARK BLUE,TRIM8#

main71430-2D281-06iAT17#,CT170,ST170..EXS,X198911-199202

***,SABLE,TRIM4#

main71430-2D290-03iST171..GT,GTR,SXR198712-198911

***,GRAY,TRIM1#

main71430-2D291-03iST171..GT,GTR,SXR198911-199202

***,GARY,TRIM1#

main71430-2D540-03iST171..EXG,G198712-198911

GRAY,TRIM1#

main71430-2D540-04iST171..EXG,G198712-198911

BLUE,TRIM8#

main71430-2D540-06iST171..EXG,G198712-198911

SABLE,TRIM4#

main71430-2D541-03iST171..EXG,G198911-199202

***,GRAY,TRIM1#

main71430-2D541-04iST171..EXG,G198911-199202

***,DARK BLUE,TRIM8#

main71430-2D541-06iST171..EXG,G198911-199202

***,SABLE,TRIM4#

main71430-2D560-03iAT17#,CT170,ST170..SELS198911-199202

***,GRAY,TRIM1#

main71430-2D560-04iAT17#,CT170,ST170..SELS198911-199202

***,DARK BLUE,TRIM8#

main71430-2D560-06iAT17#,CT170,ST170..SELS198911-199202

***,SABLE,TRIM4#

main71430-2D580-03iAT17#,CT170,ST170..MX,Z198712-198911

***,GRAY,TRIM1#

main71430-2D580-04iAT17#,CT170,ST170..MX,Z198712-198911

***,BLUE,TRIM8#

main71430-2D580-06iAT17#,CT170,ST170..MX,Z198712-198911

***,SABLE,TRIM4#

main71430-2D581-03iST170..Z198911-199202

***,GRAY,TRIM1#

main71430-2D581-04iST170..Z198911-199202

***,DARK BLUE,TRIM8#

main71430-2D581-06iST170..Z198911-199202

***,SABLE,TRIM4#

main71430-95510-03iCT176,ET176..DX198911-199211

***,GRAY,TRIM1#

main71430-95510-03iCT176,ET176..DX198911-199211

main71430-95510-06iCT176,ET176..DX198911-199211

***,SABLE,TRIM4#

main71430-95511-03iCT176..5F198911-199211

***,GRAY,TRIM1#

main71430-95511-03iET176..GX198911-199211

main71430-95511-06iET176..GX198911-199211

main71430-95511-06iET176..GX198911-199211

***,SABLE,TRIM4#

main71430-95512-03iET176..STD198911-199211

***,GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-2B800-03iAT175..GX198810-198911

main71440-2B800-04iAT170,ST170..GX198810-198911

main71440-2B800-06iAT170,ST170..GX198906-198911

main71440-2B890-03iAT170,ET176..STD198712-198911

***,GRAY,TRIM1#

main71440-2D010-03iAT170,CT176,ET176..DX198712-198911

***,GRAY,TRIM1#

main71440-2D010-03iET176..STD198806-198911

main71440-2D010-04iAT170..DX198712-198911

***,BLUE,TRIM8#

main71440-2D010-06iAT170,CT176,ET176..DX198712-198911

***,SABLE,TRIM4#

main71440-2D011-03iAT170..DX198911-199202

***,GRAY,TRIM1#

main71440-2D011-04iAT170..DX198911-199202

***,DARK BLUE,TRIM8#

main71440-2D011-06iAT170..DX198911-199202

***,SABLE,TRIM4#

main71440-2D020-03iAT17#,CT170,ET176,ST170..GX198712-198911

***,GRAY,TRIM1#

main71440-2D020-04iAT17#,CT170,ST170..GX198712-198911

***,BLUE,TRIM8#

main71440-2D020-06iAT17#,CT170,ET176,ST170..GX198712-198911

***,SABLE,TRIM4#

main71440-2D021-03iAT17#,CT170,ST170..GX198911-199202

***,GRAY,TRIM1#

main71440-2D021-04iAT17#,CT170,ST170..GX198911-199202

***,DARK BLUE,TRIM8#

main71440-2D021-06iAT17#,CT170,ST170..GX198911-199202

***,SABLE,TRIM4#

main71440-2D040-03iAT170,CT170,ST17#..EXG,EXS,G,X198712-198911

***,GRAY,TRIM1#

main71440-2D040-04iAT170,CT170,ST17#..EXG,EXS,G,X198712-198911

***,BLUE,TRIM8#

main71440-2D040-06iAT170,CT170,ST17#..EXG,EXS,G,X198712-198911

***,SABLE,TRIM4#

main71440-2D041-03iAT17#,CT170,ST17#..EXG,EXS,G,X198911-199202

***,GRAY,TRIM1#

main71440-2D041-04iAT17#,CT170,ST17#..EXG,EXS,G,X198911-199202

***,DARK BLUE,TRIM8#

main71440-2D041-06iAT17#,CT170,ST17#..EXG,EXS,G,X198911-199202

***,SABLE,TRIM4#

main71440-2D050-03iST171..GT,GTR,SXR198712-198911

***,GRAY,TRIM1#

main71440-2D051-03iST171..GT,GTR,SXR198911-199202

***,GARY,TRIM1#

main71440-2D180-03iAT17#,CT170,ST170..SELS198911-199202

***,GRAY,TRIM1#

main71440-2D180-04iAT17#,CT170,ST170..SELS198911-199202

***,DARK BLUE,TRIM8#

main71440-2D180-06iAT17#,CT170,ST170..SELS198911-199202

***,SABLE,TRIM4#

main71440-2D300-03iAT17#,CT170,ST170..MX,Z198712-198911

***,GRAY,TRIM1#

main71440-2D300-04iAT17#,CT170,ST170..MX,Z198712-198911

***,BLUE,TRIM8#

main71440-2D300-06iAT17#,CT170,ST170..MX,Z198712-198911

***,SABLE,TRIM4#

main71440-2D301-03iST170..Z198911-199202

***,GRAY,TRIM1#

main71440-2D301-04iST170..Z198911-199202

***,DARK BLUE,TRIM8#

main71440-2D301-06iST170..Z198911-199202

***,SABLE,TRIM4#

main71440-95510-03iCT176,ET176..DX198911-199211

***,GRAY,TRIM1#

main71440-95510-03iCT176,ET176..DX198911-199211

main71440-95510-06iCT176,ET176..DX198911-199211

***,SABLE,TRIM4#

main71440-95511-03iET176..GX198911-199211

***,GRAY,TRIM1#

main71440-95511-03iET176..GX198911-199211

main71440-95511-06iET176..GX198911-199211

***,SABLE,TRIM4#

main71440-95511-06iCT176..5F198911-199211

main71440-95512-03iET176..STD198911-199211

***,GRAY,TRIM1#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-20060iAT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z198712-199211

main71505-20080iAT17#,CT170,ST17#..EXG,EXS,G,X198712-199202

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-20040iAT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z198712-199211

main71506-20060iAT17#,CT170,ST17#..EXG,EXS,G,X198712-199202

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-20490iAT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z198712-199211

main71511-20500iAT17#,CT170,ST17#..EXG,EXS,G,X198712-199202

main71511-20520iST171..GT,GTR,SXR198712-199202

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-20490iAT17#,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z198712-199211

main71511-20500iAT17#,CT170,ST17#..EXG,EXS,G,X198712-199202

main71511-20520iST171..GT,GTR,SXR198712-199202

71553BPAD, FRONT SEATBACK, B

main71553-20150iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,X,Z198712-199211

71554PAD, FRONT SEATBACK, C

main71554-20130iAT17#,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,X,Z198712-199211

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-20400iST171..EXG,G198712-199202

main71610-20420iAT170,CT176,ET176..DX,STD198712-199211

main71610-20430iCT176..5F198911-199211

main71610-20430iAT170,CT170,ET176,ST17#..EXS,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

main71610-20430iST171..4FC..EXG199005-199007

SUPER ROOMY

main71610-20440iAT175198808-199202

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-20230iAT170,CT17#,ET176,ST17#198712-199211

main71620-20240iAT175198808-199202

71753TRAY, FRONT SEAT UNDER

main71753-20050iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199202

71831ACOVER, FRONT SEAT HINGE

main71831-10010iAT170,CT17#,ET176,ST17#198712-198802

main71831-12010iAT17#,CT17#,ET176,ST17#198802-199211

71910AHEADREST ASSY, FRONT SEAT

main71910-2B020-03iET176..GX198712-198911

GRAY,TRIM1#

main71910-2B020-04iAT17#,CT170,ST170..GX198712-198911

BLUE,TRIM8#

main71910-2B020-06iAT17#,CT170,ST170..GX198712-198911

SABLE,TRIM4#

main71910-2B021-03iAT17#,CT170,ST170..GX198911-199202

GRAY,TRIM1#

main71910-2B021-04iAT17#,CT170,ST170..GX198911-199202

DARK BLUE,TRIM8#

main71910-2B021-06iAT17#,CT170,ST170..GX198911-199202

SABLE,TRIM4#

main71910-2B030-03iAT170,CT170,ST170..MX198712-198911

GRAY,TRIM1#

main71910-2B030-04iAT170,CT170,ST170..MX198712-198911

BLUE,TRIM8#

main71910-2B030-06iAT170,CT170,ST170..MX198712-198911

SABLE,TRIM4#

main71910-2B031-03iAT17#,CT170,ST170..SELS198911-199202

GRAY,TRIM1#

main71910-2B031-04iAT17#,CT170,ST170..SELS198911-199202

DARK BLUE,TRIM8#

main71910-2B031-06iAT17#,CT170,ST170..SELS198911-199202

SABLE,TRIM4#

main71910-2B040-03iAT170,CT170,ST17#..EXG,EXS198712-198911

GRAY,TRIM1#

main71910-2B040-04iAT170,CT170,ST17#..EXG,EXS198712-198911

BLUE,TRIM8#

main71910-2B040-06iAT170,CT170,ST17#..EXG,EXS198712-198911

SABLE,TRIM4#

main71910-2B041-03iAT17#,CT170,ST17#..EXG,EXS198911-199202

GRAY,TRIM1#

main71910-2B041-04iAT17#,CT170,ST17#..EXG,EXS198911-199202

DARK BLUE,TRIM8#

main71910-2B041-06iAT17#,CT170,ST17#..EXG,EXS198911-199202

SABLE,TRIM4#

main71910-2B050-03iST171..GT,GTR,SXR198712-198911

GRAY,TRIM1#

main71910-2B051-03iST171..GT,GTR,SXR198911-199202

GARY,TRIM1#

main71910-2B060-03iAT175..MX198808-198911

GRAY,TRIM1#

main71910-2B060-04iAT175..MX198808-198911

BLUE,TRIM8#

main71910-2B060-06iAT175..MX198808-198911

SABLE,TRIM4#

main71910-2B100-03iST170..Z198712-198911

GRAY,TRIM1#

main71910-2B100-04iST170..Z198712-198911

BLUE,TRIM8#

main71910-2B100-06iST170..Z198712-198911

SABLE,TRIM4#

main71910-2B101-03iST170..Z198911-199202

GRAY,TRIM1#

main71910-2B101-04iST170..Z198911-199202

DARK BLUE,TRIM8#

main71910-2B101-06iST170..Z198911-199202

SABLE,TRIM4#

main71910-2B110-03iAT170..DX,STD198712-199211

GRAY,TRIM1#

sub71910-2B110

main71910-2B110-04iAT170..DX198712-198911

BLUE,TRIM8#

sub71910-2B110

main71910-2B110-06iAT170..DX198712-199211

SABLE,TRIM4#

sub71910-2B110

main71910-2B110-14iAT170..DX198911-199202

DARK BLUE,TRIM8#

sub71910-2B110

main71910-2B130-03iST17#..G,X198712-198911

GRAY,TRIM1#

main71910-2B130-04iST17#..G,X198712-198911

BLUE,TRIM8#

main71910-2B130-06iST17#..G,X198712-198911

SABLE,TRIM4#

main71910-2B131-03iST17#..G,X198911-199202

GRAY,TRIM1#

main71910-2B131-04iST17#..G,X198911-199202

DARK BLUE,TRIM8#

main71910-2B131-06iST17#..G,X198911-199202

SABLE,TRIM4#

main71910-2B270-03iAT170,CT170,ST170..GX198810-198906

main71910-2B270-04iCT170..GX198810-198906

main71910-2B280-03iCT170..GX198812-198911

main71910-2B280-04iAT175..GX198812-198911

main71910-2B280-06iAT170,ST170..GX198906-198911

main71910-95502-03iET176..GX198911-199211

GRAY,TRIM1#

main71910-95502-03iET176..GX198911-199211

main71910-95502-06iET176..GX198911-199211

SABLE,TRIM4#

main71910-95502-06iET176..GX198911-199211

71931SUPPORT, FRONT SEAT HEADREST

main71930-12050-03iCT176,ET176198712-199211

sub71930-12050

main71930-12050-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

sub71930-12050

main71930-12050-06iCT176,ET176..DX,GX198712-199211

sub71930-12050

main71930-12050-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

sub71930-12050

main71931-12010-03iAT17#,CT170,ST17#198712-199211

sub71931-12010

main71931-12010-04iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

sub71931-12010

main71931-12010-06iCT176,ET176..DX,GX198712-199211

sub71931-12010

main71931-12010-14iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

sub71931-12010

9015950138

main90159-50138

9038612016

main90386-12016

9046818071

main90468-18071

9052308001

main90523-08001

25 parts on this diagram · 6 diagrams in section
