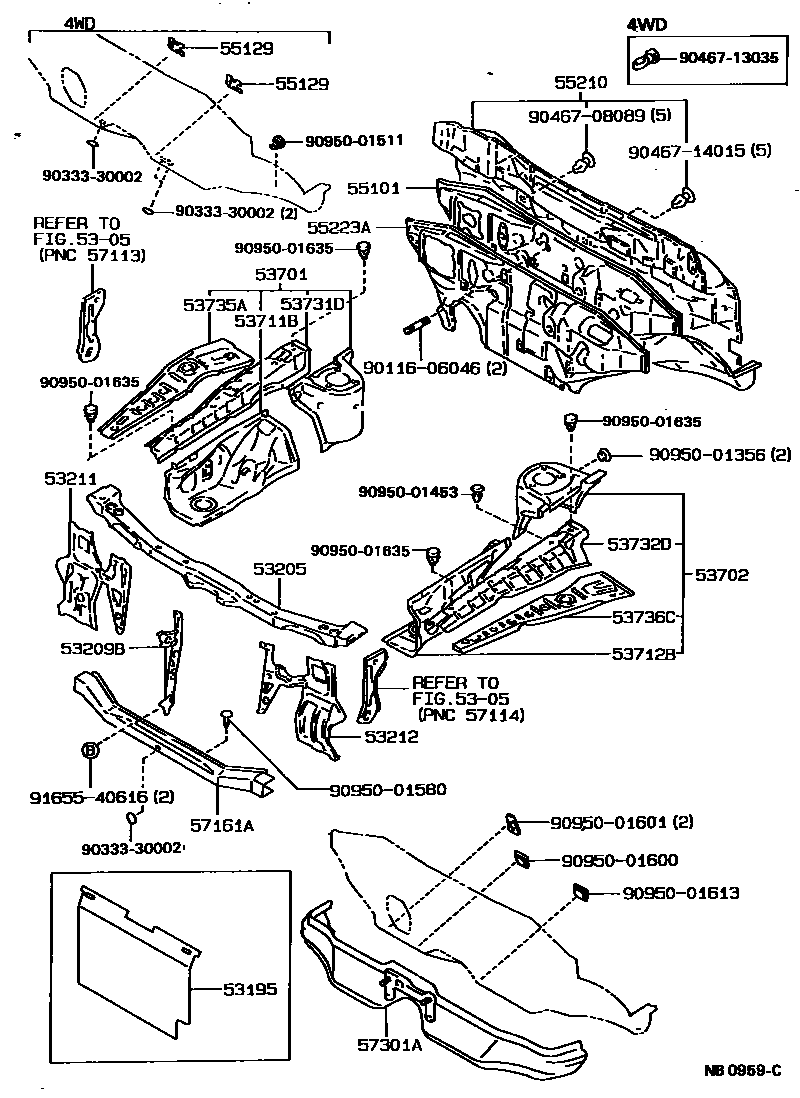

Toyota CORONA — FRONT FENDER APRON & DASH PANEL

5305

53195PLATE, RADIATOR SHUTTER

main53195-20030iCT17#198712-199211

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-20900iAT17#,CT17#,ET176,ST17#198712-199211

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-20150iAT17#,CT17#,ET176,ST17#198712-199211

sub53209-20180

main53209-20230iAT17#,CT170,ST17#198911-199202

53211SUPPORT, RADIATOR, RH

main53211-20190iAT17#,CT17#,ET176,ST17#198712-199211

53212SUPPORT, RADIATOR, LH

main53212-20190iAT17#,CT17#,ET176,ST17#198712-199211

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20650iAT170,CT17#,ET176,ST17#198712-199211

main53701-20670iAT170..EXS,GX,SELS198808-199202

main53701-20690iAT175198808-199202

main53701-20730iAT175198911-199202

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20640iST171198712-198907

sub53702-20641

sub17882-74111

main53702-20641iAT170,CT17#,ET176,ST17#198712-199211

main53702-20660iAT170..EXS198808-198911

main53702-20680iAT175198808-199202

main53702-20700iAT175198911-199202

53711BAPRON, FRONT FENDER, FRONT RH

main53711-20220iAT17#,CT17#,ET176,ST17#198712-199211

main53711-20240iAT170..EXS,GX,SELS198808-199202

main53711-20280iAT175198911-199202

53712BAPRON, FRONT FENDER, FRONT LH

main53712-20250iST171198712-198907

sub53712-20251

sub17882-74111

main53712-20251iAT17#,CT17#,ET176,ST17#198712-199211

main53712-20270iAT170..EXS198808-198911

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-20070iAT17#,CT17#,ET176,ST17#198712-199211

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-20070iAT17#,CT17#,ET176,ST17#198712-199211

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-20050iAT17#,CT17#,ET176,ST17#198712-199211

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-20060iAT17#,CT17#,ET176,ST17#198712-199211

55101PANEL SUB-ASSY, DASH

main55101-2B070iCT170..5F198712-198801

sub55101-2B903

main55101-2B080iCT170..4FC198712-198801

sub55101-2B904

main55101-2B903iAT170,CT176,ET176,ST17#..MTM198712-199211

main55101-2B904iAT170,CT17#,ET176,ST17#..ATM198712-199211

main55101-2B908iAT175..5F198808-199202

main55101-2B909iAT175..4FC198808-199202

55129COVER, DASH PANEL HOLE

main55129-16010iAT175198808-199202

55210INSULATOR ASSY, DASH PANEL

main55210-20190iAT170,CT17#,ET176,ST17#198712-199211

main55210-20220iAT175198808-199202

55223AINSULATOR, DASH PANEL, OUTER

main55223-20080iCT17#198712-199211

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57161-20908iAT17#,CT17#,ET176,ST17#198712-199211

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-20190iAT175198808-199202

9011606046

main90116-06046

9033330002

main90333-30002

9046708089

main90467-08089

9046713035

main90467-13035

9046714015

main90467-14015

9095001356

main90950-01356

9095001453

main90950-01453

9095001511

main90950-01511

9095001580

main90950-01580

9095001600

main90950-01600

9095001601

main90950-01601

9095001613

main90950-01613

9095001635

main90950-01635

9165540616

main91655-40616

34 parts on this diagram · 1 diagram in section
