Toyota CORONA — FRONT FENDER APRON & DASH PANEL

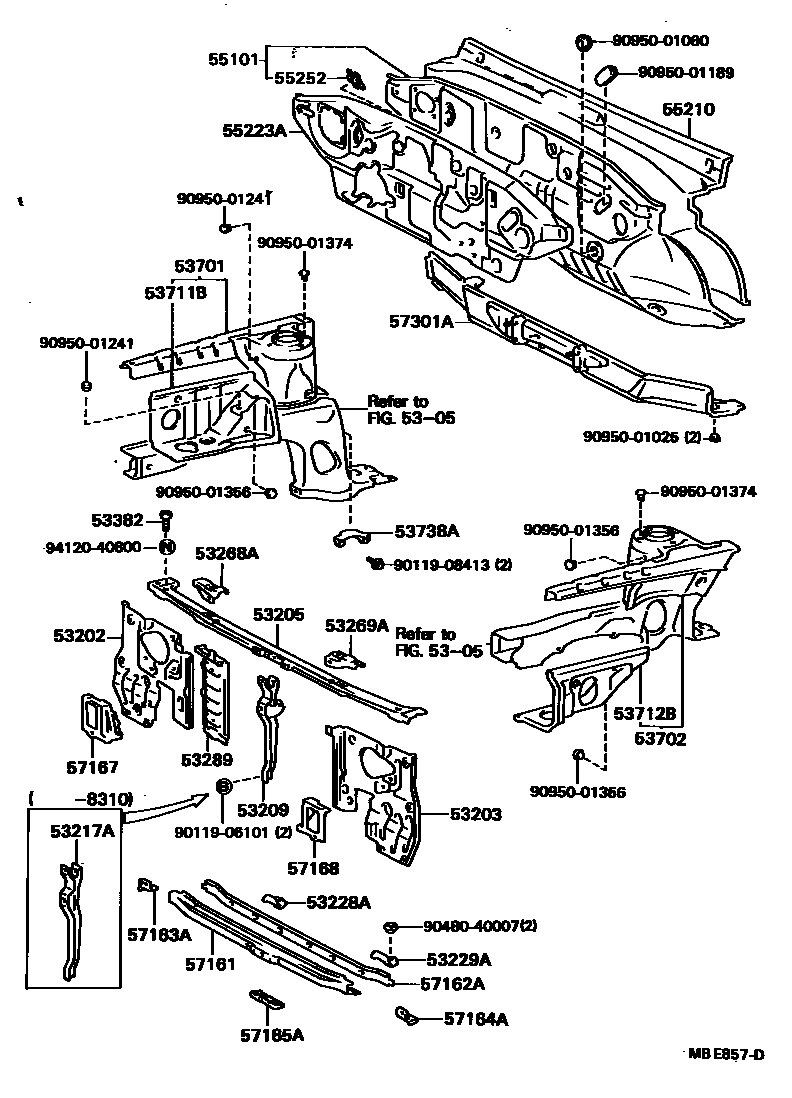

Parts diagram

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-20090i198301-198508

main53211-20091i198508-198702

main53211-20131i198702-198711

main53211-20160i198508-198711

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-20130i198301-198702

main53203-20170i198702-198711

main53203-20180i198508-198711

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-20040i198301-198512

main53216-20070i198512-198711

main53216-20100i198508-198601

main53216-20110i198601-198711

53209BRACE SUB-ASSY, HOOD LOCK

main53209-20030i198310-198508

main53209-20050i198310-198409

main53209-20070i198409-198508

main53209-20110i198508-198509

main53209-20120i198509-198711

main53209-20130i198508-198711

53217ABRACE, HOOD LOCK SUPPORT

main53217-20010i198301-198310

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-12060i198310-198711

main53228-20020i198301-198310

53229ABRACKET, RADIATOR GRILLE MOUNTING

main53229-12030i198310-198711

main53229-20020i198301-198310

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-20010i198301-198711

main53268-20030i198310-198711

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-20010i198301-198711

53289COVER, RADIATOR SIDE BAFFLE

main53289-20010i198310-198711

53382BUMPER, HOOD, FRONT

main53382-20011×2i198301-198601

main53382-90A00×2i198601-198711

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20450i198508-198711

COLD SPEC

main53701-20490i198508-198711

main53701-20927i198508-198711

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20490i198301-198711

main53702-20530i198310-198711

main53702-20937i198508-198711

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12180i198511-198711

main53711-20130i198301-198511

main53711-20160i198508-198711

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12160i198511-198711

main53712-20200i198301-198511

main53712-20230i198508-198711

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-20030i198301-198711

55101PANEL SUB-ASSY, DASH

main55101-20721i198508-198711

main55101-20731i198508-198711

main55101-20741i198510-198711

main55101-20751i198510-198711

main55101-20851i198508-198510

main55101-20861i198508-198510

main55101-20925i198301-198310

main55101-20926i198301-198310

main55101-20933i198310-198508

main55101-20934i198310-198508

55210INSULATOR ASSY, DASH PANEL

main55210-20070i198301-198310

main55210-20120i198310-198508

main55210-20121i198508-198711

55223AINSULATOR, DASH PANEL, OUTER

main55223-20050i198310-198711

55252COVER, DASH PANEL HOLE

main55129-16010i198301-198711

57161CROSSMEMBER, FRONT

main57161-12100i198508-198711

main57161-20070i198301-198508

main57161-20906i198508-198711

57162AMEMBER, FRONT CROSS, REAR

main57162-12100i198508-198711

main57162-20060i198301-198508

main57162-20901i198508-198711

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-12050i198310-198711

main57163-20060i198301-198310

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-12010i198310-198711

main57164-20060i198301-198310

57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2

main57165-20040i198301-198711

57167GUSSET, FRONT CROSSMEMBER, UPPER RH

main57167-12060i198512-198711

main57167-20060i198301-198512

57168GUSSET, FRONT CROSSMEMBER, UPPER LH

main57168-12060i198512-198711

main57168-20050i198301-198512

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-20010i198301-198402

main57301-20070i198402-198403

main57301-20080i198403-198503

main57301-20081i198503-198711

9011906101

main90119-06101

9011908413

main90119-08413

9048040007

main90480-40007

9095001025

main90950-01025

9095001060

main90950-01060

9095001189

main90950-01189

9095001241

main90950-01241

9095001356

main90950-01356

9095001374

main90950-01374

9412040800

main94120-40800

39 parts on this diagram · 2 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota CORONA

This section contains 45 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CORONA. Key components include: FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, BRACE SUB-ASSY, HOOD LOCK.
