Toyota CORONA — FRONT FENDER APRON & DASH PANEL

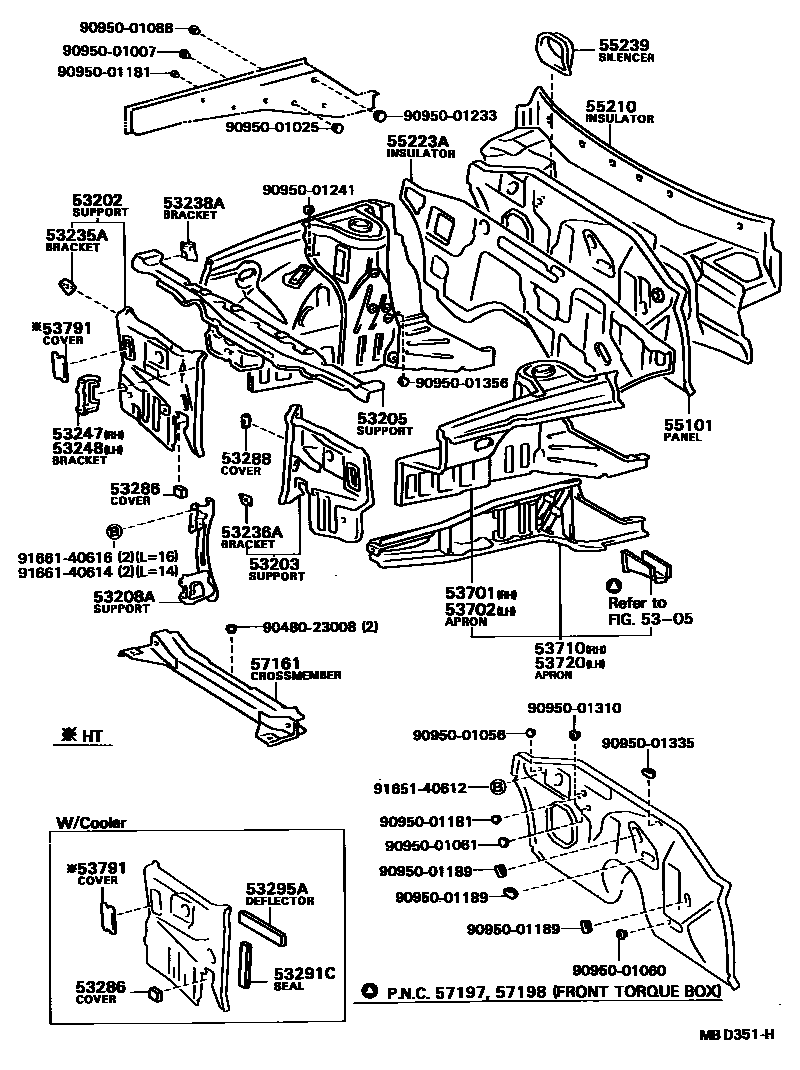

Parts diagram

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-14110i198201-198310

main53202-14120i198201-198712

main53202-14190i198210-198508

main53202-91D01i198201-198205

main53202-91D02i198205-198508

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-14170i198612-198712

COLD SPEC

main53203-14180i198201-198712

main53203-14230i198612-198712

main53203-91D01i198201-198508

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-14040i198201-198612

main53205-20020i198710-198712

main53205-91D01i198201-198508

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-14110i198612-199804

main53208-14130i198612-199804

COLD SPEC OR SUPER DLX

main53208-20040i198201-198612

main53208-91D01i198201-198310

main53208-91D02i198310-198508

53235ABRACKET, HORN MOUNTING, RH

main53235-14040i198310-198612

53236ABRACKET, HORN MOUNTING, LH

main53236-14030i198201-198712

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-14060×2i198201-198612

53247BRACKET, HEADLAMP MOUNTING, INNER RH

main53247-14060i198612-199804

main53247-20040i198201-198712

53248BRACKET, HEADLAMP MOUNTING, INNER LH

main53248-14040i198201-198612

main53248-20040i198201-198712

53286COVER, FRONT BUMPER ARM HOLE

main53285-14040×2i198201-198612

53288COVER, POWER STEERING PIPE HOLE

main53288-14050i198310-198508

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-14020×2i198201-198712

53295ADEFLECTOR, RADIATOR UPPER AIR

main53293-14040i198310-198712

main53293-14050i198310-198508

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-14912i198201-198712

main53701-14913i198201-198310

main53701-14914i198201-198508

main53701-20922i198201-198612

main53701-20923i198209-199804

main53701-20924i198201-198508

main53701-20925i198201-198508

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-14912i198201-198712

main53702-14913i198201-198310

main53702-14914i198310-198712

main53702-14921i198201-198712

main53702-14929i198310-198508

main53702-14932i198508-198712

main53702-20933i198612-199111

main53702-20934i198209-199804

main53702-20935i198201-198508

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-14900i198201-198310

main53710-14901i198201-198712

main53710-20900i198612-198712

main53710-20902i198209-199804

main53710-20903i198209-199804

main53710-20904i198201-198508

main53710-20905i198201-198508

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-14900i198201-198311

main53720-14902i198201-198310

main53720-14909i198201-198712

main53720-14910i198310-198705

main53720-14911i198705-198712

main53720-14920i198311-198712

main53720-14921i198310-198508

main53720-14922i198508-198712

main53720-20901i198612-199111

main53720-20902i198209-199804

main53720-20903i198201-198508

53791COVER, COOL AIR INTAKE HOLE

main53791-14010×2i198201-198508

55101PANEL SUB-ASSY, DASH

main55101-14910i198201-198303

main55101-14911i198201-198303

main55101-14914i198201-198303

main55101-14916i198201-198303

main55101-14917i198201-198303

main55101-14922i198303-198712

main55101-14923i198303-198712

main55101-14925i198303-198712

main55101-14928i198612-198712

main55101-14929i198303-198310

main55101-20919i198209-198303

main55101-20920i198209-198303

main55101-20923i198201-198303

main55101-20927i198303-198612

main55101-20929i198303-199804

main55101-20932i198612-199111

main55101-20951i198612-199804

55210INSULATOR ASSY, DASH PANEL

main55210-14160i198201-198712

main55210-14170i198201-198612

main55210-14270i198201-198508

main55210-14290i198310-198508

main55210-14360i198310-198712

main55210-20040i198209-199804

55223AINSULATOR, DASH PANEL, OUTER

main55223-14010i198201-198612

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-14060i198612-198712

main55257-20100i198209-199804

57161CROSSMEMBER, FRONT

main57104-14050i198201-198508

main57104-14090i198201-198601

main57104-14100i198612-198712

9048023008

main90480-23008

9095001007

main90950-01007

9095001025

main90950-01025

9095001056

main90950-01056

9095001060

main90950-01060

9095001061

main90950-01061

9095001088

main90950-01088

9095001181

main90950-01181

9095001189

main90950-01189

9095001233

main90950-01233

9095001241

main90950-01241

9095001310

main90950-01310

9095001335

main90950-01335

9095001356

main90950-01356

9165140612

main91651-40612

9166140614

main91661-40614

9166140616

main91661-40616

41 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota CORONA

This section contains 41 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CORONA. Key components include: FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK.
