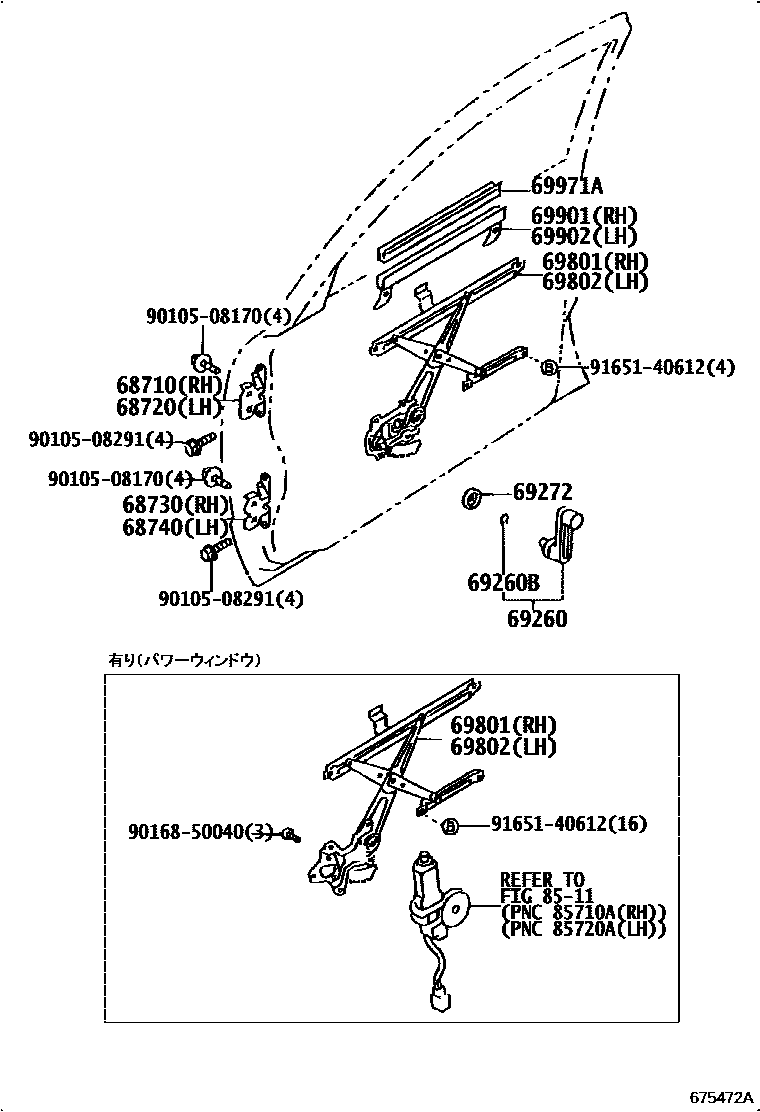

Toyota CORONA — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20060iAT17#,CT17#,ET176,ST17#198712-199211

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20050iAT17#,CT17#,ET176,ST17#198712-199211

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-16010iAT17#,CT17#,ET176,ST17#198712-199211

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-16010iAT17#,CT17#,ET176,ST17#198712-199211

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-30iAT17#,CT17#,ET176,ST170..DX,GX,STD198911-199211

GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-33iAT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z198712-198911

GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-40iAT17#,CT170,ST170..DX,GX198911-199202

DARK BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-54iAT175..GX;AT170,CT170,ST170..DX,GX,MX,Z198712-198911

DARK BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-58iAT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX198712-199211

SABLE,TRIM4#

sub69260-14020

sub69260-22030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD198712-199211

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iCT176,ET176..DX,GX198712-199211

NATURAL WHITE,TRIM1#,4#

sub69285-22010

main69285-22010-08iCT176,ET176..DX,GX198712-199211

NATURAL WHITE,TRIM1#

sub69285-22010

main69285-22010-08iCT176,ET176..DX,GX198712-199211

NATURAL WHITE,TRIM1#,4#,8#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20150iAT170,CT170,ST170..GX198810-198911

main69801-20150iAT170,CT170,ST170..MX,Z198712-198911

main69801-20150iAT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)198712-199202

main69801-20150iAT17#,CT170,ST170..GX199106-199202

main69810-20170iAT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD198712-199211

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20150iAT170,CT170,ST170..GX198810-198911

main69802-20150iAT170,CT170,ST170..MX,Z198712-198911

main69802-20150iAT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)198712-199202

main69802-20150iAT17#,CT170,ST170..GX199106-199202

main69820-20170iAT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD198712-199211

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-20130iAT17#,CT17#,ET176,ST17#198712-199008

W=9.4

main69901-20130iAT17#,CT17#,ET176,ST17#199008-199211

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-20060iAT17#,CT17#,ET176,ST17#198712-199008

W=9.4

main69902-20060iAT17#,CT17#,ET176,ST17#199008-199211

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-20010iAT17#,CT17#,ET176,ST17#198712-199211

sub69971-12090

8511

9010508170

main90105-08170

9010508291

main90105-08291

9016850040

main90168-50040

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
