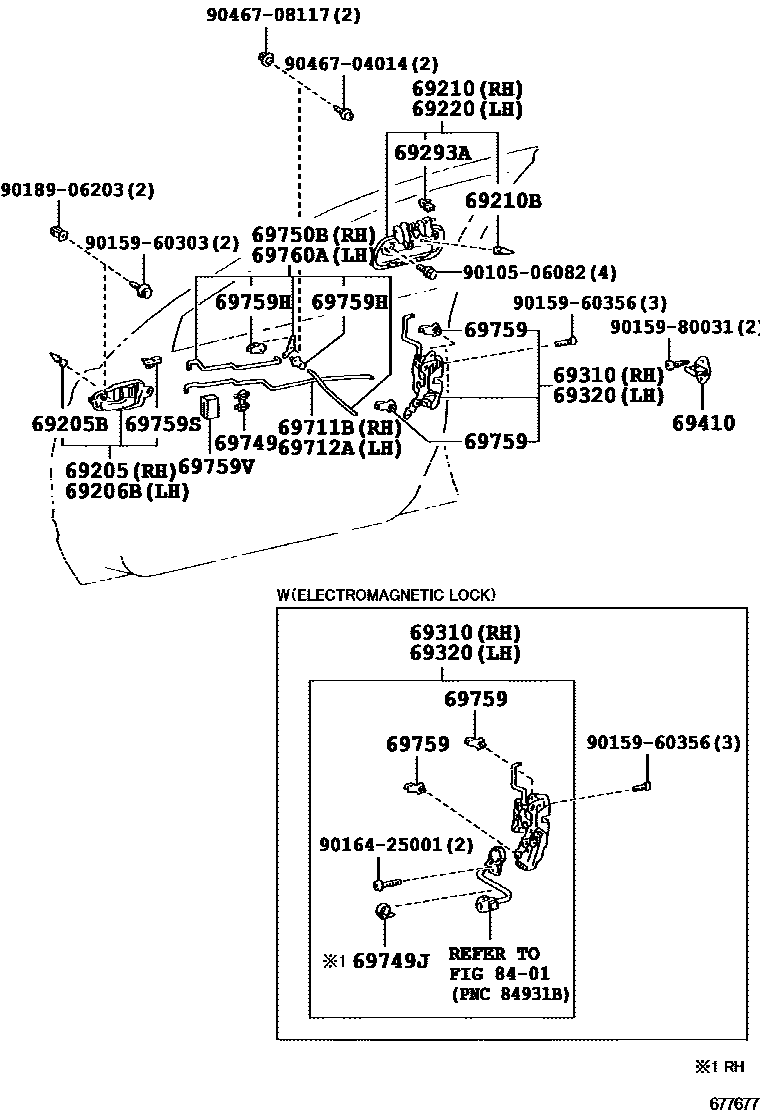

Toyota CORONA — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
ANTELOPE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
ANTELOPE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WARM GRAY PEARL MICA,046
DARK BLUEISH GRAY ME,183
LT.GRAIGE ME,1A2
DARK WINE MICA M,3K1
MAGENTA MC,3L3
DK.GRAYISH BROWN ME,4H7
LIGHT BEIGE ME,4M3
DK.GRAYISH OLIVE ME,6M7
DARK TORQUOISE MICA,742
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WARM GRAY PEARL MICA,046
LT.GRAIGE ME,1A2
BLACK ME,205
DARK WINE MICA M,3K1
MAGENTA MC,3L3
DK.GRAYISH BROWN ME,4H7
LIGHT BEIGE ME,4M3
DK.GRAYISH OLIVE ME,6M7
DARK TORQUOISE MICA,742
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH,NATURAL
LH,YELLOW
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69749JCLAMP, FRONT DOOR LOCK
main69749-32020iAT190..MTM..SELS;AT190..ATM..(EXS,SELS);CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199402-199412
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LH,NATURAL
RH,BLUE
LH,GREEN
RH,GRAY
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69759SSNAP, FRONT DOOR INSIDE HANDLE
69759VSILENCER, FRONT DOOR LOCK LINK
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
8401SWITCH & RELAY & COMPUTER
9010506082
main90105-06082
9015960303
main90159-60303
9015960356
main90159-60356
9015980031
main90159-80031
9016425001
main90164-25001
9018906203
main90189-06203
9046704014
main90467-04014
9046708117
main90467-08117
29 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota CORONA
This section contains 29 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CORONA. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE).
