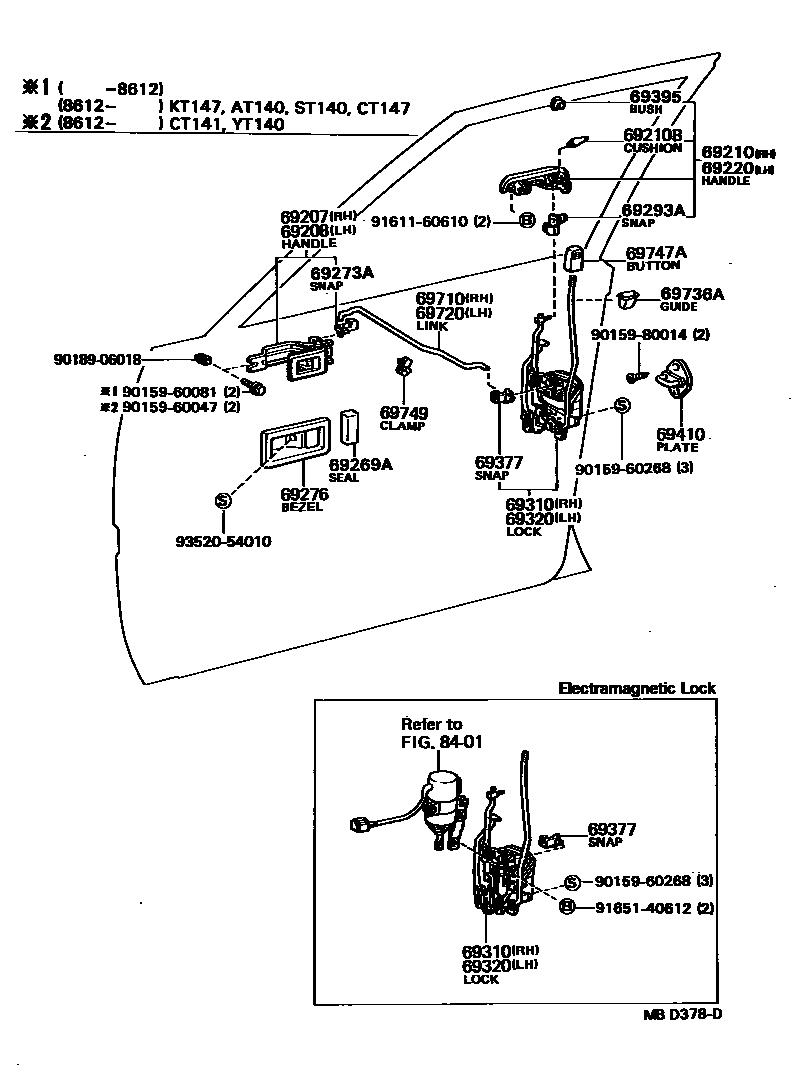

Toyota CORONA — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
GX EXTRA,BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
SADDLE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#; GX EXTRA,BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
SADDLE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
SADDLE BROWN,BROWN,TRIM4#
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
EVENT,BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
SADDLE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
SADDLE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
SADDLE BROWN,BROWN,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
RH
RH
RH
LH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
SADDLE BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BLACK,BLACK,TRIM2#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
main69277-16040-26×2iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310
SADDLE BROWN,BROWN,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
LH
69310LOCK ASSY, FRONT DOOR, RH
main69310-20130iAT140,CT14#,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX)198201-198305
W/O *EL
main69310-20131iAT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX)198305-198612
W/O *EL
W/*EL
W/*EL
W/O *EL
W/O *EL
W/*EL
W/O *EL
W/*EL
69320LOCK ASSY, FRONT DOOR, LH
main69320-20150iAT140,CT14#,RT141,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX)198201-198305
W/O *EL
main69320-20151iAT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX)198305-198612
W/O *EL
W/*EL
W/*EL
W/O *EL
W/O *EL
W/*EL
W/O *EL
W/*EL
69377SNAP, FRONT DOOR LOCK CONTROL ROD
LH,YELLOW
RH
RH,W/*EL,WHITE
LH,W/*EL,BLUE
LH,GREEN
RH,GRAY
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69736AGUIDE, FRONT DOOR LOCK LINK
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
main69741-20020-36×2iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198205
SADDLE BROWN,BROWN,TRIM4#
EVENT,BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
main69741-32010-06×2iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198205-198310
SADDLE BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
69749CLAMP, FRONT DOOR LOCK LINK
8401SWITCH & RELAY & COMPUTER
9015960047
main90159-60047
9015960081
main90159-60081
9015960268
main90159-60268
9015980014
main90159-80014
9018906018
main90189-06018
9161160610
main91611-60610
9165140612
main91651-40612
9352054010
main93520-54010
28 parts on this diagram · 3 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota CORONA
This section contains 41 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CORONA. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE), HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
