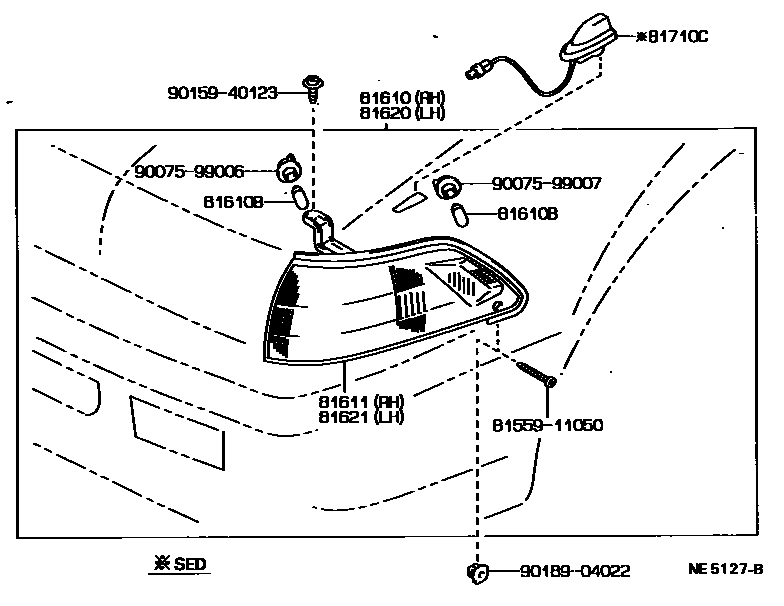

Toyota CORONA — FRONT CLEARANCE LAMP

0001 1 0003 1(8812- )EX��-� ������

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-20350iCT176,ET176;AT170..(DX,STD)..CBR198712-199211

main81610-20360iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

main81610-20370iST170..EXS198812-198906

main81610-20370iST17#..LB198712-198911

main81610-20400iAT17#,CT170,ST170..GX,SELS198911-199202

main81610-20400iST171..4FC..EXG199005-199007

main81610-20430iAT170..DX198911-199202

main81610-20440iAT17#,CT170,ST170..SELS199005-199211

main81610-20440iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

main81610-20440iAT17#,CT170,ST170..SELS199005-199202

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-13036iST170..EXS198812-198906

main90981-13036iAT17#,CT170,ST170..SELS199005-199202

main90981-13036iST17#..LB198712-199202

main99132-12050iAT17#,CT170,ST170..SELS199005-199202

main99132-12050iAT17#,CT17#,ET176,ST170..DX,GX,SELS,STD198712-199211

main99132-12050iST171..4FC..EXG199005-199007

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-20350iCT176,ET176;AT170..(DX,STD)..CBR198712-199211

main81611-20360iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

main81611-20370iST170..EXS198812-198906

main81611-20370iST17#..LB198712-198911

main81611-20400iST171..4FC..EXG199005-199007

main81611-20400iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

main81611-20430iAT170..DX198911-199202

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-20350iCT176,ET176;AT170..(DX,STD)..CBR198712-199211

main81620-20360iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

main81620-20370iST17#..LB198712-198911

main81620-20370iST170..EXS198812-198906

main81620-20400iST171..4FC..EXG199005-199007

main81620-20400iAT17#,CT170,ST170..GX,SELS198911-199202

main81620-20430iAT170..DX198911-199202

main81620-20440iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

main81620-20440iAT17#,CT170,ST170..SELS199005-199202

main81620-20440iAT17#,CT170,ST170..SELS199005-199211

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-20350iCT176,ET176;AT170..(DX,STD)..CBR198712-199211

main81621-20360iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

main81621-20370iST170..EXS198812-198906

main81621-20370iST17#..LB198712-198911

main81621-20400iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

main81621-20400iST171..4FC..EXG199005-199007

main81621-20430iAT170..DX198911-199202

81710CMARKER ASSY, FENDER

main81710-20040iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199202

main81720-20030iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199202

8155911050MOULDING, REAR COMBINATION LAMP, RH

main81559-11050

9007599006

main90075-99006

9007599007

main90075-99007

9015940123

main90159-40123

9018904022

main90189-04022

11 parts on this diagram · 2 diagrams in section
