Toyota CORONA — FRONT CLEARANCE LAMP

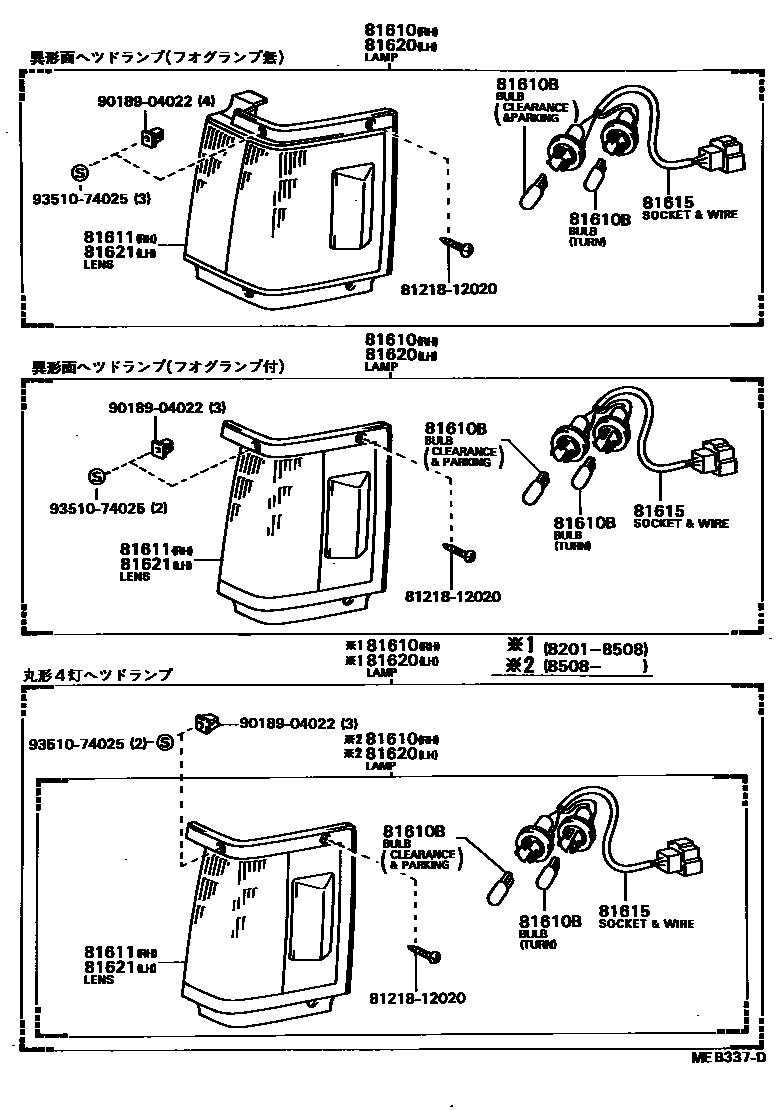

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-20260i198612-198712

HEADLAMP:*ROU

main81610-29255i198201-198310

main81610-29265i198209-198612

HEADLAMP:*REC

main81610-29275i198201-198508

HEADLAMP:*ROU

main81610-29285i198201-198310

main81610-29295i198201-198310

main81610-29355i198310-198508

main81610-29365i198310-198508

main81610-29375i198310-198712

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-12010×2i198201-198712

main99132-12050×2i198201-198508

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-20150i198201-198310

main81611-20160i198201-198712

main81611-20170i198201-198508

HEADLAMP:*ROU

main81611-20180i198310-198712

main81611-20260i198612-198712

HEADLAMP:*ROU

main81611-91D01i198201-198310

main81611-91D02i198201-198310

main81611-91D03i198310-198508

main81611-91D04i198310-198508

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-20150×2i198201-198712

main81615-20160×2i198209-198612

HEADLAMP:*REC

main81615-91D01×2i198201-198508

main81615-91D02×2i198201-198508

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-20260i198612-198712

HEADLAMP:*ROU

main81620-29245i198201-198310

main81620-29255i198201-198712

main81620-29265i198201-198508

HEADLAMP:*ROU

main81620-29275i198201-198310

main81620-29285i198201-198310

main81620-29345i198310-198508

main81620-29355i198310-198508

main81620-29365i198310-198712

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-20150i198201-198310

main81621-20160i198201-198712

main81621-20170i198201-198508

HEADLAMP:*ROU

main81621-20180i198310-198712

main81621-20260i198508-198612

HEADLAMP:*ROU

main81621-91D01i198201-198310

main81621-91D02i198201-198310

main81621-91D03i198310-198508

main81621-91D04i198310-198508

8121812020REFLECTOR, FOG LAMP

main81218-12020

9018904022

main90189-04022

9351074025

main93510-74025

9 parts on this diagram · 3 diagrams in section

FRONT CLEARANCE LAMP for Toyota CORONA

This section contains 19 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CORONA. Key components include: FRONT TURN SIGNAL LAMP, SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH.
