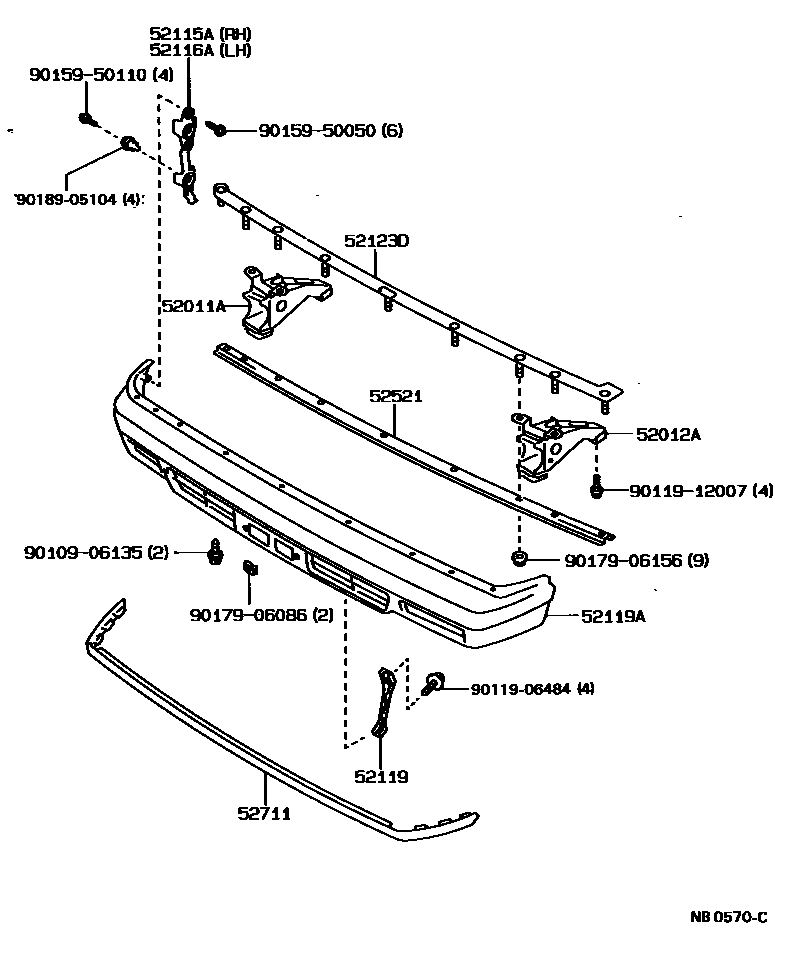

Toyota CORONA — FRONT BUMPER & BUMPER STAY

0001 1 0003 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-20190iCT176,ET176198712-199211

main52011-20230iAT17#,CT170,ST17#198911-199202

main52011-20240iAT170,CT170,ST17#198911-199202

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-20140iCT176,ET176198712-199211

main52012-20180iAT17#,CT170,ST17#198911-199202

main52012-20190iST171..EXG,G198911-199202

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20230iAT17#,CT17#,ET176,ST17#198712-198911

sub52115-20290

main52115-20290iAT17#,CT17#,ET176,ST17#198911-199211

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-20230iAT17#,CT17#,ET176,ST17#198712-198911

sub52115-20290

main52115-20290iAT17#,CT17#,ET176,ST17#198911-199211

52119STAY, FRONT BUMPER, CENTER

main52144-20140iAT17#,CT17#,ET176,ST17#198712-199211

main52144-20190iAT17#,CT170,ST17#198911-199202

52119ACOVER, FRONT BUMPER

main52119-20430-02iAT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198712-198810

SUPER RED 2,3E5

sub52119-20440

main52119-20430-02iAT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198712-198801

sub52119-20440

main52119-20430-03iST17#..LB198712-198911

sub52119-20440

main52119-20430-03iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

GRAY M,167

sub52119-20440

main52119-20430-04iAT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198712-198801

sub52119-20440

main52119-20430-04iST17#..LB198712-198911

LIGHT BLUE M,8E8

sub52119-20440

main52119-20430-05iAT17#,CT170,ST17#..EXG,EXS,GX,MX198712-198911

MEDIUM BEIGE M,4H6

sub52119-20440

main52119-20430-05iST17#..G,X,Z198712-198911

sub52119-20440

main52119-20430-07iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198810-198911

GREEN M,6J7

sub52119-20440

main52119-20430-08iAT170,CT170,ST170..EXS,GX,MX,X,Z198712-198911

SUPER WHITE 2,040

sub52119-20440

main52119-20430-12iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

RED MAICA,3H4

sub52119-20440

main52119-20430-12iAT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198712-198801

sub52119-20440

main52119-20430-13iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198810-198911

DARK GRAY MICA,175

sub52119-20440

main52119-20430-14iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

DARK BLUE MAICA M,8E9

sub52119-20440

main52119-20430-14iAT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198712-198801

sub52119-20440

main52119-20440iCT176,ET176198712-199211

main52119-20470-02iST17#..LB198712-198801

SUPER RED 2,3E5

sub52119-20430

main52119-20470-03iST17#..LB198712-198911

GRAY M,167

sub52119-20430

main52119-20470-03iST170..EXS198812-198911

sub52119-20430

main52119-20470-04iST17#..LB198712-198801

LIGHT BLUE M,8E8

sub52119-20430

main52119-20470-05iST17#..G,X,Z198712-198911

MEDIUM BEIGE M,4H6

sub52119-20430

main52119-20470-08iST17#..LB198712-198911

SUPER WHITE 2,TRIM1#&040

sub52119-20430

main52119-20470-12iST17#..LB198712-198801

RED MAICA,3H4

sub52119-20430

main52119-20470-14iST17#..LB198712-198801

DARK BLUE MAICA M,8E9

sub52119-20430

main52119-20470-18iST17#..G,X,Z198712-198911

SUPER WHITE 2,TRIM4#&040

sub52119-20430

main52119-20470-18iST170..EXS198812-198911

sub52119-20430

main52119-20470-24iST170..X198812-198911

sub52119-20430

main52119-20650-02iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

sub52119-20660

main52119-20650-03iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

sub52119-20660

main52119-20650-03iST17#..LB198911-199202

sub52119-20660

main52119-20650-04iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

sub52119-20660

main52119-20650-07iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

sub52119-20660

main52119-20650-07iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-198912

sub52119-20660

main52119-20650-08iST17#..LB198911-199202

sub52119-20660

main52119-20650-08iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

sub52119-20660

main52119-20650-12iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

sub52119-20660

main52119-20650-13iST17#..LB198911-199202

sub52119-20660

main52119-20650-13iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,SELS,SXR198911-199202

sub52119-20660

main52119-20650-14iST17#..LB198911-199202

sub52119-20660

main52119-20650-14iST17#..LB198911-198912

sub52119-20660

main52119-20660iAT17#,CT170,ST17#198911-199202

main52119-20670-02iCT170,ST17#..EXG,EXS,GTR,SXR198911-198912

sub52119-20650

main52119-20670-03iCT170,ST170..EXS,SELS;AT17#,ST171..EXG,GTR,SELS,SXR198911-199202

sub52119-20650

main52119-20670-03iST17#..LB198911-199202

sub52119-20650

main52119-20670-04iCT170,ST17#..EXG,EXS,GTR,SXR198911-198912

sub52119-20650

main52119-20670-07iST17#..LB198911-198912

sub52119-20650

main52119-20670-07iST17#..LB198911-198912

sub52119-20650

main52119-20670-08iST17#..LB198911-199202

sub52119-20650

main52119-20670-08iCT170,ST17#..EXG,EXS,GTR,SXR198911-199202

sub52119-20650

main52119-20670-12iCT170,ST17#..EXG,EXS,GTR,SXR198911-198912

sub52119-20650

main52119-20670-13iCT170,ST17#..EXG,EXS,GTR,SXR198911-199202

sub52119-20650

main52119-20670-13iST17#..LB198911-199202

sub52119-20650

main52119-20670-14iCT170,ST17#..EXG,EXS,GTR,SXR198911-198912

sub52119-20650

main52119-20670-14iST17#..LB198911-198912

sub52119-20650

main52119-94700iST171..4FC..EXG199005-199007

52123DPLATE, FRONT BUMPER REINFORCEMENT

main52123-20060iAT17#,CT17#,ET176,ST17#198712-199211

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20080iAT17#,CT17#,ET176,ST17#198712-199211

main52521-20120iAT17#,CT170,ST17#198911-199202

52711MOULDING, FRONT BUMPER

main52711-20160iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main52711-20160iCT176..5F198911-199211

main52711-20170iAT170,CT176,ET176..(DX,STD)..(CBR,DSL)198712-199211

main52711-20240iAT17#,CT170,ST17#198911-199202

9010906135

main90109-06135

9011906484

main90119-06484

9011912007

main90119-12007

9015950050

main90159-50050

9015950110

main90159-50110

9017906086

main90179-06086

9017906156

main90179-06156

9018905104

main90189-05104

17 parts on this diagram · 2 diagrams in section
