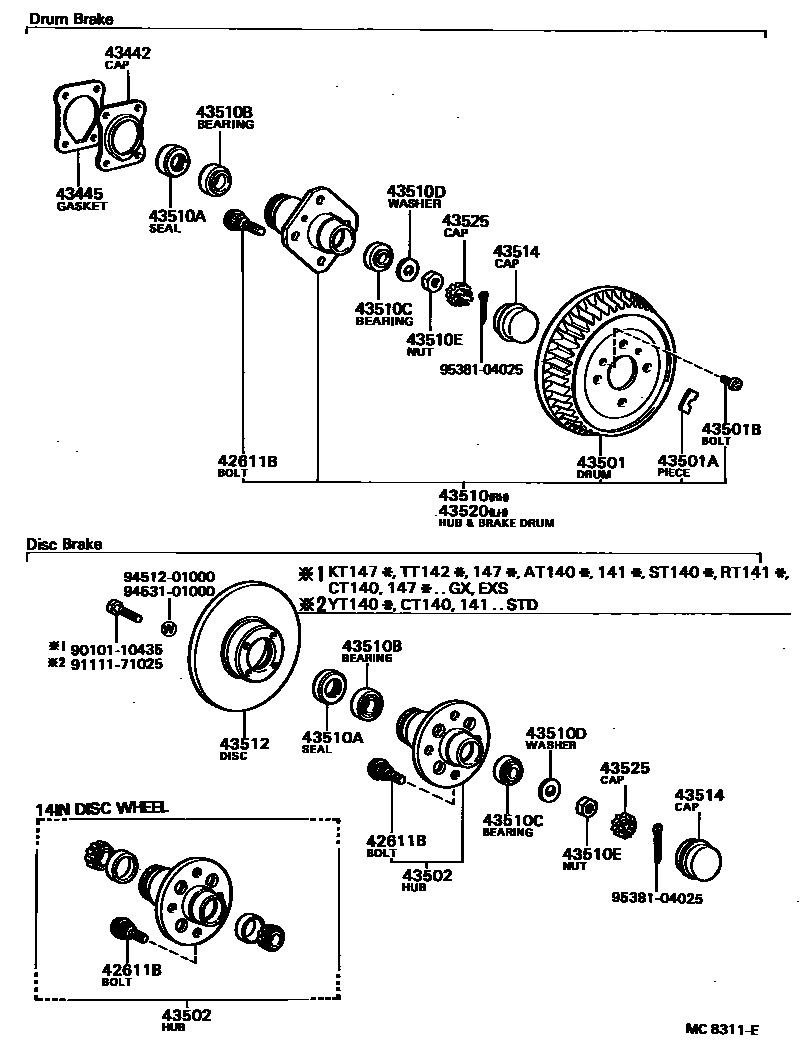

Toyota CORONA — FRONT AXLE HUB
42611BBOLT, HUB (FOR FRONT AXLE)
FR DRUM BRAKE
FR DISC BRAKE
FR DRUM BRAKE
FR DISC BRAKE
43442CAP, KNUCKLE GREASE RETAINER, INNER
43445GASKET, KNUCKLE GREASE RETAINER CAP
43501DRUM SUB-ASSY, FRONT BRAKE
43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)
43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)
43502HUB SUB-ASSY, FRONT AXLE
43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510ASEAL, OIL (FOR FRONT AXLE HUB)
NOK
NSK
43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)
43510ENUT (FOR STEERING KNUCKLE)
43512DISC, FRONT
VENTILATED DISC
43514CAP, FRONT HUB GREASE
43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43525CAP, FRONT WHEEL ADJUSTING LOCK
9010110435
main90101-10435
9111171025
main91111-71025
9451201000
main94512-01000
9453101000
main94531-01000
9538104025
main95381-04025
22 parts on this diagram · 1 diagram in section
FRONT AXLE HUB for Toyota CORONA
This section contains 22 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CORONA. Key components include: BOLT, HUB (FOR FRONT AXLE), CAP, KNUCKLE GREASE RETAINER, INNER, GASKET, KNUCKLE GREASE RETAINER CAP, DRUM SUB-ASSY, FRONT BRAKE, PIECE, BALANCE (FOR FRONT BRAKE DRUM).
