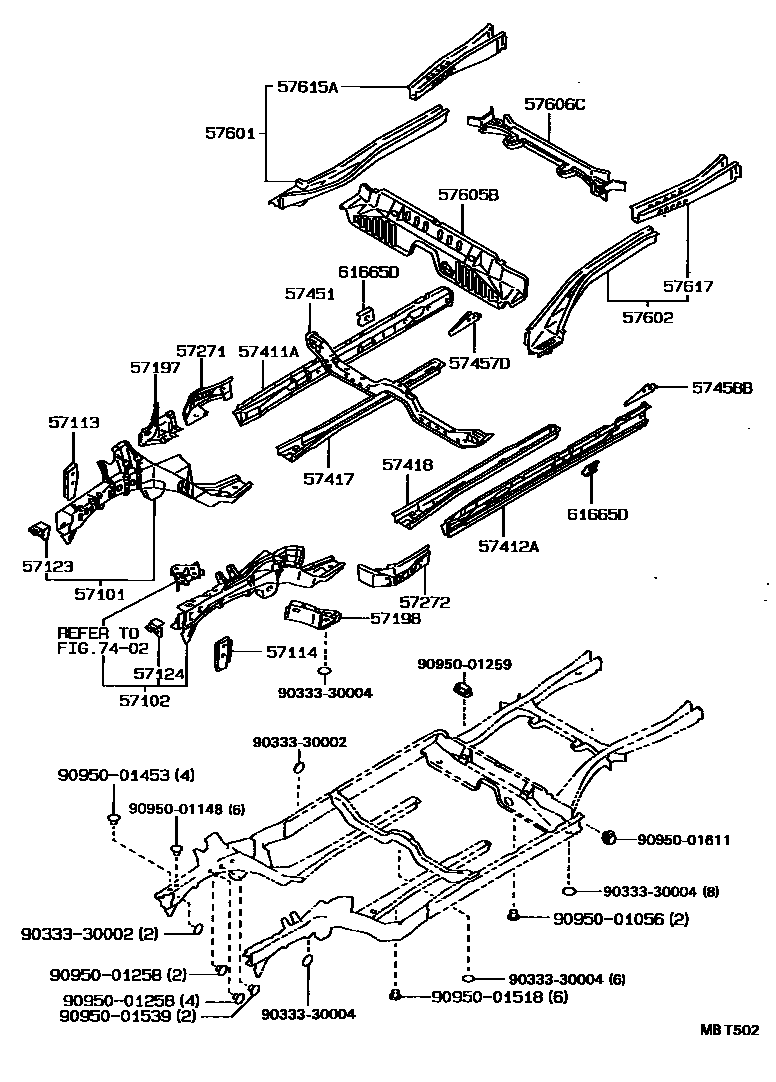

Toyota CORONA — FLOOR SIDE MEMBER

0001 1 0002 1(9006- )�-��- �-�- 0003 1 0004 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20600iAT170198712-198801

sub57101-20905

main57101-20610iST17#198712-198801

sub57101-20906

main57101-20620iCT170198712-198801

sub57101-20907

main57101-20670iAT175198808-199202

main57101-20905iAT170198801-199202

main57101-20906iST17#198801-199202

main57101-20907iCT17#,ET176198712-199211

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20570iAT170198712-198801

sub57102-20902

main57102-20580iST17#198712-198801

sub57102-20903

main57102-20590iCT170198712-198801

sub57102-20904

main57102-20690iAT175198808-199202

main57102-20902iET176198712-199211

main57102-20903iST17#198801-199202

main57102-20904iCT17#198712-199211

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-20110iAT17#,CT17#,ET176,ST17#198712-199211

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-20090iAT17#,CT17#,ET176,ST17#198712-199211

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-20030iAT17#,CT17#,ET176,ST17#198712-199211

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-20030iAT17#,CT17#,ET176,ST17#198712-199211

57197BOX, TORQUE, FRONT RH

main57197-20030iAT170,CT17#,ET176,ST17#198712-199211

57198BOX, TORQUE, FRONT LH

main57198-20030iAT170,CT17#,ET176,ST17#198712-199211

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-20020iAT170,CT17#,ET176,ST17#198712-199211

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-20020iAT170,CT17#,ET176,ST17#198712-199211

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-20070iAT17#,CT17#,ET176,ST17#198712-199211

main57411-94700iST171..4FC..EXG199005-199007

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-20170iAT170,CT17#,ET176,ST17#198712-199211

main57412-20190iAT175198808-199202

main57412-94700iST171..4FC..EXG199005-199007

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iAT175198808-199202

main57417-20050iAT170,CT17#,ET176,ST17#198712-199211

main57417-94700iST171..4FC..EXG199005-199007

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iAT175198808-199202

main57418-20050iAT170,CT170,ST17#198712-199202

sub57418-95500

main57418-94700iST171..4FC..EXG199005-199007

main57418-95500iCT176,ET176198712-199211

57451MEMBER, FRONT FLOOR CROSS

main57408-20010iAT170,CT17#,ET176,ST17#198712-199211

main57408-20070iAT175198808-199202

57457DPATCH, FLOOR SIDE MEMBER, REAR RH

main57457-20040iAT17#,CT17#,ET176,ST17#198712-199211

57458BPATCH, FLOOR SIDE MEMBER, REAR LH

main57458-20030iAT17#,CT17#,ET176,ST17#198712-199211

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20220iAT170,CT170,ST17#198712-199202

main57601-20290iAT175198808-199202

main57601-95502iCT176,ET176198712-198905

sub57601-95504

main57601-95504iCT176,ET176198905-199211

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20220iAT170,CT170,ST17#198712-199202

main57602-32100iAT175198808-199202

main57602-95502iCT176,ET176198712-198905

sub57602-95504

main57602-95504iCT176,ET176198905-199211

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20070iAT170,CT170,ST17#198712-199202

main57605-32040iAT175198808-199202

main57605-95501iCT176,ET176198712-199211

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-95500iAT170,CT170,ST17#198712-199202

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20905iAT170,CT170,ST17#198712-199202

main57615-20906iAT175198808-199202

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-20905iAT170,CT170,ST17#198712-199202

main57616-32909iAT175198808-199202

61665DPLATE, SAFETY BELT ANCHORAGE

main61665-22010iAT17#,CT17#,ET176,ST17#198712-199211

7402

9033330002

main90333-30002

9033330004

main90333-30004

9095001056

main90950-01056

9095001148

main90950-01148

9095001258

main90950-01258

9095001259

main90950-01259

9095001453

main90950-01453

9095001518

main90950-01518

9095001539

main90950-01539

9095001611

main90950-01611

35 parts on this diagram · 4 diagrams in section
